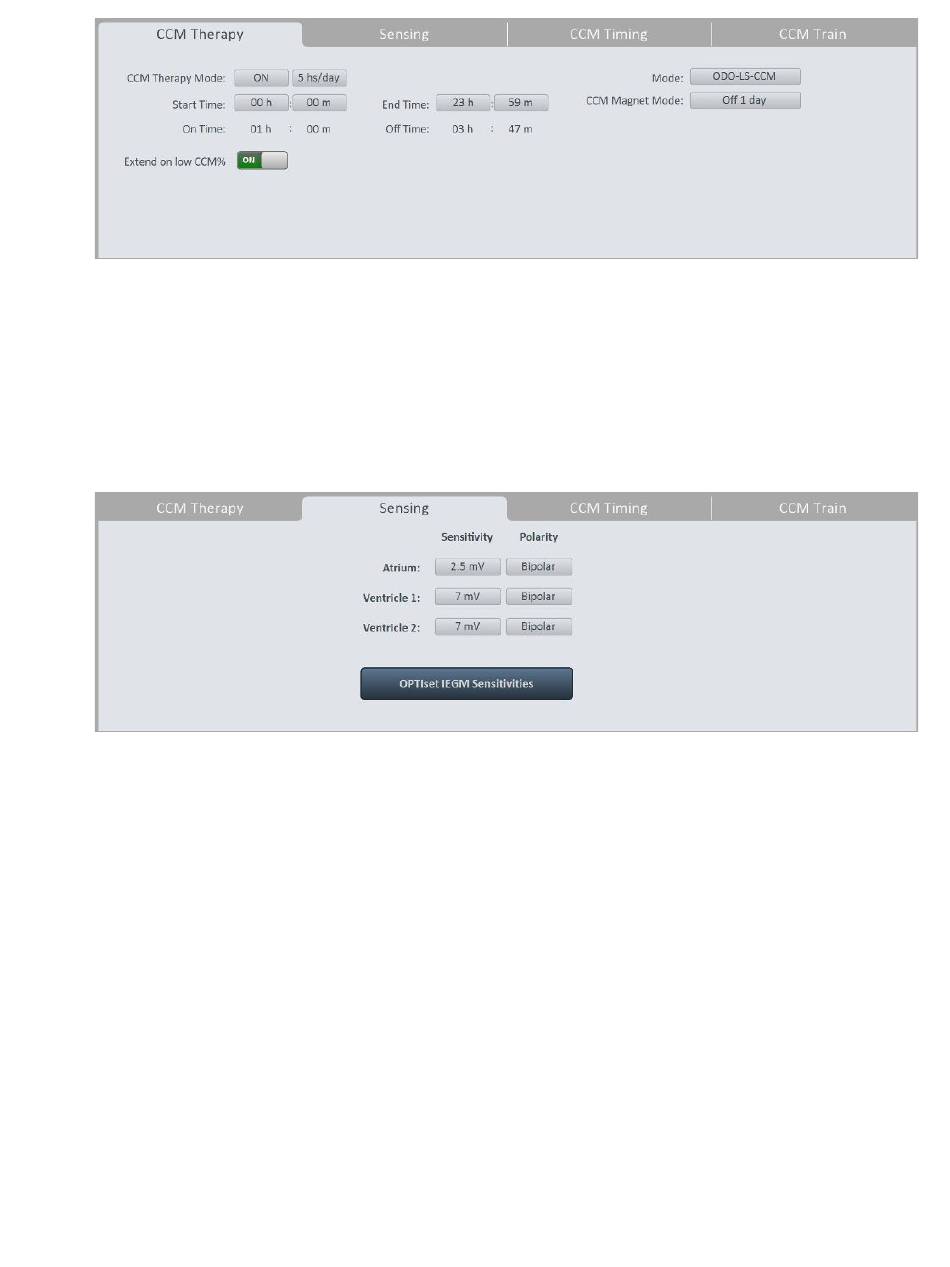

Figure 20: CCM Therapy Panel
3.1.6.2.2 Sensing
The Sensing tab contains the following parameters for each lead:
•
Sensitivity
•
Polarity
This tab also has the OPTIset IEGM Sensitivities button, which allows
the user to let the application analyze the patient's heart rhythm and
recommend the best sensing parameter setting for each lead.
Figure 21: Sensing Panel
3.1.6.2.3 CCM Timing
The CCM Timing tab contains the following parameters categories and
their associated parameters:
•
A/V REFRACTORIES
Post-V Atrial Refractory
o
Post-V Ventricular (RV) Refractory
o
•
CCM INHIBIT
CCM Inhibit Cycles
o
AV Limits
o

Short

Long
Tracking
o
•
TIMING ALGORITHM
LS Channel assignment
o
LS Alert Start
o
LS Alert Width
o
