Undo: When parameter values are modified and then programmed into the
OPTIMIZER Smart Mini IPG, it allows the user to reprogram the OPTIMIZER
Smart Mini IPG with the previously programmed values.
•
Program: Transmits the current parameter values of the Optimizer Smart Mini
Programmer application to the OPTIMIZER Smart Mini IPG. This button is
disabled when parameter modifications result in a parameter conflict.

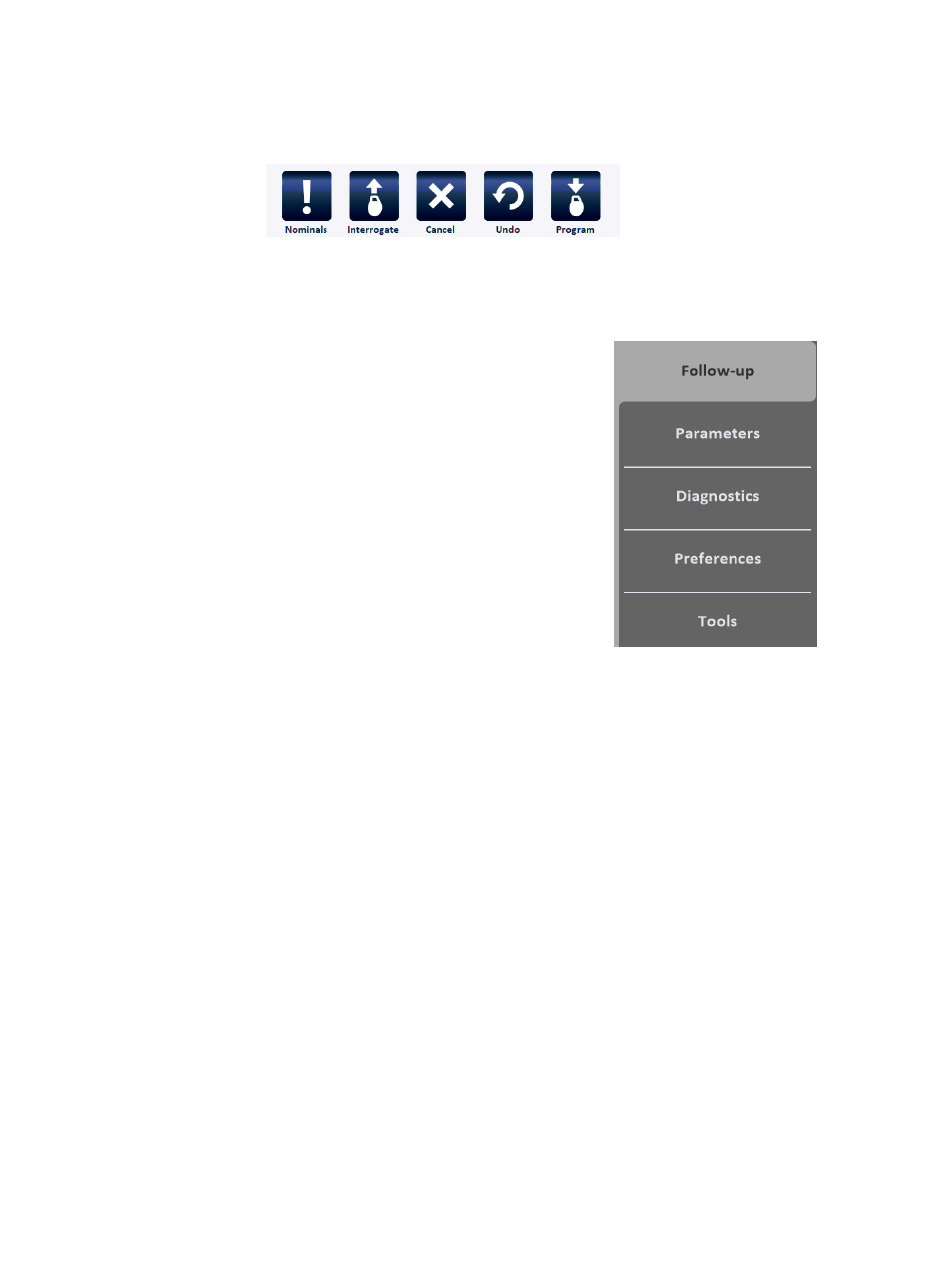

Figure 15: Programming Buttons Pane
Note: When a command button appears grayed out on a Programming Buttons Pane,
this indicates that the command is not currently available.
3.1.6 Menu Bar
The Menu Bar contains the following buttons:
•
Follow-up
•
Parameters
•
Diagnostics
•
Preferences
•
Tools
When selected, each button displays a different menu with its own set of tabs.
3.1.6.1 Follow-up Menu
The Follow-up Menu contains the following tabs, each displaying a panel
containing information about the current status of the OPTIMIZER Smart Mini
IPG.
3.1.6.1.1
The Summary tab displays the following information:
•
•
•
•
•
Summary
Implant Date: This date is dependent on the implant date
information entered on the Implant Data screen
Last Follow-up date: Shows the last time the Optimizer Smart
Mini Programmer application established a successful link with
the OPTIMIZER Smart Mini IPG
Battery bar: Shows the current voltage of the battery in the
OPTIMIZER Smart Mini IPG
Discharges: Indicates the number of discharge episodes
experienced by the battery in the OPTIMIZER Smart Mini IPG
V1 Lead
Serial number (SN)
o
V1 Impedance (if measured)
o
R-wave Amplitude (if measured)
o
16
Figure 16: Menu Bar
