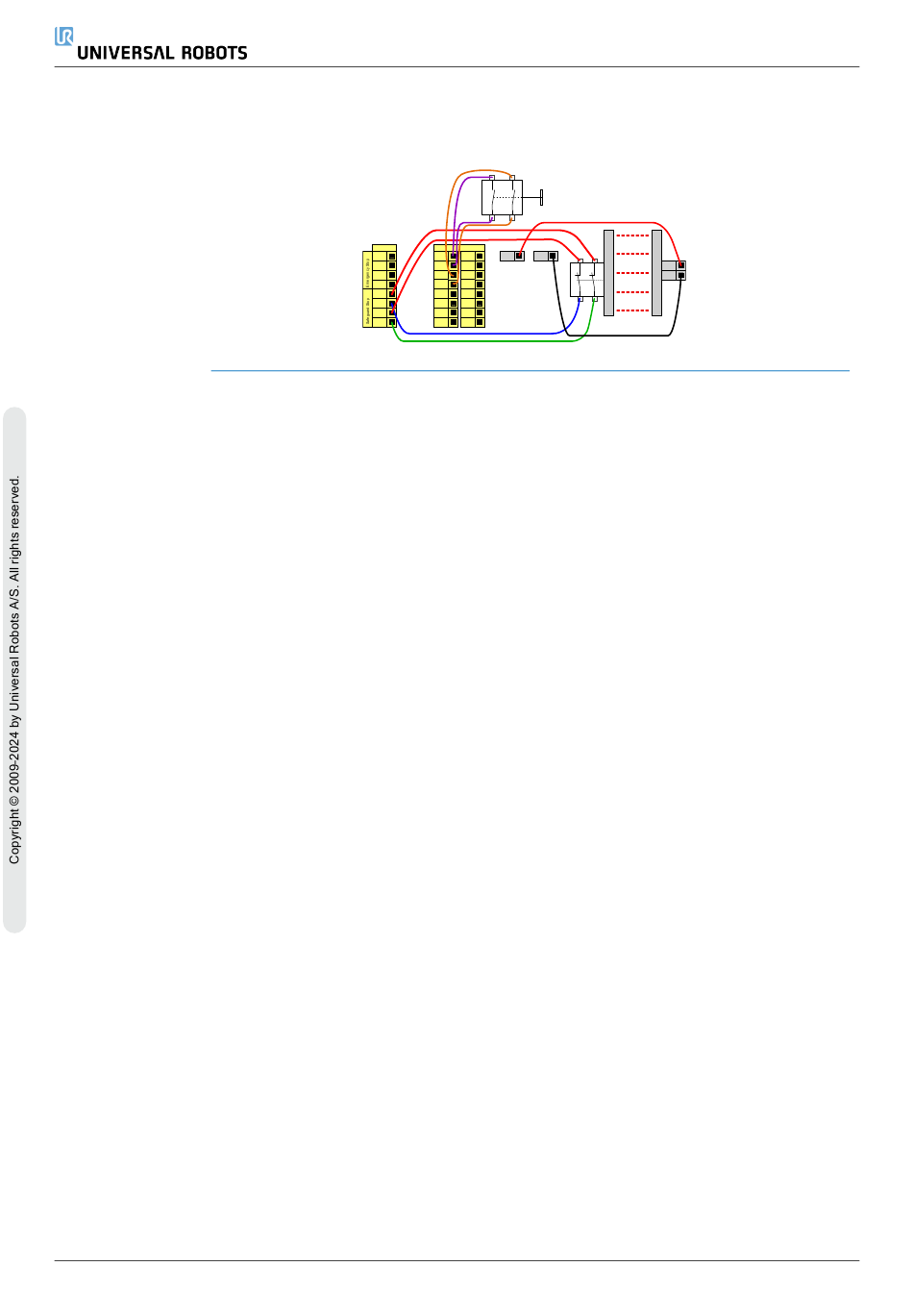

Safeguard If the safeguard interface is used to interact with a light curtain, a reset outside the safety
Stop with perimeter is required. The reset button must be a two channel type. In this example the I/O
reset button configured for reset is CI0-CI1.
UR30 PolyScope X
Safety
Configurable7Inputs
24V 0V
24V 24V 24V
EI0 CI0 CI4
24V 24V 24V
EI1 CI1 CI5
24V 24V 24V
SI0 CI2 CI6
24V 24V
24V
SI1 CI3 CI7
