3 Components and Power Supply

3.5 RST button

The different RST button features are described below.

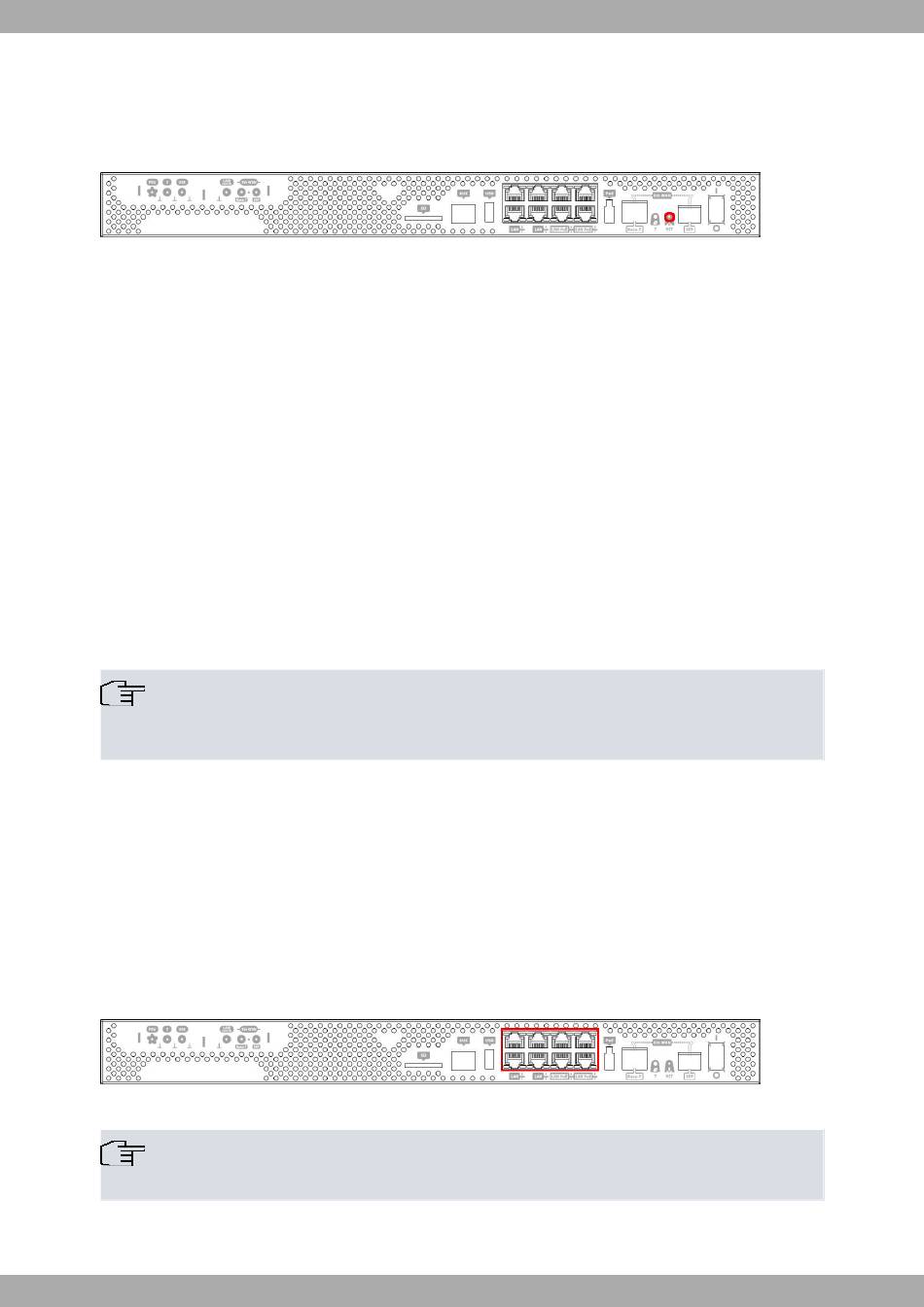

RST button
Fig. 5:

3.5.1 Rebooting the device

Once the device is operating normally, pressing the RST button will force a restart.

3.5.2 Default configuration

The RST button allows you to boot the device with its default configuration through the following steps:
• With the device switched off, press and hold the RST button down while you turn on the router using the ON/OFF
switch (1).
• The PSU LED (green) will light up and LED 'S' will begin to blink (amber). It will carry on blinking for 10 seconds.
• To boot the device with the default configuration, let go of the RST button while LED 'S' is still blinking (i.e., before
the 10-second period expires).
The default configuration sets up the device with the following IP address and mask:
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
Note
Some devices leave the factory with customized settings. This personalization can mean your router's
default configuration is different from the one shown above.

3.6 Connecting the data

The Teldat iM8-Cx router has the following data connections.

3.6.1 8-port Ethernet switch

The Teldat iM8-Cx router incorporates an 8-port 10/100/1000 Base-T Switch with automatic MDI/MDIX to connect to
a local area network (LAN).
Please pay careful attention to the labeling to avoid mixing up this switch with other port types:
LAN switch PORTS
Fig. 6:
Note
During booting and in BIOS mode, only the LAN 1 connector is available.
