- Page 1 Manual Teldat S.A. Teldat Router M1/M1L Installation Manual Copyright© Teldat Dm569-I Version 8.3 09/2017 Teldat S.A. Teldat Router M1/M1L...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Chapter 2 Teldat M1 / Teldat M1L Devices ......4 Characteristics ........ - Page 4 USB Connector........A.5.6 Configuration Connector ....... . Teldat Router M1/M1L...
- Page 5 RF GSM/WCDMA Specifications ......WIFI Specifications ........Teldat Router M1/M1L...
- Page 6 Table of Contents Teldat S.A. Teldat Router M1/M1L...
-
Page 7: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat Dm748-I Software Updating Teldat Router M1/M1L... -
Page 8: Chapter 1 About This Guide
1 About This Guide Teldat S.A. Chapter 1 About This Guide This installation guide for the Teldat M1 router family contains information on how to correctly install the device in a working environment. 1.1 Supported Devices The information provided in this installation guide only applies to the Teldat M1 router family. - Page 9 1 About This Guide Teldat S.A. Fax: +34 918 076 566 Email: support@teldat.com Teldat Router M1/M1L...
-
Page 10: Chapter 2 Teldat M1 / Teldat M1L Devices
2.1.2 Hardware Monitoring The only way to monitor the Teldat M1 router family hardware is through the LEDs on the front panel. The LEDs provide visual information on the state of the device. They indicate the condition of the hardware components, if there is connectivity, data flow, etc. -
Page 11: Chapter 3 Components And Power Supply
3 Components and Power Supply Teldat S.A. Chapter 3 Components and Power Supply The following chapter provides detailed information on the chassis of the Teldat M1 router family and its compon- ents. This information includes: • Components. • Information on assembly. - Page 12 • Slow blinking. GSM connection (GPRS). • Steady. WCDMA (UMTS / HSDPA) connection. Green -> connected. Blinking: con- nection data activity. Coverage Monochrome Blue Indicates the coverage level the in- ternal 3G module has. Level from 0 Teldat Router M1/M1L...
-
Page 13: Rear Panel

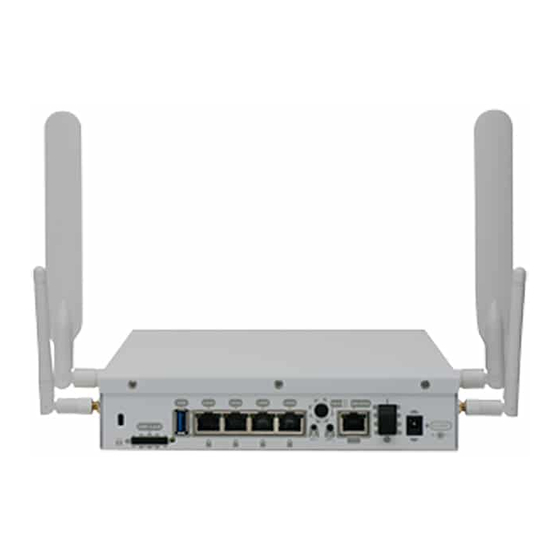

(1, 2, 3, 4) (all the LEDs off) to 4 (all lit up). 3.1.2 Rear Panel The following figure shows the rear panel. Here you will find the majority of the Teldat M1 router family connectors. Rear panel Fig. 2:... -
Page 14: Underside Panel
Adhesive rubber feet (these are not required if mounted in a rack). 3.2 Expansion Slot The Teldat M1 router family has an expansion slot, so you can increase its features and interfaces by inserting differ- ent cards or boards. This slot is located on the router’s front panel, as shown in Figure 6: Expansion slot Fig. - Page 15 (making sure you don't damage it during the tightening process). Please see Fig. 8 on page 9. Placing the expansion card Fig. 8: (6) Finally, insert the tray into the device once again using the appropriate guides. See Fig. 9 on page 10. Teldat Router M1/M1L...
-
Page 16: Installation In A Rack
(8) Connect a terminal to the console and check that the device detects the expansion card. 3.3 Installation in a rack The Teldat M1 device family can be installed in a 19” rack. The strips and screws needed are not provided by default and need to be acquired separately. -
Page 17: Wall Mounting
3.3.2 Wall mounting The Teldat M1 can be mounted on the wall. This optional kit can be ordered separately or together with the Teldat The anchors to mount the device on the wall must be installed as shown in the following figure, using the screws provided by the manufacturer. -
Page 18: Plug-In Modules
Fig. 13 on page 12. 3.5 Power Source The Teldat M1 router family is powered though an external AC/DC source. Workplace conditions. Main characteristics • Avoid humid and or dusty locations. • Direct exposure to sunlight, as well as other heat sources, should be avoided. The device should not be placed amongst papers, magazines or other elements that could hinder natural air circulation. -
Page 19: Connecting
Some devices leave the factory with customized settings. This personalization may mean that the de- fault configuration is different from the one shown above. 3.7 Connecting the data The Teldat M1 router family has the following data connections. Teldat Router M1/M1L... -
Page 20: 4-Port Ethernet Switch
Cell connectors (located on the side panels of the router). Installing these antennas in the Teldat M1 router is essential in order to improve the quality of the signal received and transmitted by the cellular model. - Page 21 The router must have the corresponding software license installed for the cellular interface to work. Some cellular telephony technologies use the antenna diversity technique to improve the quality of the signal re- ceived (HSUPA, CDMA EV-DO, etc.). Due to this, the Teldat M1 router family is equipped with several WWAN con- nectors:...
-
Page 22: Wireless Lan Antenna Connection (Wi-Fi Connectors)
3G USB Connector Fig. 21: 3.7.6 Connecting for Configuration The Teldat M1 router has an RJ45 female connector on the front panel known as “ Aux .” , which provides access to the device local console. For further information, please see Connecting to the device on page 27. -
Page 23: Installing The Sim Card
3.8 Installing the SIM card The Teldat M1 family has a Wireless WAN interface that, in order to operate, may require a SIM card to be inserted into the device. Certain services (CDMA) provided by several carriers in some countries do not require SIM cards. - Page 24 (4) Return the tray to its original position. (5) While pressing on the tray, push the fastening towards the direction indicated by the word LOCK until it is firmly in place. Inserting the SIM in the internal tray Fig. 26: Teldat Router M1/M1L...
-
Page 25: Chapter 4 Compliance
Chapter 4 Compliance 4.1 Manufacturer Information Brand Teldat Manufacturer Teldat S.A. Country Spain Postal Address Isacc Newton, 10 Parque Tecnológico de Madrid, 28760 Tres Cantos, Madid, Spain International Phone +34 91 807 65 65 4.2 Safety Warnings Teldat Router M1/M1L... - Page 26 4 Compliance Teldat S.A. Connecting Disconnecting Teldat Router M1/M1L...
- Page 27 4 Compliance Teldat S.A. Teldat Router M1/M1L...
- Page 28 4 Compliance Teldat S.A. Teldat Router M1/M1L...
-
Page 29: Weee Information
0.1% weight by weight (w/w). This declaration will be updated whenever- any changes occur or other chemical substances are added to the REACH Candidate List. Information is cur- rentlyprovided to consumers upon request. Teldat Router M1/M1L... -
Page 30: Ec Declaration Of Conformity
—Directive 2014/35/EU (LVD) replaces Directive 2006/95/EC (LVD) on 20th April 2016. The EC declaration of conformity and additional product documentation can be accessed here: http://www.teldat.com 4.6 CE Marking This equipment is in conformity with the CE procedures and marking. Teldat Router M1/M1L... -
Page 31: National Restrictions
In accordance to article 10 of 2014/53/EU we inform you that there may be national restrictions and requirements for authorization. The requirements for any country may evolve. Teldat S.A. recommends that you check with local au- thorities for the latest status of their national regulations. -
Page 32: Ic Statement
This device and its antennas(s) must not be co-located or operating in conjunction with any other antenna or trans- mitter except in accordance with IC multi-transmitter product procedures. Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur. Teldat Router M1/M1L... -
Page 33: Appendix A Technical Information
A.3 Connecting to the device A.3.1 Connecting using the local console (Aux connector) The Teldat M1 router has an RJ45 female connector on the front panel known as “ Aux .” , which provides access to the device local console. -
Page 34: Licenses
Fig. 29: A.4 Licenses The Teldat M1 router family offers a series of licenses among which the following stand out: WiFi: Activation license for the WLAN 802.11bgn. USB: Activation license for the USB port to be used for the WWAN modems. -
Page 35: Lan Connector
BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.5.2 WAN Connector RJ45 WAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.5.3 WWAN Connector (female) Internal RF in/out External Teldat Router M1/M1L... -
Page 36: Wlan Connector (Male)
A.5.4 WLAN Connector (male) Internal RF in/out External A.5.5 USB Connector USB Type A DATA- DATA+ Shell Shield A.5.6 Configuration Connector RJ45 CONFIGURATION RJ45 PIN CONF A.5.7 Power Supply Connector Internal POSITIVE External NEGATIVE A.6 Technical Specifications Teldat Router M1/M1L... -
Page 37: Hardware Architecture
Depends on the type of Wireless WAN module. Please see the antenna catalog for Cellular interfaces. A.6.5 Wireless LAN Interface STANDARDS 802.11abgn. FREQUENCY 2.4 GHz / 5 GHz. SPEED Depends on the Wireless LAN module. CONECTOR Up to 3 RF RP-SMA female. Teldat Router M1/M1L... -
Page 38: Usb Interface
Technical Information Teldat S.A. A.6.6 USB Interface 3G USB MODEMS Please see the Teldat website http://www.teldat.com to get a list of the supported 3G USB modems. SPEED The interface complies with the USB 2.0 (480 Mbps) standard; the end speed de- pends on the 3G USB modem used. -
Page 39: Radio Information
The GSM/WCDMA equipment model with the MC8705 module provides WCDMA, GSM, GPRS, EDGE network con- nectivity over several radio frequency bands under 3GPP Standards. This product is supplied with antennas YWX-6221SAX9-508. To comply with the regulations, do not choose other antennas. Technology: UMTS(WCDMA) Teldat Router M1/M1L... -
Page 40: Wifi Specifications
802.11n (HT40) @ 5 GHz 8 Channels Average EIRP Power @ 2.4 2.4 GHz 802.11b @ 1 Mbps (tolerance ± 1 dBm) 2412 ~ 2472 MHz: +19 dBm EIRP - Output Power @ 5 GHz 802.11g @ 6Mbps Teldat Router M1/M1L... - Page 41 802.11n (HT20) MCS0 2412 ~ 2472 Mhz: +19 dBm 802.11n (HT40) MCS0 2422 ~ 2462Mhz: +19 dBm 5 GHz 802.11a @ 6 Mbps 5150 ~ 5725: +22 dBm 802.11n (HT40) at MCS0 5150 ~ 5725: +22 dBm Teldat Router M1/M1L...
