3 Components and Power Supply
place has an uninterrupted power supply system (UPS), a regulated supply or is independent of other
power supplies (such as lighting, etc.). This will help prevent malfunctions and premature aging of the
drivers and other components.
There is no on/off switch or fuse. The electrical rating is printed on a label found on the rear of the device.

3.4 RST button

The different RST button features are described below.

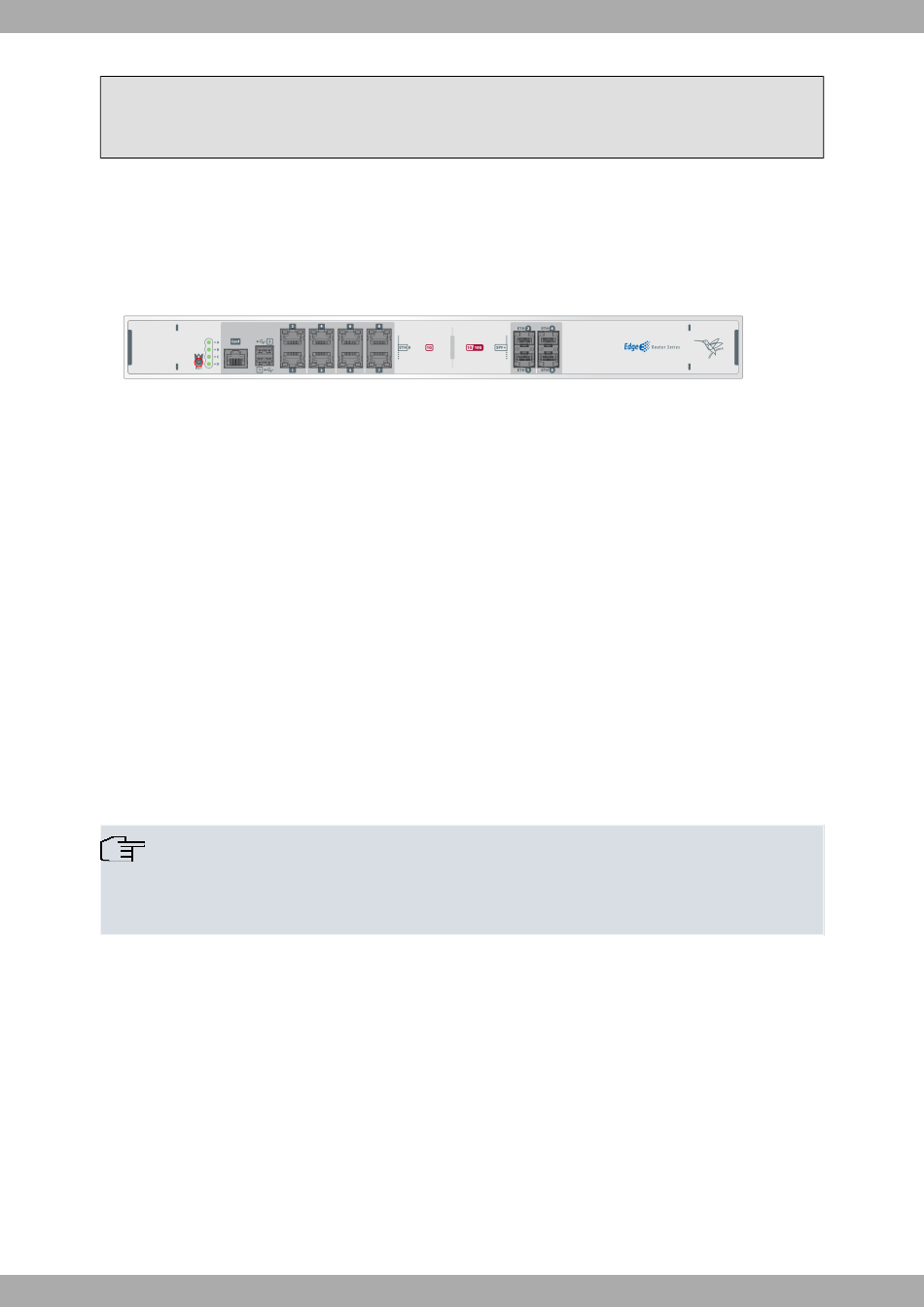

RST button
Fig. 11:

3.4.1 Rebooting the device

Once the device is operating normally, pressing the RST button will force a restart.

3.4.2 Default configuration

The RST button allows you to boot the device with its default configuration through the following steps:
• With the device switched off, keep the RST button pressed until the device switches on.
• The A LED (green) will begin to blink. This blinking will continue for 10 seconds.
• For the device to boot with the default configuration, release the Reset button while the A LED is blinking (i.e., be-
fore the 10-second period expires).
Once the default configuration is running, the router's default configuration establishes the following access IP and
mask address:
• IP address: 192.168.0.1
• IP mask: 255.255.255.0
Note
Some devices leave the factory with customized settings. This personalization means your router's de-
fault configuration (and that of the embedded access point, where applicable) may be different from the
one shown above.

3.5 Connecting the data

The Atlas-840 router has the following data connections.

3.5.1 8-port Ethernet switch connections

The Atlas-840 router incorporates an 8-port 10/100/1000 Base-T Switch with automatic MDI/MDIX to connect to a
local area network (LAN).
Please pay careful attention to the labeling to avoid mixing up this switch with other port types:
10
Teldat S.A.
Teldat Edge Router Atlas-840
