3.6.2.1 Laser information
Warning
Laser Radiation. Do not use optical instruments directly or without proper protection. CLASS 1 LASER
PRODUCT.
The SFP modules to be installed in the card socket should be class 1 devices that comply with the IEC/
EN 60825-1:2007 standard.

3.6.3 WAN 2.5G connection

The Teldat M2 router family has one 2.5 Gigabit Ethernet interface for WAN connection. This port has an RJ45 for a
10/100/1000/2500 Base-T link with automatic MDI/MDIX detection.
Please pay careful attention to the labeling to avoid mistaking these ports for other types of ports:

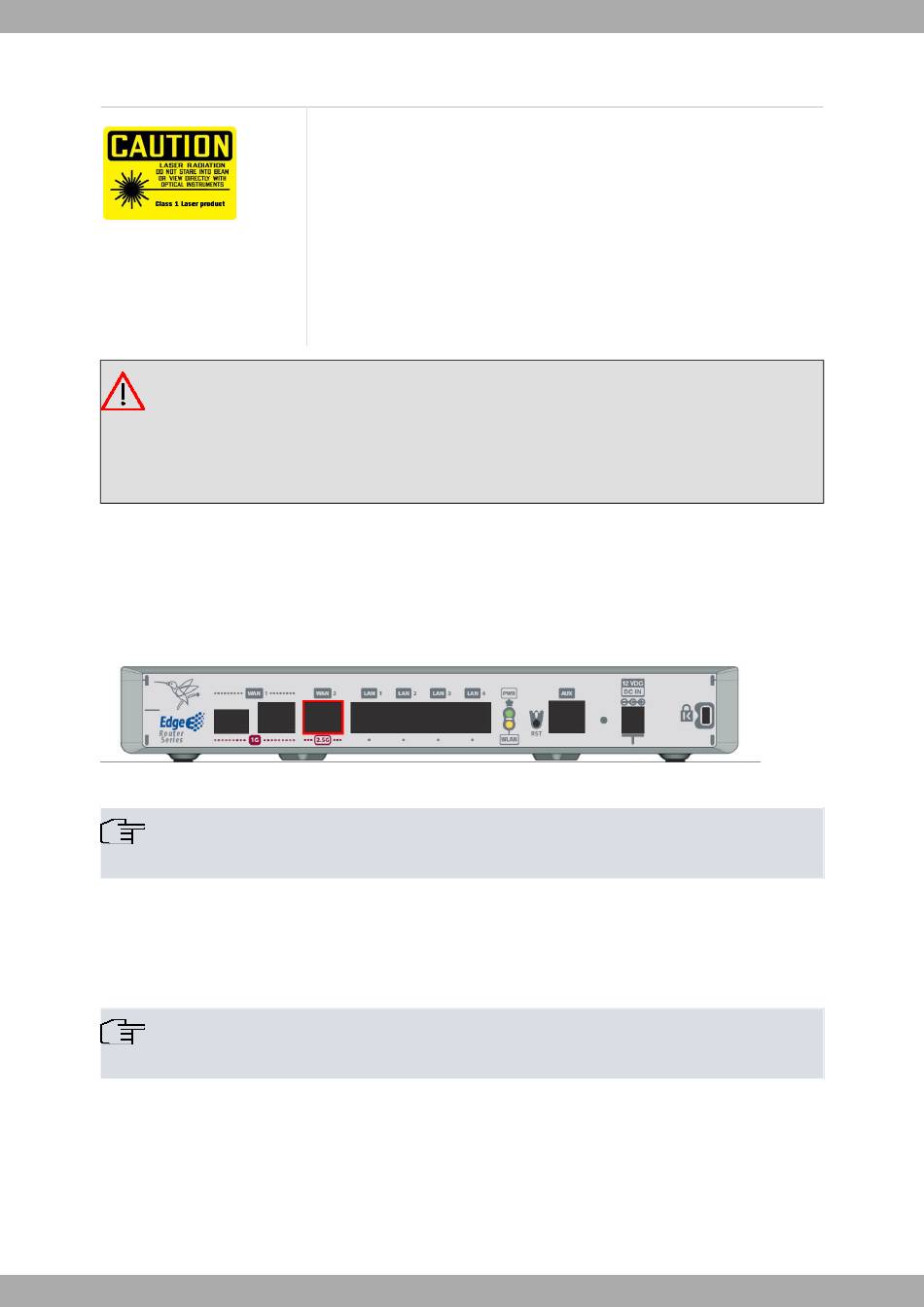

WAN 2.5G connector
Fig. 17:
Note
WAN-2 connector does not work during booting and in BIOS mode.

3.6.4 Wireless LAN internal antennas

The Teldat M2 router family has two integrated antennas for a Wireless LAN module covering both the 2.4 GHz and
5 GHz bands.
Note
The WLAN module is internal and is only available for the Wi-Fi models.

3.6.5 Connecting for configuration

The Teldat M2 router family has an RJ45 female connector on the front panel (labeled "AUX.") that provides access
to the device's local console.
For further information, please see
Teldat M2/M2L
Choose SFP transceivers that meet the following regulations
• Class 1
• IEC/EN60825-1:2007 2nd Edition or a later one, European standard
• FCC 21 CFR Chapter 1, Subchapter J (in accordance with FDA and CDRH re-
quirements)
• Application of CE marking in accordance with the 2014/30/EU EMC Directive
and the 2014/35/EU Low Voltage Directive
• UL and/or CSA registered component for North America
• 47 CFR Part 15, Class A
Connecting to the device on page 20.
