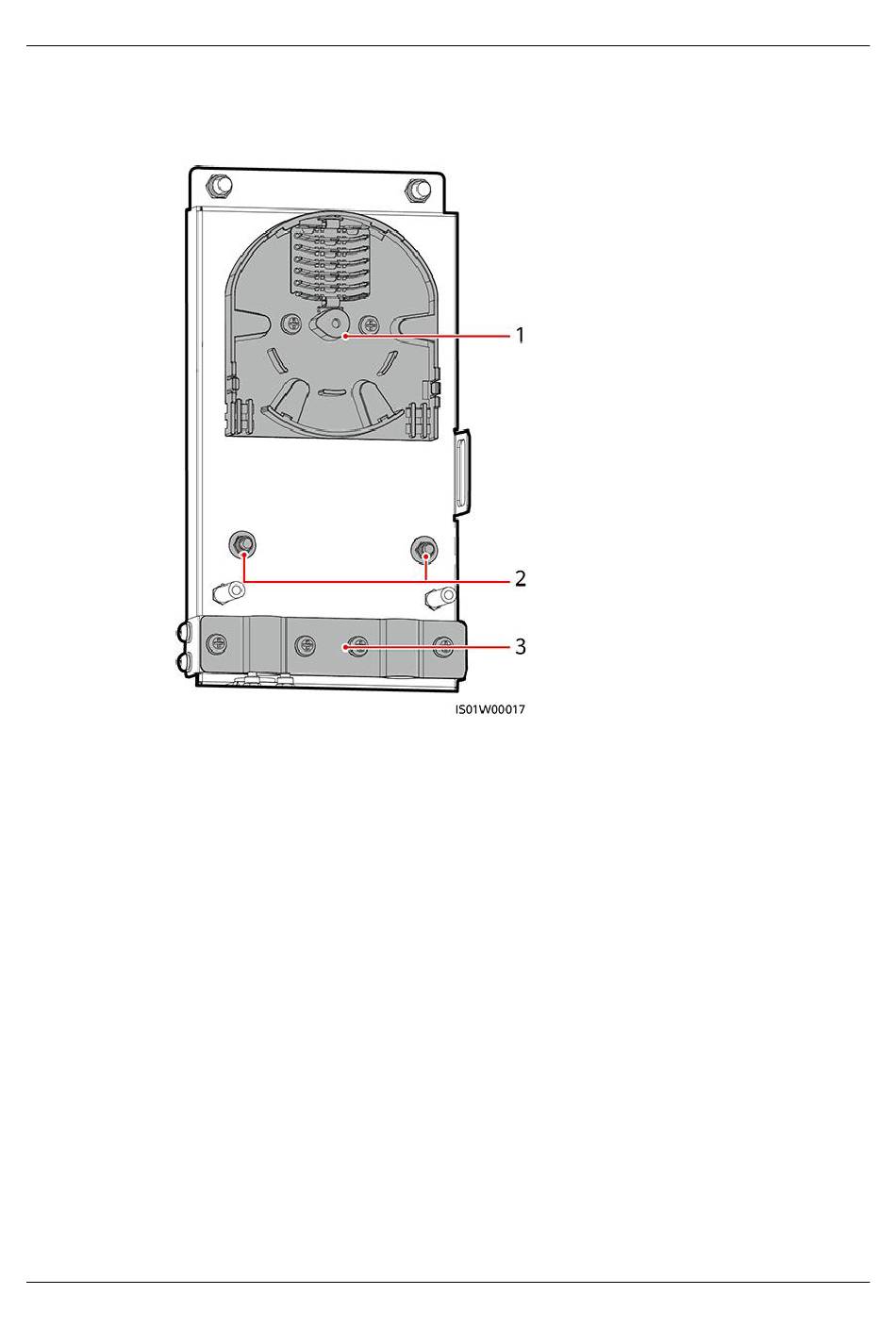

Figure 7-7 Access terminal box (ATB) interior
(1) Fiber spool

Installation Preparations

●
●
●
Procedure
Step 1 Open the ESS bottom sealing plate and remove the external mechanical parts of
the ATB.
Step 2 Remove the optical fiber cable fastener.
Step 3 Connect one end of the optical jumper to the fiber adapter.
Issue 01 (2024-07-31)
Optical module: ordered from the Company or purchased by yourself. Choose
100M or 1000M optical modules based on the peer port of the optical switch.
SFP or eSFP optical modules should be used. The transmission distance
supported by the 100M optical modules should be greater than or equal to 12
km, and the transmission distance supported by the 1000M optical modules
should be greater than or equal to 10 km.
Optical jumper: Purchase the auxiliary material package.
Adapter: Purchase the auxiliary material package.
Copyright © Huawei Digital Power Technologies Co., Ltd.
(2) Fixing points for internal
steel wires of optical fiber
cables
7 Installing Cables
(3) Cable clip
94
