Procedure
Step 1 Install the SmartLogger and push it into the preinstalled mounting bracket in the
ESS.
Step 2 Connect the SmartLogger power cable and communications cables in sequence.
Step 3 (Optional) Install the 4G antenna and SIM card, and install the 4G antenna on the
top of the cabinet. Perform this operation when 4G communication is used.
Step 4 Install the external protective cover for the SmartLogger.

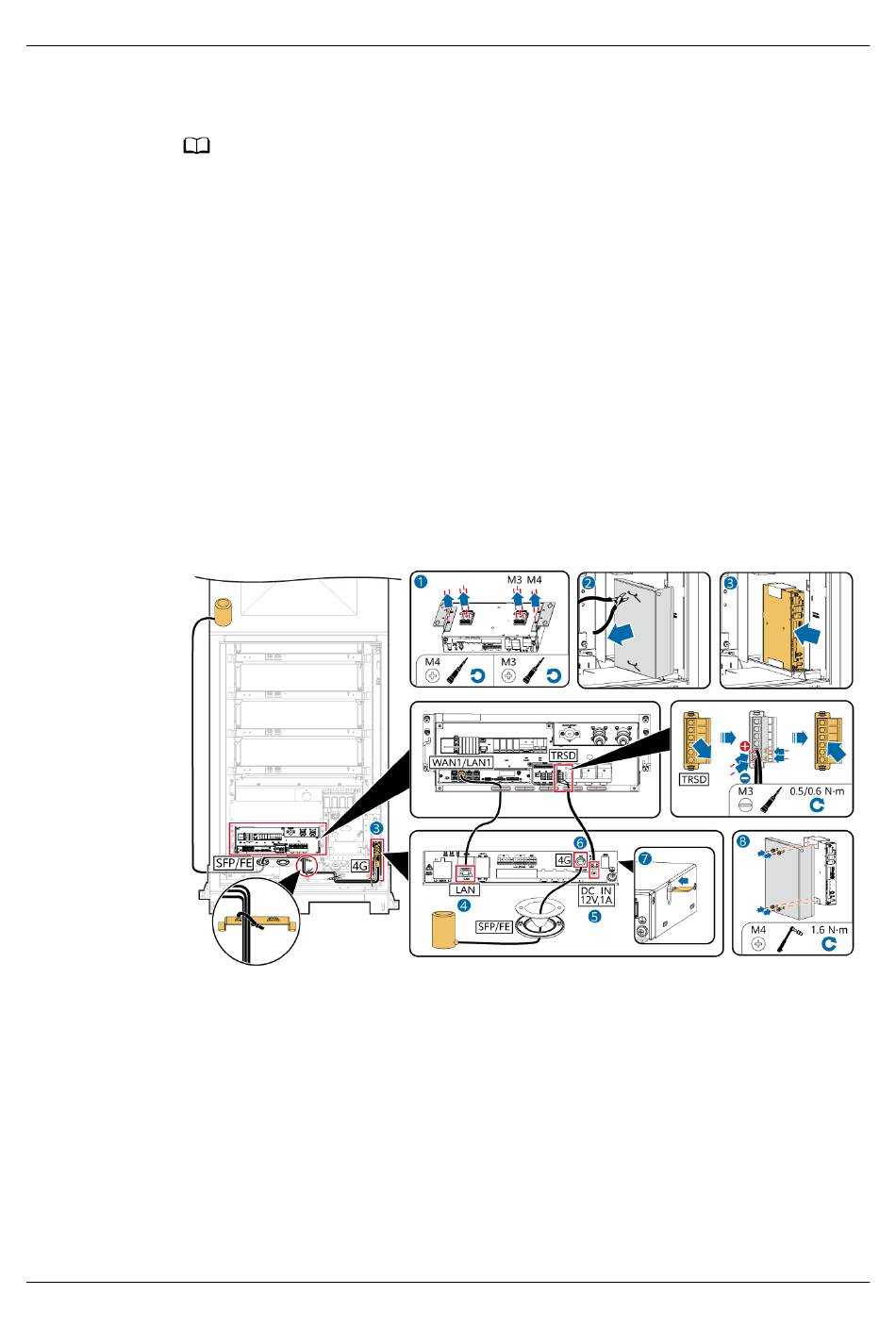

Figure 7-9 Connecting the SmartLogger communications cables
----End
Issue 01 (2024-07-31)
(Optional) 4G optical fiber cable: ordered from the Company or purchased by
yourself
NO TE
If the delivered network cables and optical fiber cables are too short, prepare cables by
yourself. For details about the cable specifications, see
The SmartLogger input power cable is used only when the SmartLogger is installed inside
the ESS in the single ESS scenario.
