2.4.2 Monitoring System

2.4.2.1 Monitoring System Overview

The LCC, BMU, and BCU monitor the ESS internal status, and the SmartLogger
monitors the ESS external environment.

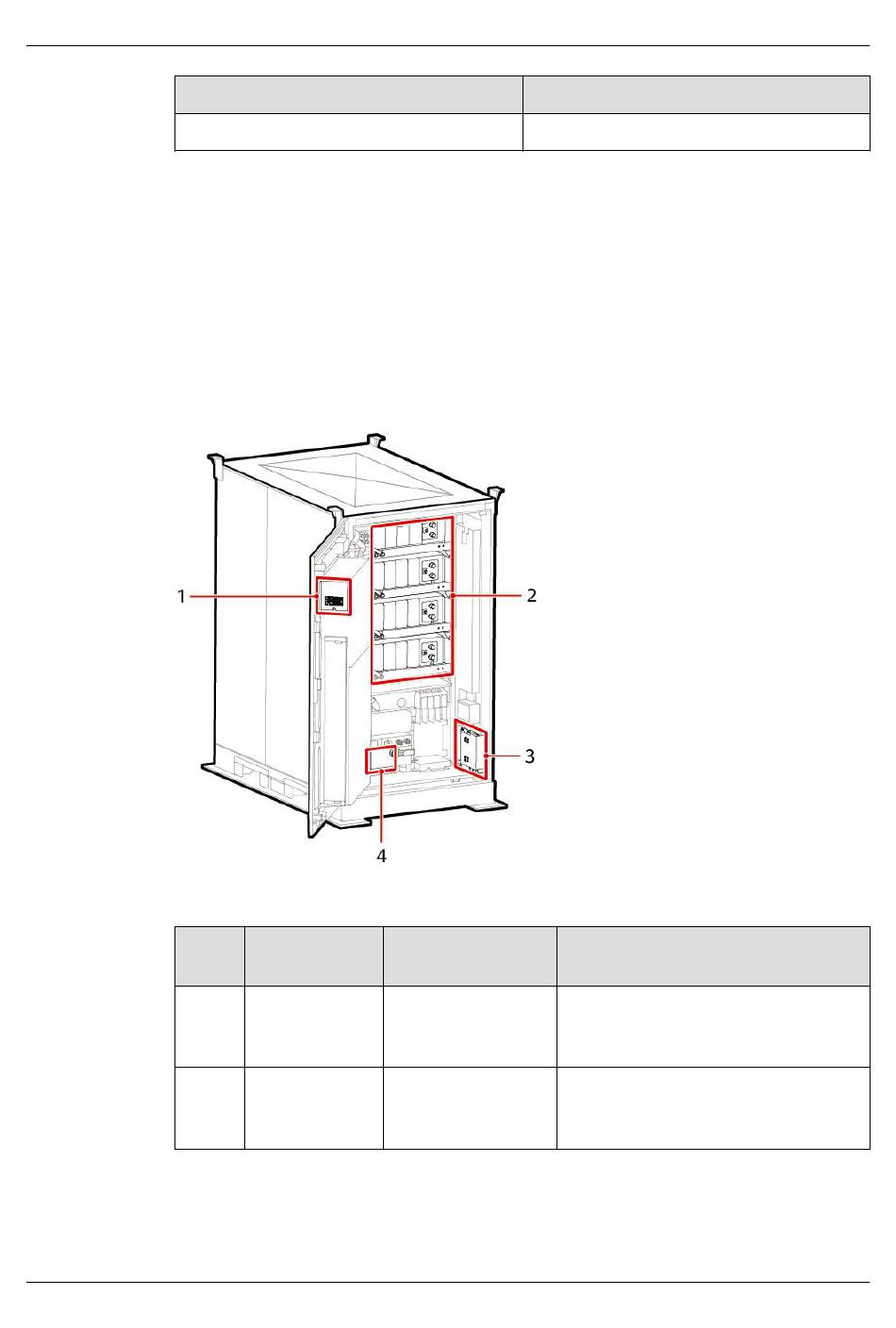

Figure 2-10 Positions of monitoring system components
Table 2-14 Component description
No.
1
2
Issue 01 (2024-07-31)
Item
LCC
Battery
Monitoring
Unit (BMU)
Copyright © Huawei Digital Power Technologies Co., Ltd.
RCM
IP20
Maximum
Quantity per ESS
1
16
Description
Manages the working mode of the
LTMS and adjusts the supply
coolant temperature.
Manages the voltage, current,
temperature, and energy of each
cell in a PACK.
