7.7 Installing PACK Cables

Step 1 Check that the PACK cables and cables to the BAT+ and BAT– terminals of the
RCM are securely connected and intact.
Step 2 Connect the general output power cables of PACKs.

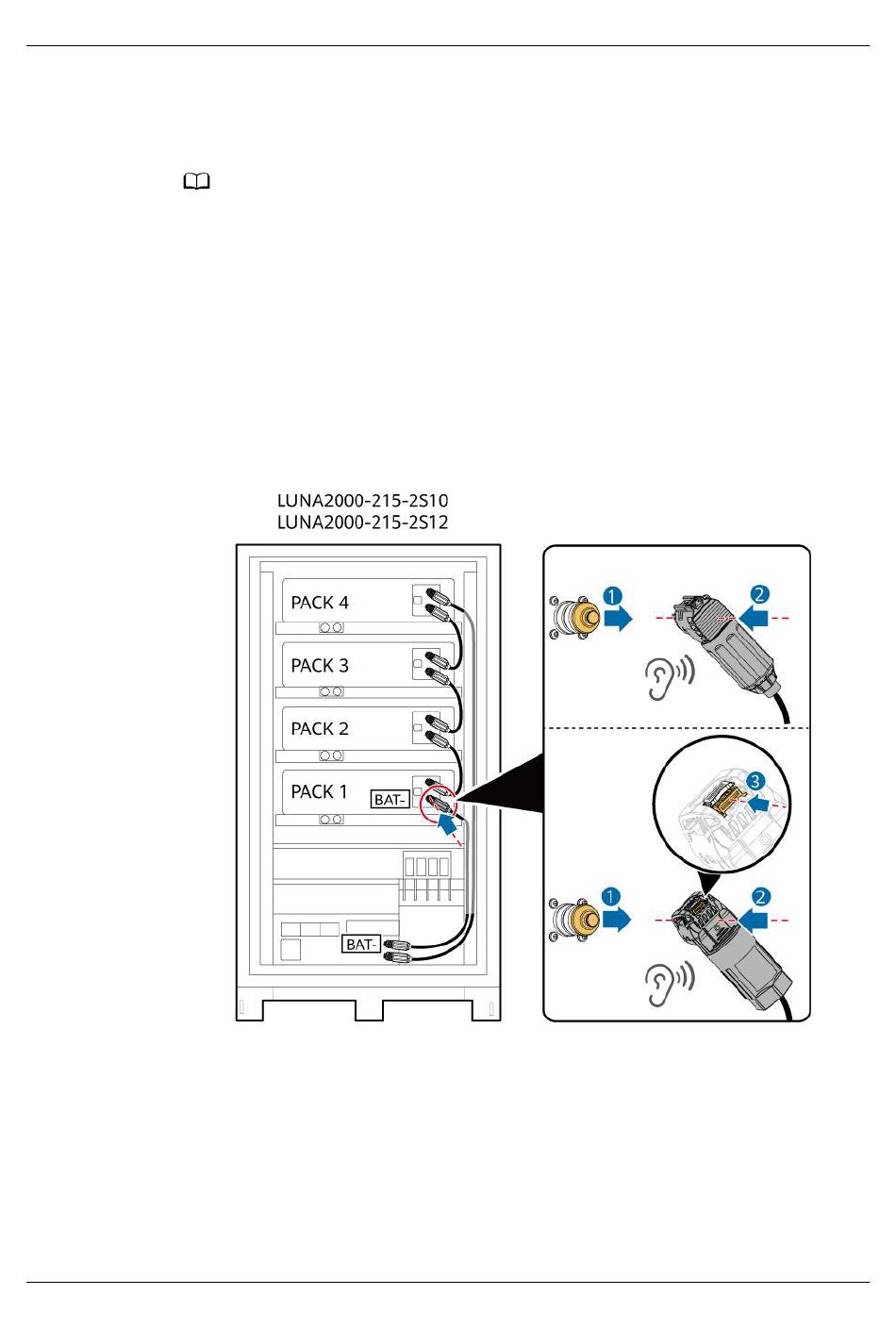

Figure 7-10 Installing PACK cables
----End
Issue 01 (2024-07-31)
NO TE
Only the BAT– terminal cable between PACK1 and the RCM needs to be installed onsite.
Other cables have been preinstalled.
Check the following cables and ensure that they are securely connected.
● Cables between PACKs
● Cables between PACKs and other components
