LUNA2000-(215-2S10, 215-2S12) Smart String ESS
User Manual

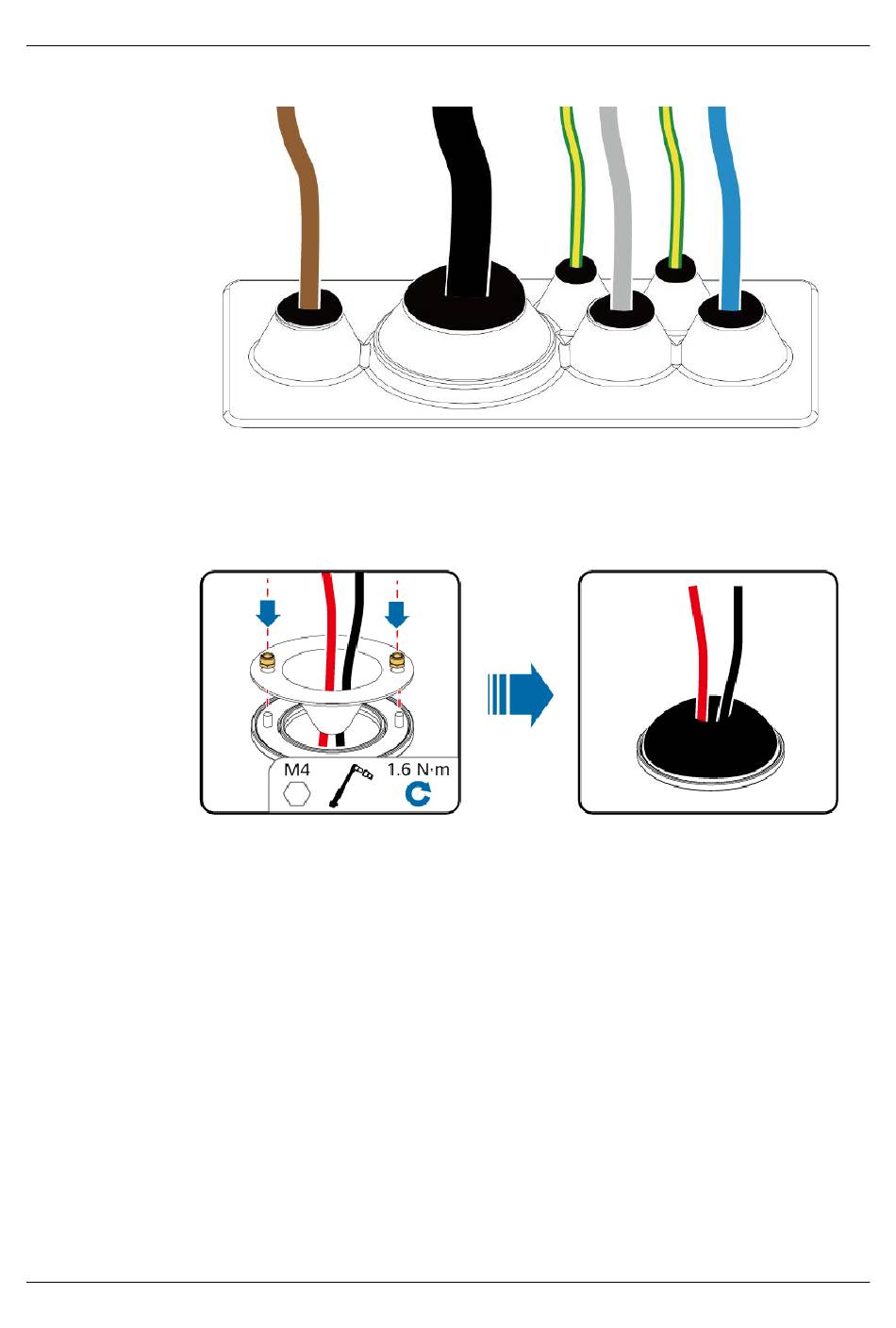

Figure 7-12 Sealing PCS cable holes
Step 3 After cables are installed, seal the cable holes for power cables and
communications cables using the delivered sealing putty.
Figure 7-13 Sealing cable holes for power cables and communications cables
Step 4 Reinstall the cable baffle plate.
Issue 01 (2024-07-31)
Copyright © Huawei Digital Power Technologies Co., Ltd.
7 Installing Cables
99
