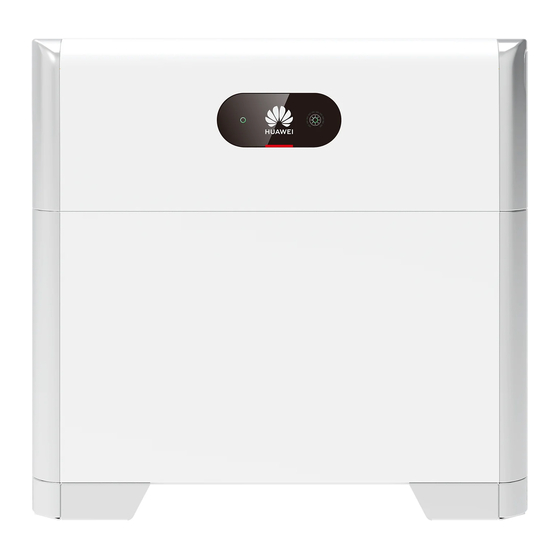

Huawei LUNA2000 Series User Manual

Huawei LUNA2000 Series User Manual

Smart string ess
Hide thumbs Also See for LUNA2000 Series:

Advertisement

Quick Links

LUNA2000-(107-215) Series Smart String ESS
User Manual
Issue
04
Date
2024-12-31
HUAWEI DIGITAL POWER TECHNOLOGIES CO., LTD.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUNA2000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Huawei LUNA2000 Series

  • Page 1 LUNA2000-(107-215) Series Smart String ESS User Manual Issue Date 2024-12-31 HUAWEI DIGITAL POWER TECHNOLOGIES CO., LTD.
  • Page 2 Notice The purchased products, services and features are stipulated by the contract made between Huawei Digital Power Technologies Co., Ltd. and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS"...
  • Page 3 Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results. NOTICE is used to address practices not related to personal injury. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 4 Updated 2.4.1.3 PCS. Updated 5.1 Site Selection Requirements. Updated 5.2 Clearance Requirements. Updated 6.3 Installing the ESS. Updated 7.2 Installing PCS Power Cables. Updated 7.6 (Optional) Installing the SmartLogger. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 5 7.2 Installing PCS Power Cables. Updated 7.6 (Optional) Installing the SmartLogger. Updated 8.2 Power-On Operations. Updated 9 ESS Commissioning. Updated Prerequisites. Issue 01 (2024-07-31) This issue is the first official release. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 6 2.4.3.3 T/H Sensor..................................47 2.4.3.4 Door Status Sensor................................ 48 2.4.3.5 Water Sensor................................... 48 2.4.4 Thermal Runaway Suppression System........................49 2.4.4.1 Thermal Runaway Suppression System Overview....................50 2.4.4.2 TRSD....................................51 Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 7 7.5.1 Installing an FE Communications Cable......................... 100 7.5.2 Installing Optical Fiber Communications Cables....................102 7.6 (Optional) Installing the SmartLogger........................104 7.7 Installing PACK Cables..............................107 7.8 Follow-up Procedure................................. 108 Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 8 C Emergency Handling......................138 D How Do I Recycle Used Batteries?.................. 141 E Certificate Management and Maintenance..............142 F Contact Information......................144 G Digital Power Customer Service..................146 H Acronyms and Abbreviations...................147 Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 9 ● The equipment is operated beyond the conditions specified in this document. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 10 D ANGER During operations, use dedicated insulated tools to prevent electric shocks or short circuits. The dielectric withstanding voltage level must comply with local laws, regulations, standards, and specifications. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 11 Personnel who will perform special tasks such as electrical operations, working at heights, and operations of special equipment must possess the required local qualifications. ● Only certified high-voltage electricians are allowed to operate medium- voltage equipment. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 12 Do not reconstruct or alter the equipment, add components, or change the installation sequence without permission. ● Obtain approval from the national or local electric utility company before connecting the equipment to the grid. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 13 Do not scrawl, damage, or block any labels or nameplates on the equipment. Promptly replace labels that have worn out. ● Do not use solvents such as water, alcohol, or oil to clean electrical components inside or outside of the equipment. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 14 To ensure safety, comply with the following requirements: – Cables can be laid or installed only when the temperature is higher than 0°C. Handle cables with caution, especially at a low temperature. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 15 When holding a board or a module with exposed circuit boards, hold its edge without touching any components. Do not touch the components with bare hands. ● Package boards or modules with ESD packaging materials before storing or transporting them. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 16 Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 17 ● After installing the equipment, remove the packing materials such as cartons, foam, plastics, and cable ties from the equipment area. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 18 Do not perform operations such as arc welding and cutting on the equipment without evaluation by the Company. ● Do not install other devices on the top of the equipment without evaluation by the Company. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 19 The tilt angle α of a cabinet with packaging must be less than or equal to 15°. After the cabinet is unpacked, its tilt angle α must be less than or equal to 10°. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 20 ● Behave cautiously when working at heights. Do not rest at heights. Using Ladders ● Use wooden or insulated ladders when you need to perform live-line working at heights. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 21 Do not drag steel ropes and hoisting tools or bump the hoisted objects against hard objects during hoisting. ● Ensure that the angle between two hoisting ropes is no more than 90 degrees, as shown in the following figure. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 22 If the ESS is faulty, do not stand within the opening range of the cabinet doors. CA UTION Evacuate from the site immediately once the fire alarm horn/strobe is triggered. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 23 To avoid leakage, smoke, flammable gas release, thermal runaway, fire, or explosion, do not disassemble, alter, or damage batteries, for example, insert foreign objects into batteries, squeeze batteries, or immerse batteries in water or other liquids. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 24 Ensure that no liquid enters the equipment to prevent faults or short circuits. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 25 ● Force majeure such as earthquakes, floods, volcanic eruptions, debris flows, lightning strikes, fires, wars, armed conflicts, typhoons, hurricanes, tornadoes, and other extreme weather conditions Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 26 Do not use a damaged battery (such as damage caused when a battery is dropped, bumped, bulged, or dented on the enclosure), because the damage may cause electrolyte leakage or flammable gas release. In the case of Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 27 Instead, transport the batteries to a safe isolation point and contact technical engineers in a timely manner. ● In backup power scenarios, do not use the batteries for the following situations: Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 28 Do not place waste batteries in environments with high humidity or corrosive substances. ● Do not use faulty batteries. Contact a battery recycling company to scrap them as soon as possible to avoid environmental pollution. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 29 ● 161: nominal energy of 161 kWh ● 107: nominal energy of 107 kWh ● LUNA2000-215-2S10 : 0.5P ● LUNA2000-215-2S12 : 0.5P ● LUNA2000-161-2S11 : 0.67P, with DCDC ● LUNA2000-107-1S11 : 1C, with DCDC Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 30 Indicates the month by 1 to 9, A, ● An SN consists of 12 B, and C from January to digits. The third to fifth December. digits from left to right indicate the year and month. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 31 Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 32 User Manual 2 Overview 2.3 Appearance Figure 2-3 Appearance and dimensions 2.4 Components NO TICE The ESS has multiple models. The figures in this document are for reference only. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 33 Fire alarm Generates alarms for internal devices when abnormal indicator temperature or smoke occurs. Explosion If an explosion occurs inside, the explosion relief panel is relief automatically opened. panel Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 34 Air outlet of the LTMS heat sink. of the heat sink Air inlet of Air inlet of the LTMS heat sink, covered with an air filter the heat sink Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 35 LUNA2000-(107-215) Series Smart String ESS User Manual 2 Overview Figure 2-5 Components (interior view, with DCDC) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 36 LUNA2000-(107-215) Series Smart String ESS User Manual 2 Overview Figure 2-6 Components (interior view, without DCDC) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 37 DCDC module, and liquid cooling plate. Aerosol fire When the aerosol fire suppression suppression device senses the high temperature, it device automatically starts and releases extinguishant. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 38 ESS on the mobile app. Document Stores documents related to the ESS, holder such as the quick guide. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 39 Figure 2-7 Position of the power supply and distribution system (1) PACK (2) PCS (3) RCM (4) DCDC (optional) 2.4.1.2 PACK The ESS supports the following types of PACKs: Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 40 Ground terminal Used to ground the PACK. General power ports PACK general power input/output port, used (BAT+ and BAT–) for power connection between PACKs or between PACKs and the RCM. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 41 Liquid cooling IP rating IP65 IP65 Operating –30°C to +55°C –30°C to +55°C temperature Storage –35°C to +60°C –35°C to +60°C temperature Transportation –35°C to +60°C –35°C to +60°C temperature Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 42 (BAT+ and BAT–) Exhaust valve Used for air exhaust and pressure relief. AC input/output Used for AC input and output. power terminals Ground terminal Used to ground the PCS. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 43 –25°C to +65°C (The PCS works with the ESS at – range 30°C to +55°C.) Voltage detection precision 1% Frequency detection 1‰ precision Protection class Class I Maximum AC power 118.8 kW (long-term operation) 140.4 kW (5s) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 44 When the PCS is installed in this Smart String ESS, this restriction does not apply. 2.4.1.4 DCDC NO TE Only some models are equipped with the DCDC. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 45 DC bus terminals (BUS Positive and negative terminals of the DC + and BUS–) bus. Table 2-13 ESS DCDC configuration ESS Model DCDC Type DCDC Quantity LUNA2000-215-2S12 LUNA2000-215-2S10 LUNA2000-161-2S11 LUNA2000B-110U-LM51 LUNA2000-107-1S11 LUNA2000B-110U-LM51 Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 46 Reverse connection protection Supported Overtemperature protection Supported Overcurrent protection on the Supported battery side Short circuit protection on the Supported battery side Short circuit protection on the Supported bus side Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 47 2.4.1.5 RCM The ESS supports the following RCMs: ● RCM-M1-C-140A1 (0.5P, without disconnector) ● RCM-M1-S-140A1 (0.5P, with disconnector) ● RCM-M3-C-280A1 (1C, without disconnector) Figure 2-11 RCM appearance (with disconnector) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 48 Battery rack DC ports BAT+ and BAT– refer to the positive and (BAT+ and BAT–) negative terminals, respectively. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 49 Table 2-20 RCM configuration ESS Model RCM Type RCM Quantity LUNA2000-215-2S10 RCM-M1-C-140A1 (0.5P, without disconnector) LUNA2000-215-2S12 RCM-M1-S-140A1 (0.5P, with disconnector) LUNA2000-161-2S11 RCM-M3-C-280A1 (1C, without disconnector) LUNA2000-107-1S11 Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 50 2.4.2.1 Monitoring System Overview The LCC, BMU, and BCU monitor the ESS internal status, and the SmartLogger monitors the ESS external environment. Figure 2-13 Positions of monitoring system components Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 51 ESS. 2.4.2.2 BCU Appearance Figure 2-14 BCU appearance Figure 2-15 BCU panel description Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 52 Steady red The system raises a major alarm. Wireless The WLAN module does not work. status Steady green The WLAN switch is turned on. indicator (WLAN) 2.4.3 Environment Control System Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 53 Mechanical cooling mode: In a high-temperature environment, the coolant is supplied through the multi-way valve to cool the PCS and DCDC, and the compressor is used for cooling the coolant which is supplied to cool the PACK. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 54 Operating temperature –30°C to +55°C Storage temperature –35°C to +60°C Operating humidity 5%–95% RH LTMS dimensions (W x H x D) 660 mm x 1560 mm x 240 mm Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 55 NO TE The appearance of the T/H sensor delivered onsite may vary. Technical Specifications T/H Sensor Temperature measurement range –20°C to +80°C Signal output Two RJ45 ports, bidirectional cascading Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 56 2.4.3.5 Water Sensor The water sensor detects water based on the resistance change between both electrodes. When the electrodes detect water, they are short-circuited and the BCU reports an alarm. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 57 LUNA2000-(107-215) Series Smart String ESS User Manual 2 Overview Figure 2-20 Water sensor appearance 2.4.4 Thermal Runaway Suppression System Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 58 (2) Exhaust fan (optional) (3) Smoke detector strobe (4) Heat detector (5) CO sensor (6) PACK extinguishant port (optional) (7) Aerosol fire (8) Installation position (9) TRSD host (optional) suppression device for the lead-acid battery Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 59 PACK. The heat in the PACK is absorbed quickly by the extinguishant to rapidly cool the PACK, thus suppress the thermal runaway process. Figure 2-22 TRSD Technical Specifications TRSD Storage pressure (at 20°C) 2.5±0.2 MPa Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 60 Figure 2-23 Aerosol fire suppression device Technical Specifications Aerosol Fire Suppression Device Extinguishant Aerosol Startup mode Hot start with temperature sensing Startup temperature 185±15°C 2.4.4.4 Heat Detector Figure 2-24 Appearance Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 61 The detector enters the alarm state. Blinking The detector enters the monitoring state. 2.4.4.5 CO Sensor Figure 2-25 Appearance of an explosion-proof CO sensor Figure 2-26 Appearance of a standard CO sensor Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 62 Running indicator Green Normal (normal) Fault indicator (fault) Yellow Fault Alarm indicator (fire Alarm alarm) 2.4.4.6 Smoke Detector The smoke detector can detect the smoke concentration in the environment. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 63 After receiving warning signals from devices such as the heat detector and smoke detector, the fire alarm horn/strobe starts and generates audible and visual alarm signals indicating potential dangers. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 64 Technical Specifications Exhaust Fan Operating voltage 8–16 V DC 2.5 Working Principles 2.5.1 Circuit Diagram NO TE The ESS has various circuit diagrams. The following figures are for reference only. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 65 Shut down: on The ESS enters the shutdown state upon command receiving a shutdown command. 2.6 Earthing Systems The ESS supports the TN-S, TN-C, TN-C-S, TT, and IT earthing systems. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 66 NO TICE For the TN-S, TN-C, TN-C-S and TT systems, the neutral wire of the ESS must be connected to the power grid. Figure 2-31 Earthing systems A: Transformer Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 67 Regulations and China's transportation industry standards (JT/T 617) concerning road transportation of dangerous goods , as well as the requirements of the transportation regulatory authorities in the countries of Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 68 When moving and transporting the LTMS, keep it upright. Do not place it horizontally or upside down. If the package of the LTMS is damaged or the tilt indicator on the package has changed color, contact the Company's service engineers. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 69 ≥ 2000 mm; tyne spacing ≥ 440 mm ● During loading and unloading, tynes must be in the middle of the ESS and must extend out of the cabinet. Figure 3-1 Loading and unloading requirements Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 70 The forklift must have sufficient power, its center of gravity must be stable, and the forklift driver's sight must not be blocked to ensure safety during transportation on a slope. Figure 3-2 Moving the cabinet on a slope using a forklift Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 71 It is recommended that the ESS be used soon after being deployed onsite. The ESS that has been stored for an extended period or has not been put into operation shall be charged periodically. Otherwise, the ESS may be damaged. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 72 ESS indicators must be off. ● The storage duration starts from the latest charge time labeled on the ESS packaging. If the ESS is qualified after charge, update the latest charge time Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 73 See the maximum charge intervals when the SOC is 50%. 30% ≤ SOC < 50% 4 months 5% ≤ SOC < 30% 20 days SOC < 5% 48 hours Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 74 The batteries cannot be charged due to long-term mains failure. ● The batteries cannot be charged because the switch of the Smart Rack Controller, Smart PCS, or main loop component is off. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 75 At least 2 m away from heat sources ● The batteries in storage must be disconnected from external devices. The indicators (if any) on the batteries must be off. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 76 See the maximum charge intervals when the SOC is 50%. 30% ≤ SOC < 50% 4 months 5% ≤ SOC < 30% 20 days SOC < 5% 48 hours Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 77 When the thermal runaway suppression system equipment is stored as spare parts, the ambient temperature shall range from 0°C to 50°C and the humidity shall be less than or equal to 95% RH. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 78 Areas with corrosive, flammable, and explosive materials ● Areas with existing underground facilities ● Areas with adverse geological conditions such as rubbery soil and soft soil layer, or prone to waterlogging and land subsidence Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 79 ▪ If either of the following conditions is met, the distance between the ESS and the production building shall be permitted to be reduced to Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 80 NO TICE ● The following figures show the minimum clearance requirements for installation and O&M. The equipment clearances must also meet the site selection requirements (see 5.1 Site Selection Requirements). Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 81 3 mm. ● The foundation must be above the highest water level of the local area in history and at least 300 mm above the ground. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 82 Ensure that the hoisting tools are secured to a load-bearing object or wall. For outdoor use, you are advised to hoist the equipment on sunny days without wind. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 83 Remove the ropes after ensuring that the cabinet is placed evenly on the cabinet base. Do not drag steel ropes or lifting appliances. Protect the equipment from collision. Secure the cabinet you have hoisted before hoisting another cabinet. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 84 The alarm will be automatically cleared after the dehumidification is complete, which takes more than 10 minutes. 6.1 Pre-installation Check WARNING Take protective measures for working at heights during unpacking. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 85 Checking cables After unpacking, check whether None after unpacking the fastening components and removable components are loose. If they are loose, notify the carrier and manufacturer immediately. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 86 ● The tool pictures are for reference only. ● The tool tables may not list out some tools required onsite. Onsite installation personnel and the customer need to prepare the tools based on the site requirements. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 87 ● The socket connector matches the torque wrench. ● Torque range: 1.2– 45 N·m Wire stripper Cable cutter Rubber mallet Utility knife RJ45 crimping Hydraulic pliers Needle-nose Marker tool pliers Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 88 Rope length ≥ ≥ 1.7 m) forklift (load- 2110 mm x 4 bearing capacity ≥ 4 t; recommended tyne dimensions: length ≥ 1800 mm, width 230–300 mm, thickness 25– 80 mm) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 89 ESS. The positioning plates can experience deformation and paint damage due to collision, and will be removed later. NO TE The ESS appearance may vary. The figures in this document are for reference only. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 90 If a forklift is used to move the ESS, the positioning plates on the side from which the tynes are inserted must be removed after the ESS is secured. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 91 ● When endless slings are used for hoisting, place protective materials (such as paper and foamed plastics) where the slings contact the cabinet to avoid friction between them during hoisting. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 92 1800 mm, width 230–300 mm, thickness: 25–80 mm ● The lifting capacity of slings shall be greater than three times the maximum weight of the cabinet. Figure 6-4 Moving the ESS (method 1: using bridle slings) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 93 LUNA2000-(107-215) Series Smart String ESS User Manual 6 Installation Figure 6-5 Moving the ESS (method 2: using endless slings) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 94 CA UTION If the space at the rear of the ESS is insufficient for drilling holes on the ground, use Plan 2 to secure the ESS. For details, see Figure Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 95 ● When hoisting an ESS whose rear and side will face other ESSs, use the hoisting brackets of those ESSs. Figure 6-7 Securing the ESS using four anchor brackets (plan 1, recommended) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 96 LUNA2000-(107-215) Series Smart String ESS User Manual 6 Installation Figure 6-8 Securing the ESS using three anchor brackets (plan 2) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 97 Recommended: ≥ 40 mm x Use either zinc-coated 4 mm (depending on the of the two cabinet flat steel onsite fault current); grounding sheet prepared by the customer methods. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 98 A Crimping an OT or DT Terminal. ----End Procedure Step 1 Install the ground bar or ground cable outside the cabinet and connect it to the customer's ground grid. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 99 LUNA2000-(107-215) Series Smart String ESS User Manual 6 Installation Figure 6-10 Grounding outside the cabinet (flat ground bar) Figure 6-11 Grounding outside the cabinet (ground cable) ----End Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 100 NO TICE ● After cables are connected, do not remove the desiccants before power-on. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 101 Sectional Area/ Outer Diameter Three-core/ Cross- M12 OT/DT Prepared power Four-core/ sectional terminal by the cable Five-core area: 50– customer outdoor 300 mm copper/ copper-clad aluminum/ aluminum alloy cable Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 102 12.7–27 alloy cable Network CAT 5E ≤ 9 mm Shielded Delivered cable outdoor RJ45 with the shielded connector product network cable, internal resistance ≤ 1.5 ohms/10 Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 103 PCS power cables point vertically downward. ● Use a socket with a depth greater than or equal to 50 mm for securing the M12 nuts of the PCS power cables. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 104 Step 2 Connect the PCS power cables: Route the mains cables through the cable holes at the bottom, and connect the cables to the PCS and ground bar. Select a cable connection method as required. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 105 Figure 7-1 Installing PCS power cables ----End 7.3 Installing Cables for the Auxiliary Power Supply The ESS auxiliary power supply can be obtained directly from the mains or through the PCS terminal. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 106 M6 OT terminal to the mains AC input terminal and the M4 OT terminal to the PCS. Figure 7-2 Connecting auxiliary power supply cables (directly from the mains) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 107 PV inverters and wind power converters. Step 1 Route the UPS AC input power cables through the cable hole and connect the cables to the UPS wiring terminals. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 108 SmartLogger. ● For the SmartLogger installed outside the ESS, see SmartLogger3000 Quick Guide. Step 1 Connect the FE communications cable to the WAN1/LAN1 or WAN2/LAN2 port of the RCM. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 109 LUNA2000-(107-215) Series Smart String ESS User Manual 7 Installing Cables Figure 7-5 Connecting communications cables (for the SmartLogger installed in the ESS) Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 110 7.5.2 Installing Optical Fiber Communications Cables NO TICE Only professionals are allowed to connect optical fiber cables and splice fibers. NO TE In the optical fiber ring topology, two optical fiber cables are required. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 111 Step 1 Open the ESS bottom sealing plate and remove the external mechanical parts of the ATB. Step 2 Remove the optical fiber cable fastener. Step 3 Connect one end of the optical jumper to the fiber adapter. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 112 This section describes how to connect cables when the SmartLogger is installed in the ESS. For details about how to install the SmartLogger, see SmartLogger3000 Quick Guide. Installation Preparations Tool Obtaining Method SmartLogger Delivered separately from the ESS Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 113 Step 4 Connect the FE communications cable between the RCM and the SmartLogger. Step 5 Connect the communications cable between the SmartLogger and the PC. Step 6 Connect the SmartLogger power cable. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 114 PVC corrugated pipe, and secure the pipe to the side of the cabinet. Step 8 Install the SIM card. Step 9 Install the external protective cover for the SmartLogger. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 115 Step 1 Check that the PACK cables and cables to the BAT+ and BAT– terminals of the RCM are securely connected and intact. Step 2 Connect the general output power cables of PACKs. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 116 When sealing the cable holes, fill the gap between cables with the sealing putty. After sealing the cable holes, check the cable holes carefully to ensure that they are securely sealed with the sealing putty. Step 1 Install the RCM cover. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 117 Step 3 After cables are installed, seal the cable holes for power cables and communications cables using the delivered sealing putty. Figure 7-14 Sealing cable holes for power cables and communications cables Step 4 Reinstall the cable baffle plate. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 118 7 Installing Cables Figure 7-15 Installing the cable baffle plate Step 5 Reinstall the external bottom baffle plate for the ESS. Figure 7-16 Installing the external bottom baffle plate ----End Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 119 ● Cable tie joints are evenly cut without burrs. ● Cables are placed properly and with slack at bending points to avoid stress. ● Cables are routed neatly without twists or crossovers in the cabinets. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 120 Components (PCS, DCDC, RCM, All components are intact. BCU, TRSD, and LTMS) Foreign object Foreign objects such as tools and remaining materials are cleared. The SPD indicator is green. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 121 RCM is short-circuited and whether the load on the corresponding line is faulty. Turn on the RCCB only after you have confirmed that there is no short circuit or other fault. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 122 ● Before power-on, ensure that the power cables (BAT+ and BAT–) between the PACK and the RCM are connected. For details, see 7.7 Installing PACK Cables. For details about the switch positions and power-on operations, see Figure 8-1. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 123 Step 1 Before the ESS is powered on and runs stably, remove the blue protective film from the ESS to avoid compromising the ESS heat dissipation performance. Step 2 (Optional) Press the red button on the lead-acid battery box to start the lead-acid battery. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 124 UPS is configured. Step 19 Install the RCM cover. Step 20 (Optional) Turn on the RCM disconnector. This operation is required when a disconnector is configured. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 125 Step 23 Turn on the auxiliary power supply switch of the customer's power distribution cabinet. Step 24 (Optional) Turn on the ESS power switch on the UPS side. This operation is required when a UPS is configured. ----End Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 126 The ESS supports the following commissioning methods: ● Commissioning on the SmartLogger WebUI ● Commissioning on the app 9.2 Prerequisites Closing the Cabinet Door Before deployment and commissioning, close the cabinet door. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 127 Contact the device vendor or its authorized supervision service provider to apply for a startup authorization code through the Power Partner app. – Method 1: Choose Monitoring > ESS > Running Param > Basic Parameters to view Startup authorization verification code. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 128 9.4 Commissioning the ESS (App) For details about how to deploy and commission the ESS on the app, see FusionSolar App Quick Guide (SmartLogger) (Video) FusionSolar App Setup Wizard (SmartLogger). Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 129 Step 3 Click Monitoring, view the device status, and ensure that the shutdown is successful. ----End 10.2 Power-Off Operations For details about the switch positions and power-off operations, see Figure 10-1. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 130 Step 1 Turn off the general power distribution switch of the customer's power distribution cabinet. Step 2 Turn off the auxiliary power supply switch of the customer's power distribution cabinet. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 131 NO TICE If the ESS has been powered off and will not be put into use for a long time, turn off the switch of the lead-acid battery box. ----End Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 132 LUNA2000-(107-215) Series Smart String ESS User Manual 11 Alarm Reference Alarm Reference For details about the alarms, see LUNA2000-(107-215) Series Smart String ESS Alarm Reference. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 133 Maximum 221.2 A 280.0 A current of a battery rack Battery pack LUNA2000-54-2E1 LUNA2000-54-1E1 model Battery rack (1P60S)4S (1P60S)3S (1P60S)2S configuration Intra-battery Battery pack-level active balancing rack balancing mode Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 134 148.5 A @ 420 V AC 420 V AC 141.8 A @ 141.8 A @ 440 V AC 440 V AC 130.0 A @ 130.0 A @ 480 V 480 V Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 135 400 V AC (5s) times 195.4 A @ overload) 415 V AC (5s) Maximum 140.4 kW 129.6 kW 108.0 kW power Battery Liquid cooling temperature control mode LTMS model LunaTMS2000-H008SG00 Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 136 ≤ 5 live wire ≤ 5 kVA @ 0.67P kVA @ 1C Standby loss 138.0 W System Ethernet/Optical fiber (optional)/RS485 communicatio ns port System Modbus TCP communicatio ns protocol Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 137 (≥ 5 perfluorohexa none) Round-trip 89.5% 87.0% 85.5% efficiency (ambient temperature: 25°C; power grid: 400 V Standards GB/T 36276, IEC 62619, IEC 62477-1; IEC 61000-3-12, etc. compliance Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 138 OT/DT terminal. Ensure that the aluminum side of the washer contacts the aluminum wiring terminal, and that the copper side contacts the terminal block. It is recommended that washers and terminals be purchased from the same vendor. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 139 When crimping OT/DT terminals for electrical equipment, you must use heat shrink tubings. ● Use a heat gun carefully to avoid heat damage to the equipment. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 140 (5) Hydraulic pliers (6) Heat gun Figure A-3 Crimping a DT terminal (1) Cable (2) Core wire (3) Heat shrink tubing (4) DT terminal (5) Hydraulic pliers (6) Heat gun Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 141 The equipment appearance should be intact. If paint has flaked off, repair paint damage immediately. NO TE Check the paint damage on the equipment and prepare appropriate tools and materials. The number of materials depends on site requirements. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 142 3 mm in depth, ask the local supplier for an appropriate repainting solution. Procedure Step 1 Gently polish damaged areas using fine sandpaper to remove smudges or rust. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 143 ● In the case that an equipment pattern has different colors, to prevent undamaged areas and those with different colors as the damaged area from being contaminated during repainting, cover such areas using white paper and adhesive tape before repairing paint. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 144 The following is a paint model list provided by the Company. The list may be updated from time to time and is for reference only. The cost of paint and technical services is subject to the local pricing standards. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 145 EPICON ZINC SC B-2 M (ON LINE ZINC) Intermediate coat: EPICON SC PRIMER GREY CSC-9107 Top coat: UNYMARINE SC FINISH WHITE CSC-9205 (RAL-9003) Logo Red: UNYMARINE SC MARKING RAL-3020 Black: UNYMARINE SC MARKING RAL-9005 Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 146 If any part of the batteries is submerged in water, do not touch the batteries to avoid electric shock. ● Do not use batteries that have been soaked in water. Contact a battery recycling company for disposal. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 147 When a fire occurs, evacuate from the building or equipment area, press the fire alarm bell, and immediately call the fire emergency service. Notify the professional firefighters and provide them with relevant Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 148 Do not open the doors of the ESS before it is deemed safe by professionals. Follow local fire fighting regulations. When a fire occurs, prevent the fire from spreading to nearby ESSs. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 149 NO TE You need to cover the related transportation expenses. Step 4 Recycling agencies handle recycling. The recycled lithium batteries are at the disposal of the recycling agencies. ----End Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 150 Preconfigured Huawei-issued certificates are used only in the deployment phase, for establishing initial security channels between devices and the customer's network. Huawei does not promise or guarantee the security of preconfigured certificates. The customer shall bear consequences of all security risks and security incidents arising from using preconfigured Huawei-issued certificates as service certificates.
  • Page 151 BCU when the LCC left. certificate communicates with the BCU. Northbound Authenticates the validity communication of the LCC when the LCC certificate communicates with the BCU. Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 152 To ensure faster and better services, we kindly request your assistance in providing the following information: ● Model ● Serial number (SN) ● Software version ● Alarm ID or name ● Brief description of the fault symptom Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 153 LUNA2000-(107-215) Series Smart String ESS User Manual F Contact Information NO TE EU Representative Information: Huawei Technologies Hungary Kft. Add.: HU-1133 Budapest, Váci út 116-118., 1. Building, 6. floor. Email: hungary.reception@huawei.com Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 154 LUNA2000-(107-215) Series Smart String ESS User Manual G Digital Power Customer Service Digital Power Customer Service https://digitalpower.huawei.com/robotchat/ Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 155 LUNA2000-(107-215) Series Smart String ESS User Manual H Acronyms and Abbreviations Acronyms and Abbreviations application Battery Monitoring Unit Battery Control Unit energy storage system direct current DCDC DC-DC Converter fast Ethernet Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 156 Liquid Thermal Management System PACK battery pack Power Converter System Rack Control Module reset small form-factor pluggable subscriber identity module serial number state of charge TRSD Thermal Runaway Suppression Device Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
  • Page 157 LUNA2000-(107-215) Series Smart String ESS User Manual H Acronyms and Abbreviations uninterruptible power system wide area network Issue 04 (2024-12-31) Copyright © Huawei Digital Power Technologies Co., Ltd.
