LUNA2000-(215-2S10, 215-2S12) Smart String ESS
User Manual

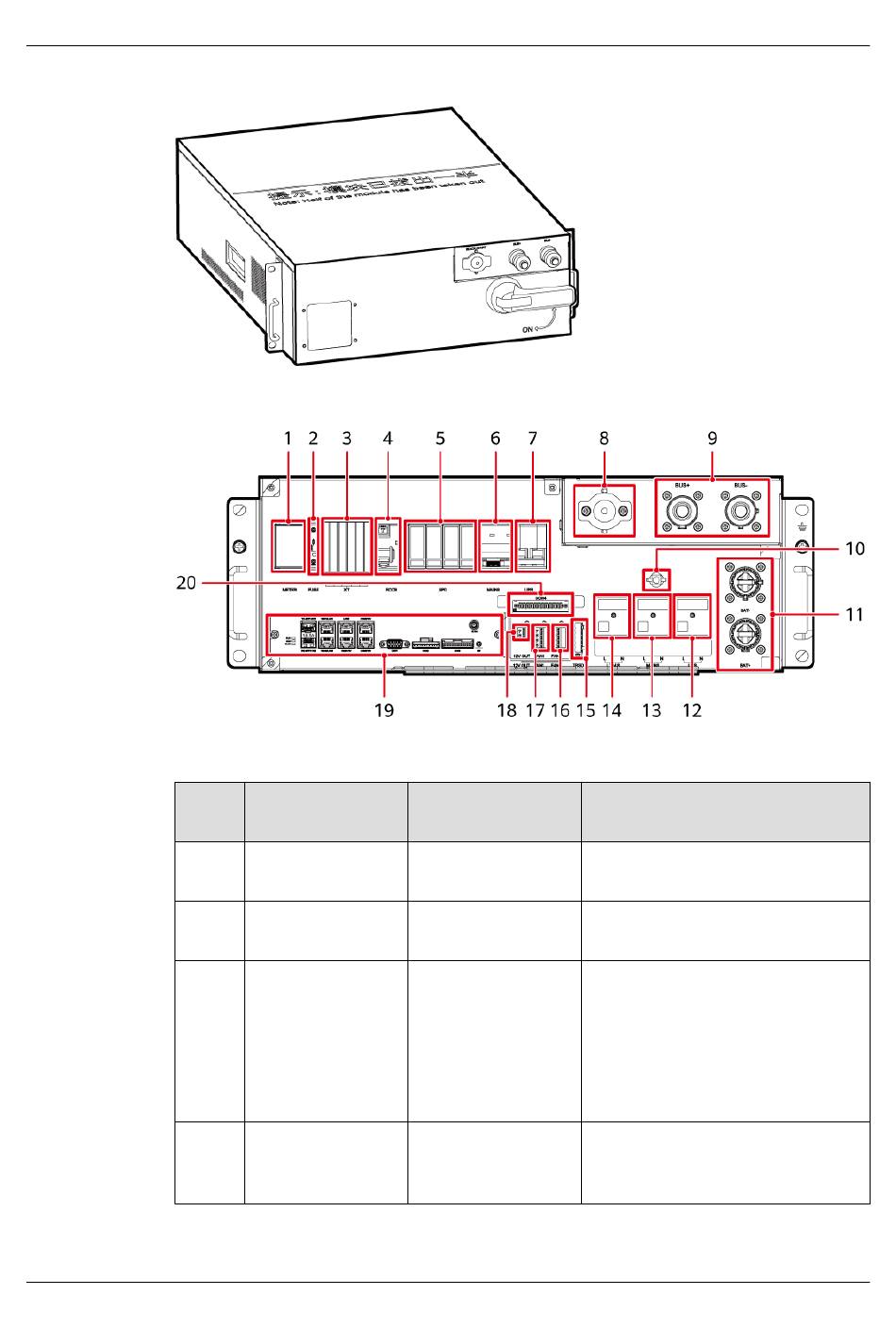

Figure 2-8 RCM appearance (with disconnector)
Figure 2-9 RCM panel description
Table 2-11 Component configuration
No.
1
2
3
4
Issue 01 (2024-07-31)
Item
Power meter (AC
METER)
Power meter
fuse (FUSE)
Wiring terminals
for manually
switching the
auxiliary power
supply (UT6)
Residual current
circuit breaker
(RCCB)
Copyright © Huawei Digital Power Technologies Co., Ltd.
Maximum
Quantity per ESS
1
1
1
1
Description
Collects information about the
auxiliary AC power supply.
Fuse of the power meter.
Used to manually switch the
auxiliary power source between
the UPS and mains.
Terminals 1–3 are live wire bars.
Terminals 4–6 are neutral wire
bars.
Used for residual current
protection.
2 Overview
