LUNA2000-(215-2S10, 215-2S12) Smart String ESS
User Manual

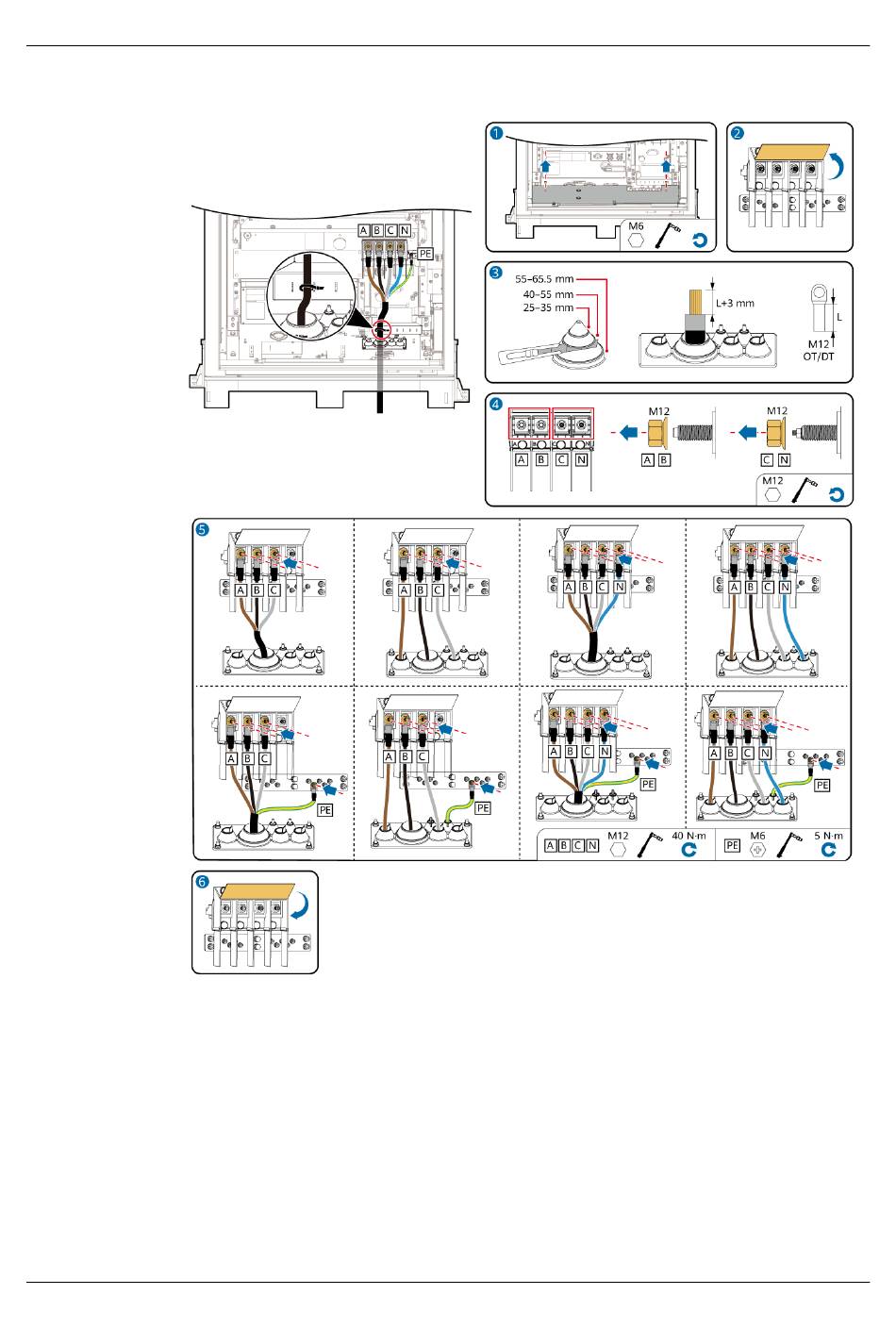

Figure 7-1 Installing PCS power cables
----End
7.3 Installing Cables for the Auxiliary Power Supply
The ESS auxiliary power supply can be obtained directly from the mains or
through the PCS terminal.
Issue 01 (2024-07-31)
Copyright © Huawei Digital Power Technologies Co., Ltd.
7 Installing Cables
88
