Table 2-21 ESS status description
Status
Running
Standby
Shut down

2.6 Earthing Systems

The ESS supports the TN-S, TN-C, TN-C-S, TT, and IT earthing systems.

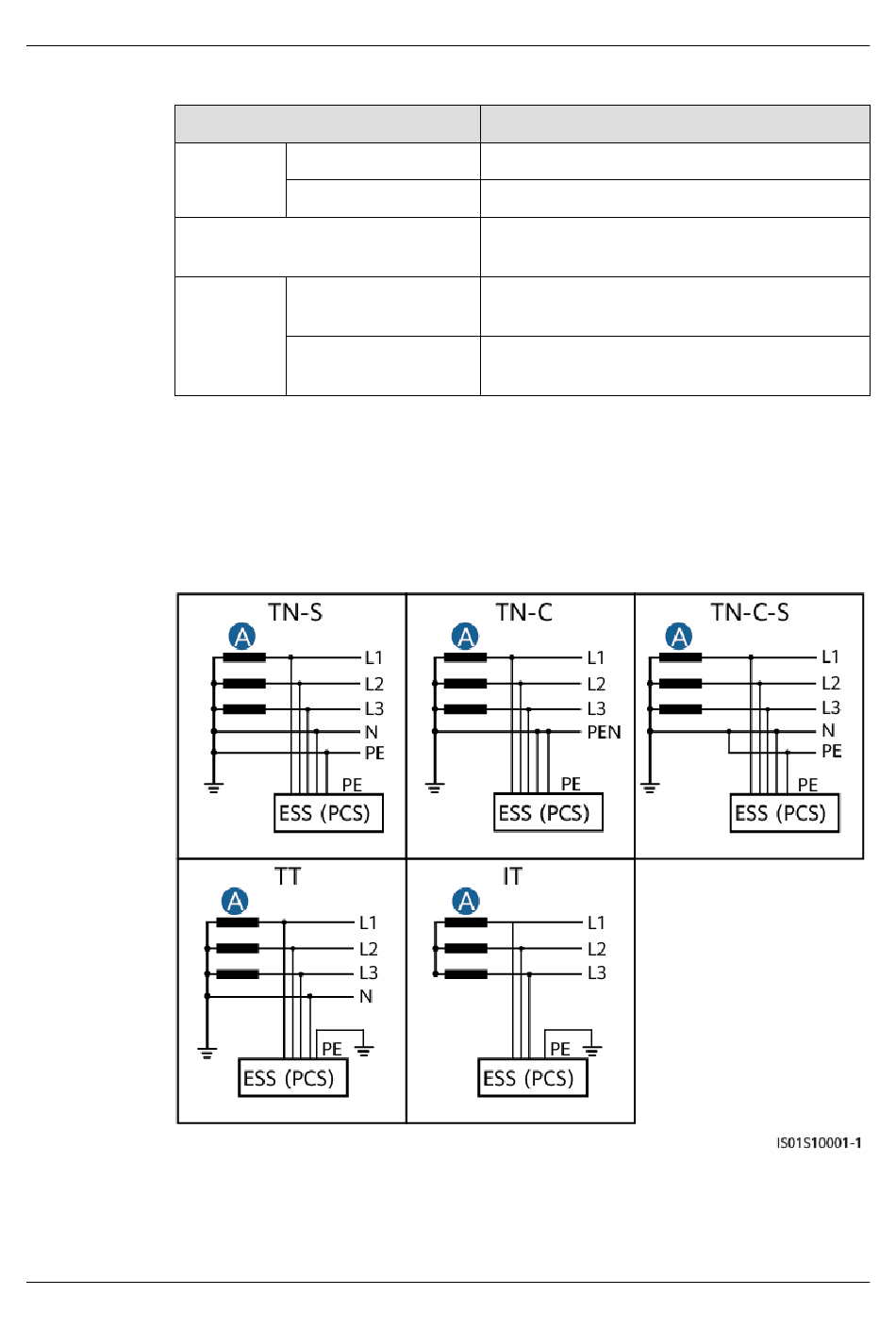

Figure 2-28 Earthing systems
A: Transformer
Issue 01 (2024-07-31)
Running: PQ mode
Running: VSG mode
Shut down: on fault
Shut down: on
command
Copyright © Huawei Digital Power Technologies Co., Ltd.
Description
The ESS is running in PQ mode.
The ESS is running in VSG mode.
The ESS performs the initialization self-
check.
The ESS enters the shutdown state due to a
fault.
The ESS enters the shutdown state upon
receiving a shutdown command.
