SECTION 7—FOOTREST/ANTI-TIPPER

Adjusting the X-terminator and Transformer Footrests

NOTE: For this procedure, refer to FIGURE 7.4 and FIGURE 7.5 on page 65.

Depth

1. Remove the four allen screws from the footrest and blocks.
2. Move footrest rearward or forward to desired depth.
3. Align the holes in the footrest with the holes in the blocks on footrest tubing.
4. Install allen screws into footrest and into the blocks.
5. Securely tighten the four allen screws.

Angle

1. Loosen the button screws on the blocks
on bottom of the footrest tubing.
2. Adjust the angle of the footrest.
3. Retighten the button screws securely.

X-Terminator Height

1. Loosen the four allen screws.
2. Adjust clamp on raised footrest to the
desired height.
3. Securely tighten the four allen screws.

Transformer Height

NOTE: For this procedure, refer to FIGURE 7.5.
1. Note the order of the mounting screw, coved washers, spacer, half clamps and
mounting screw/threaded sleeve and their position on the wheelchair frame and
footrest tubing.
2. Remove the mounting screw, coved washers, spacer, half clamps and mounting
screw/threaded sleeve on both sides of the wheelchair.
3. Choose an adjustment hole on the footrest tubing that will raise or lower the footrest
to the desired position.
4. Reinstall the mounting screw, coved washers, spacer, half clamps and mounting
screw/threaded sleeve on both sides of the wheelchair.
5. Securely tighten.
Everyday and Sport Series Wheelchairs
Half Clamps
Allen Screws
Button Screws

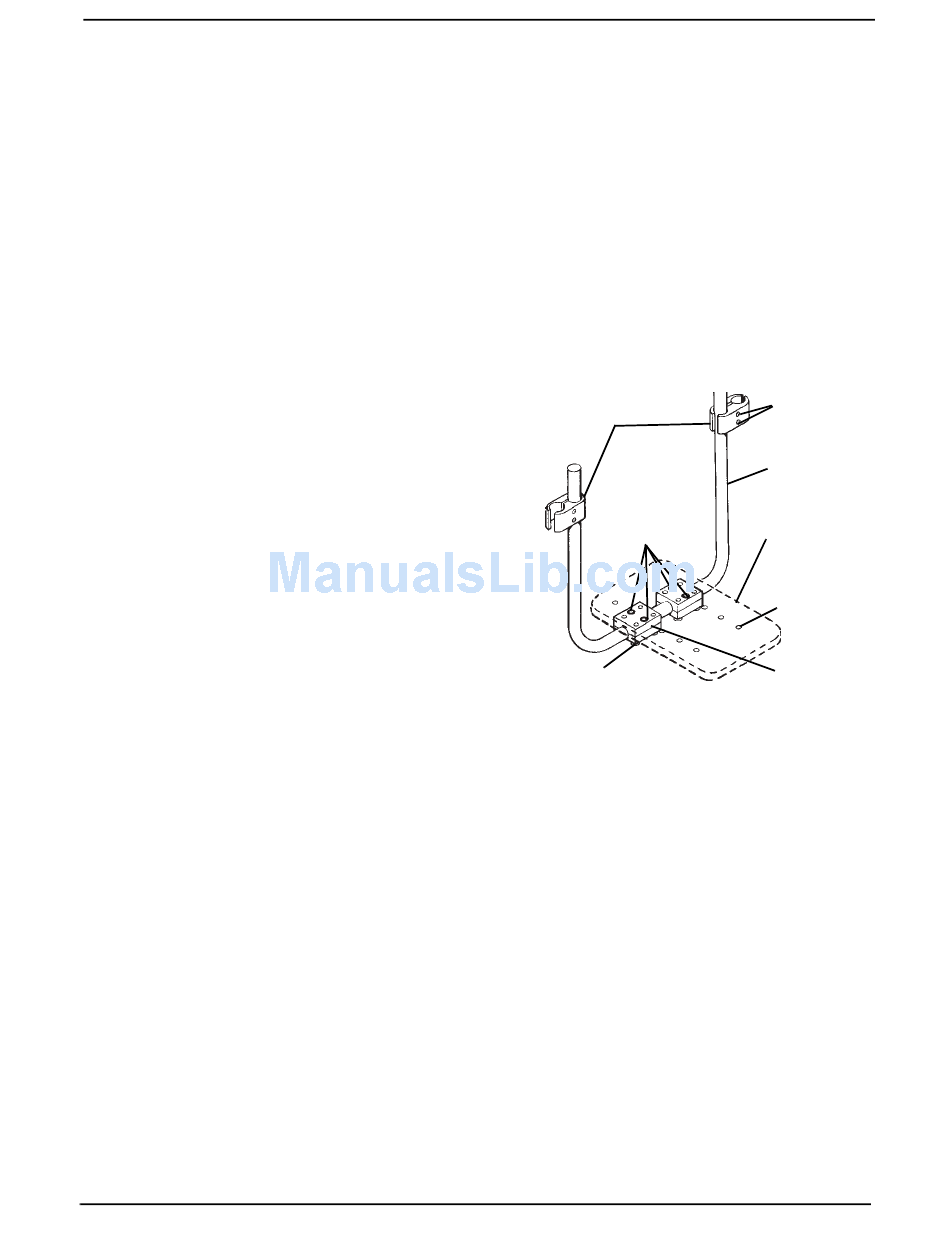

FIGURE 7.4 Installing the X-Terminator
Footrest - Adjusting the X-terminator and
Transformer Footrests
64
Allen
Screws
Footrest
Tubing
Footrest
Depth
Adjustment
Holes
Blocks
