Invacare® Modulite
Adjusting PROTON Wings
Refer to Adjusting Swing-Away Mechanism.
Adjusting Headrest Position
Refer to Adjusting multi-axis headrest hardware.

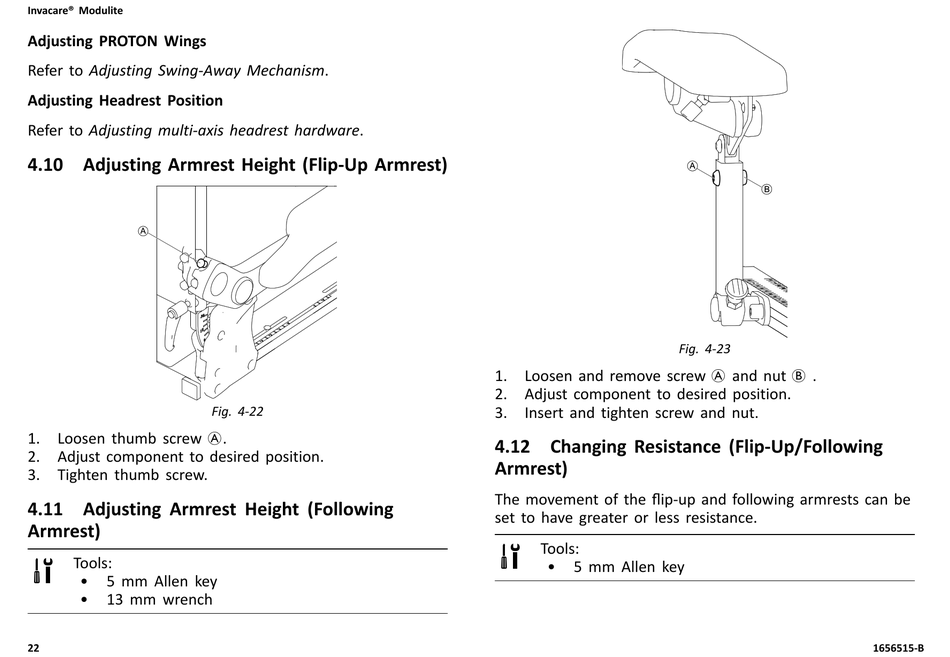

4.10 Adjusting Armrest Height (Flip-Up Armrest)

1. Loosen thumb screw A.
2. Adjust component to desired position.
3. Tighten thumb screw.
4.11 Adjusting Armrest Height (Following
Armrest)
Tools:
• 5 mm Allen key
• 13 mm wrench
22
Fig. 4-22
1. Loosen and remove screw A and nut B .
2. Adjust component to desired position.
3. Insert and tighten screw and nut.
4.12 Changing Resistance (Flip-Up/Following
Armrest)
The movement of the flip-up and following armrests can be
set to have greater or less resistance.
Tools:
• 5 mm Allen key
Fig. 4-23
1656515-B
