CHAPTER 4 APPLIED OPERATION

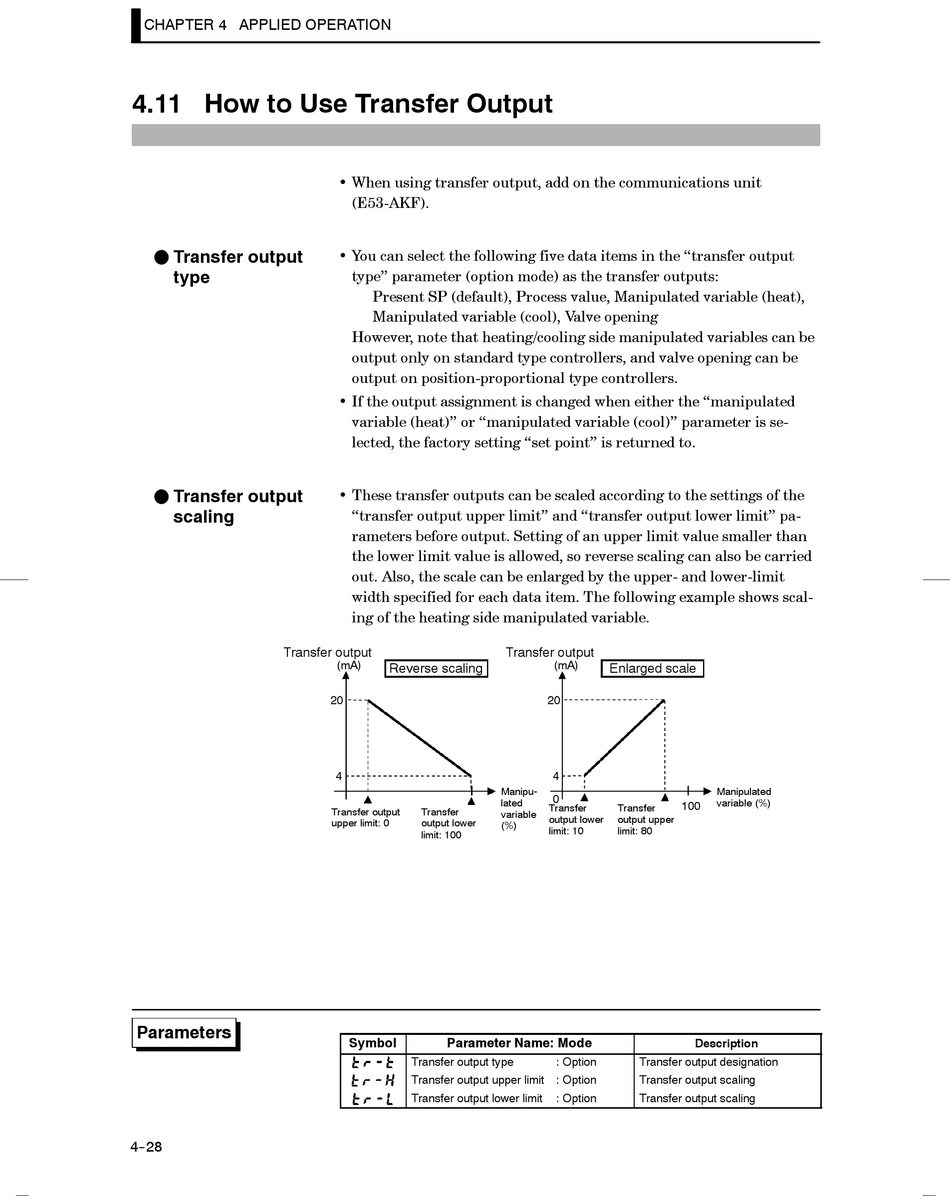

4.11 How to Use Transfer Output

F Transfer output
type
F Transfer output
scaling
Parameters
4--28
• When using transfer output, add on the communications unit
(E53-AKF).
• You can select the following five data items in the "transfer output
type" parameter (option mode) as the transfer outputs:
Present SP (default), Process value, Manipulated variable (heat),
Manipulated variable (cool), Valve opening
However, note that heating/cooling side manipulated variables can be
output only on standard type controllers, and valve opening can be
output on position-proportional type controllers.
• If the output assignment is changed when either the "manipulated
variable (heat)" or "manipulated variable (cool)" parameter is se-
lected, the factory setting "set point" is returned to.
• These transfer outputs can be scaled according to the settings of the
"transfer output upper limit" and "transfer output lower limit" pa-
rameters before output. Setting of an upper limit value smaller than
the lower limit value is allowed, so reverse scaling can also be carried
out. Also, the scale can be enlarged by the upper- and lower-limit
width specified for each data item. The following example shows scal-
ing of the heating side manipulated variable.
Transfer output
(mA)
Reverse scaling
20
4
Transfer output Transfer
upper limit: 0 output lower
limit: 100
Symbol
Transfer output type
Transfer output upper limit
Transfer output lower limit
Transfer output
(mA)
20
4
Manipu-
0
lated
Transfer
variable
output lower
(%)
limit: 10
Parameter Name: Mode
: Option
: Option
: Option
Enlarged scale
Manipulated
variable (%)
100
Transfer
output upper
limit: 80
Description
Transfer output designation
Transfer output scaling
Transfer output scaling
