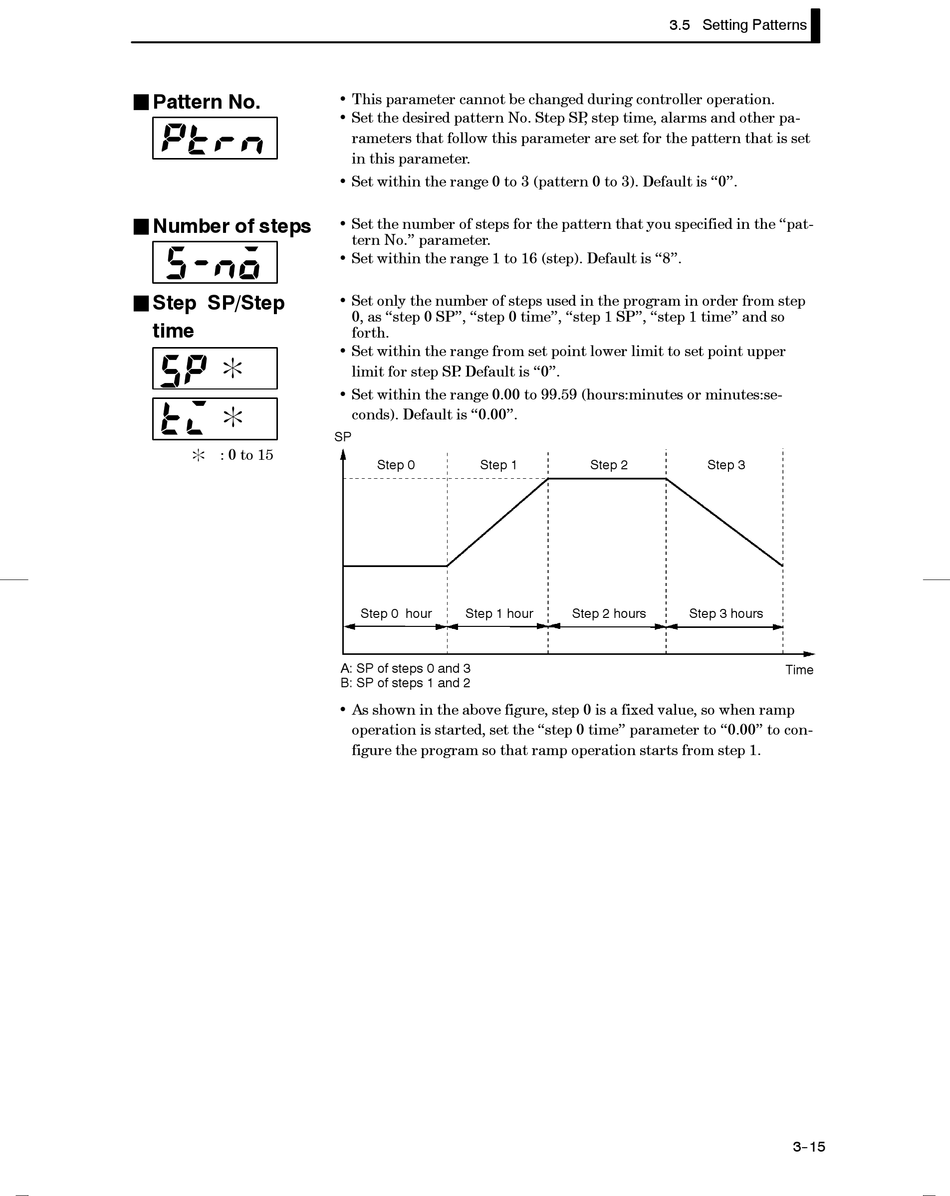

J Pattern No.
J Number of steps
J Step SP/Step
time
:
:
: : 0 to 15
• This parameter cannot be changed during controller operation.
• Set the desired pattern No. Step SP , step time, alarms and other pa-
rameters that follow this parameter are set for the pattern that is set
in this parameter.
• Set within the range 0 to 3 (pattern 0 to 3). Default is "0".
• Set the number of steps for the pattern that you specified in the "pat-
tern No." parameter.
• Set within the range 1 to 16 (step). Default is "8".
• Set only the number of steps used in the program in order from step
0, as "step 0 SP", "step 0 time", "step 1 SP", "step 1 time" and so
forth.
• Set within the range from set point lower limit to set point upper
limit for step SP . Default is "0".
• Set within the range 0.00 to 99.59 (hours:minutes or minutes:se-
conds). Default is "0.00".
SP
Step 0 Step 1
Step 0 hour Step 1 hour
A: SP of steps 0 and 3
B: SP of steps 1 and 2
• As shown in the above figure, step 0 is a fixed value, so when ramp
operation is started, set the "step 0 time" parameter to "0.00" to con-
figure the program so that ramp operation starts from step 1.
3.5 Setting Patterns
Step 2 Step 3
Step 2 hours Step 3 hours
Time
