F Setup examples
This description assumes that the controller is operated under the fol-
lowing conditions.
• A K thermocouple is used as the input.
• Control output (heat), alarm 1 and alarm 2 functions are assigned to
"control output 1," "control output 2" and auxiliary output 1, respec-
tively. Of these, only control output 1 and auxiliary output 1 are used.
• The relay output unit is mounted at control output 1.
• The upper-limit alarm is set as alarm 2. The alarm is output when the
temperature exceeds 10_C with respect to the PV .
• The program is made up of one pattern comprising four steps.

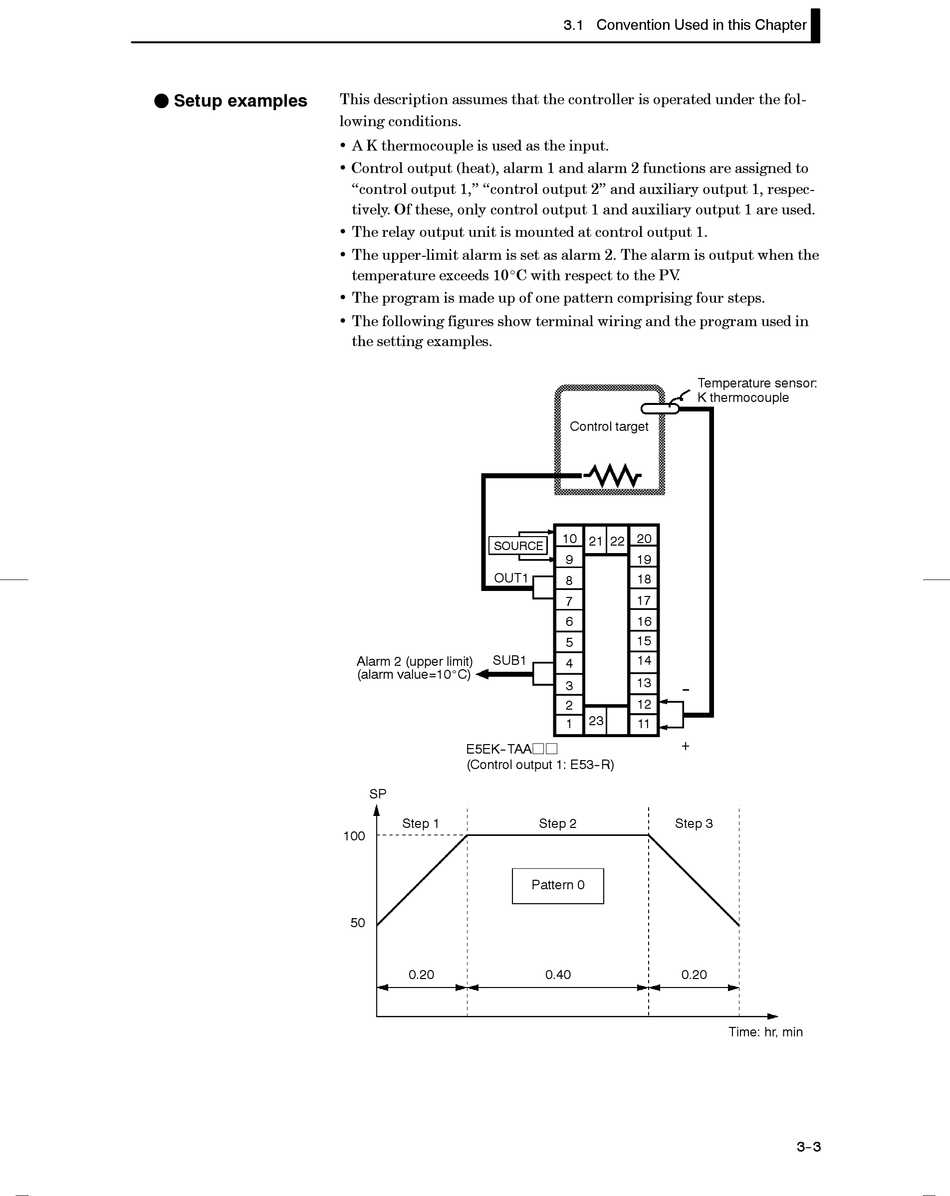

• The following figures show terminal wiring and the program used in
the setting examples.
Alarm 2 (upper limit)
(alarm value=10_C)
E5EK--TAA
(Control output 1: E53--R)
SP
Step 1
100
50
0.20
3.1 Convention Used in this Chapter
Control target
10 20
21 22
SOURCE
9 19
OUT1
18
8
17
7
6 16
15
5
SUB1 14
4
13
3
12
2
23
1 11
jj
Step 2
Pattern 0
0.40
Temperature sensor:
K thermocouple
--
+
Step 3
0.20
Time: hr, min
3--3
