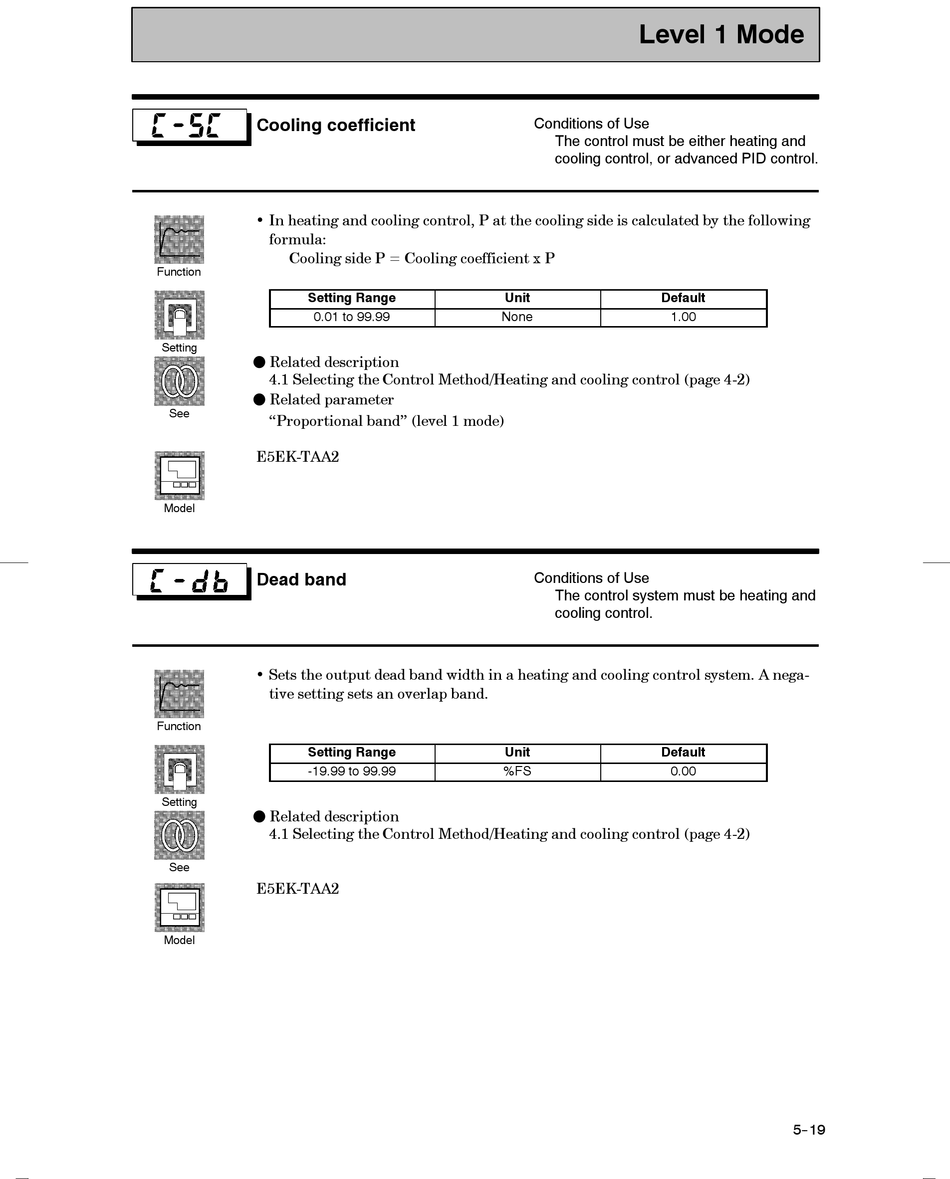

Cooling coefficient
• In heating and cooling control, P at the cooling side is calculated by the following
formula:
Cooling side P = Cooling coefficient x P
Function
Setting
F Related description
4.1 Selecting the Control Method/Heating and cooling control (page 4-2)
F Related parameter
See
"Proportional band" (level 1 mode)
E5EK-TAA2
Model
Dead band
• Sets the output dead band width in a heating and cooling control system. A nega-
tive setting sets an overlap band.
Function
Setting
F Related description
4.1 Selecting the Control Method/Heating and cooling control (page 4-2)
See
E5EK-TAA2
Model
Setting Range
0.01 to 99.99
Setting Range
-19.99 to 99.99
Level 1 Mode
Conditions of Use
The control must be either heating and
cooling control, or advanced PID control.
Unit
None
Conditions of Use
The control system must be heating and
cooling control.
Unit
%FS
Default
1.00
Default
0.00
5--19
