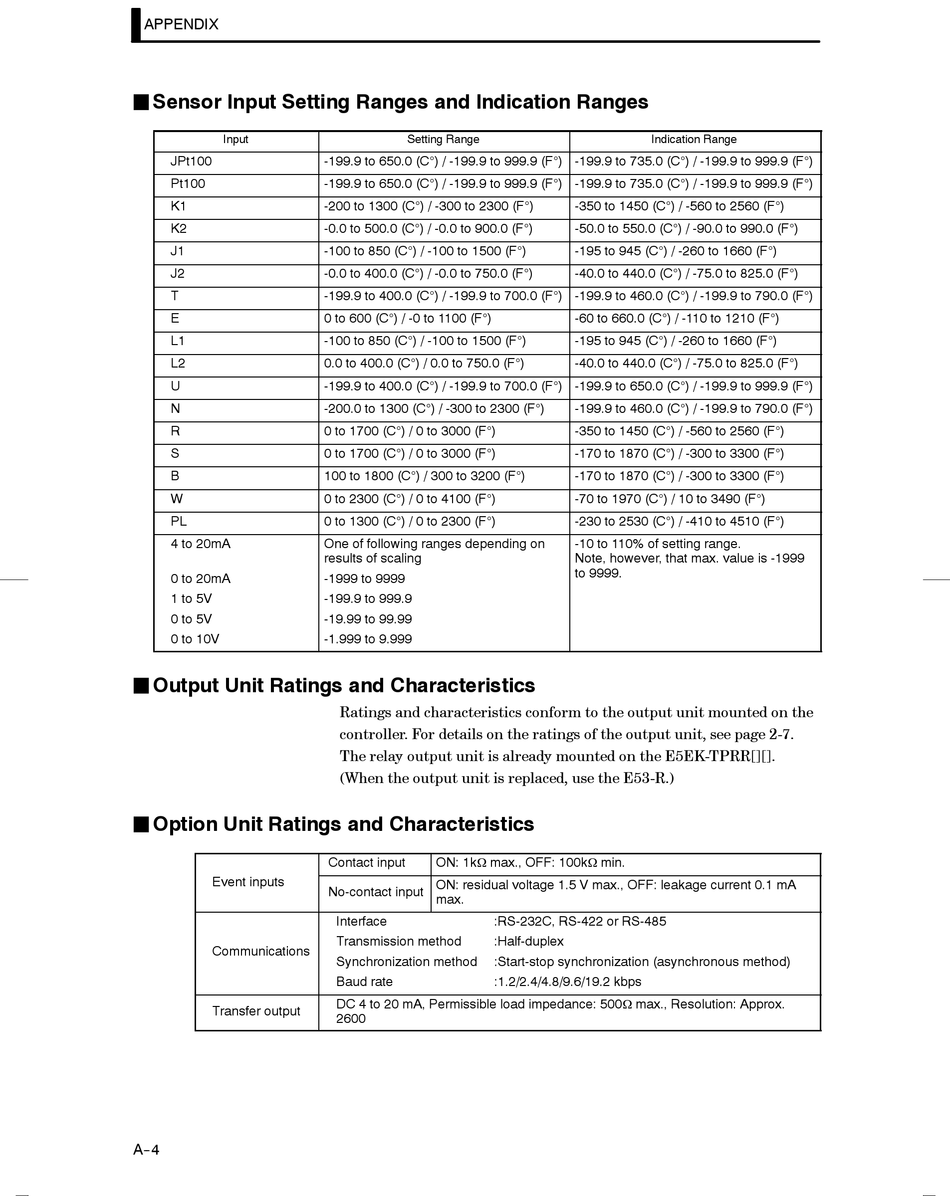

J Sensor Input Setting Ranges and Indication Ranges
Input
JPt100
Pt100
K1
K2
J1
J2
T
E
L1
L2
U
N
R
S
B
W
PL
4 to 20mA
0 to 20mA
1 to 5V
0 to 5V
0 to 10V
J Output Unit Ratings and Characteristics
J Option Unit Ratings and Characteristics
Event inputs
Communications
Transfer output
A--4
Setting Range
-199.9 to 650.0 (C°) / -199.9 to 999.9 (F°) -199.9 to 735.0 (C°) / -199.9 to 999.9 (F°)
-199.9 to 650.0 (C°) / -199.9 to 999.9 (F°) -199.9 to 735.0 (C°) / -199.9 to 999.9 (F°)
-200 to 1300 (C°) / -300 to 2300 (F°)
-0.0 to 500.0 (C°) / -0.0 to 900.0 (F°)
-100 to 850 (C°) / -100 to 1500 (F°)
-0.0 to 400.0 (C°) / -0.0 to 750.0 (F°)
-199.9 to 400.0 (C°) / -199.9 to 700.0 (F°) -199.9 to 460.0 (C°) / -199.9 to 790.0 (F°)
0 to 600 (C°) / -0 to 1100 (F°)
-100 to 850 (C°) / -100 to 1500 (F°)
0.0 to 400.0 (C°) / 0.0 to 750.0 (F°)
-199.9 to 400.0 (C°) / -199.9 to 700.0 (F°) -199.9 to 650.0 (C°) / -199.9 to 999.9 (F°)
-200.0 to 1300 (C°) / -300 to 2300 (F°)
0 to 1700 (C°) / 0 to 3000 (F°)
0 to 1700 (C°) / 0 to 3000 (F°)
100 to 1800 (C°) / 300 to 3200 (F°)
0 to 2300 (C°) / 0 to 4100 (F°)
0 to 1300 (C°) / 0 to 2300 (F°)
One of following ranges depending on
results of scaling
-1999 to 9999
-199.9 to 999.9
-19.99 to 99.99
-1.999 to 9.999
Ratings and characteristics conform to the output unit mounted on the
controller. For details on the ratings of the output unit, see page 2-7.
The relay output unit is already mounted on the E5EK-TPRR[][].
(When the output unit is replaced, use the E53-R.)
Contact input ON: 1kΩ max., OFF: 100kΩ min.
ON: residual voltage 1.5 V max., OFF: leakage current 0.1 mA
No-contact input
max.
Interface
Transmission method
Synchronization method
Baud rate
DC 4 to 20 mA, Permissible load impedance: 500Ω max., Resolution: Approx.
2600
-350 to 1450 (C°) / -560 to 2560 (F°)
-50.0 to 550.0 (C°) / -90.0 to 990.0 (F°)
-195 to 945 (C°) / -260 to 1660 (F°)
-40.0 to 440.0 (C°) / -75.0 to 825.0 (F°)
-60 to 660.0 (C°) / -110 to 1210 (F°)
-195 to 945 (C°) / -260 to 1660 (F°)
-40.0 to 440.0 (C°) / -75.0 to 825.0 (F°)
-199.9 to 460.0 (C°) / -199.9 to 790.0 (F°)
-350 to 1450 (C°) / -560 to 2560 (F°)
-170 to 1870 (C°) / -300 to 3300 (F°)
-170 to 1870 (C°) / -300 to 3300 (F°)
-70 to 1970 (C°) / 10 to 3490 (F°)
-230 to 2530 (C°) / -410 to 4510 (F°)
-10 to 110% of setting range.
Note, however, that max. value is -1999
to 9999.
:RS-232C, RS-422 or RS-485
:Half-duplex
:Start-stop synchronization (asynchronous method)
:1.2/2.4/4.8/9.6/19.2 kbps
Indication Range
