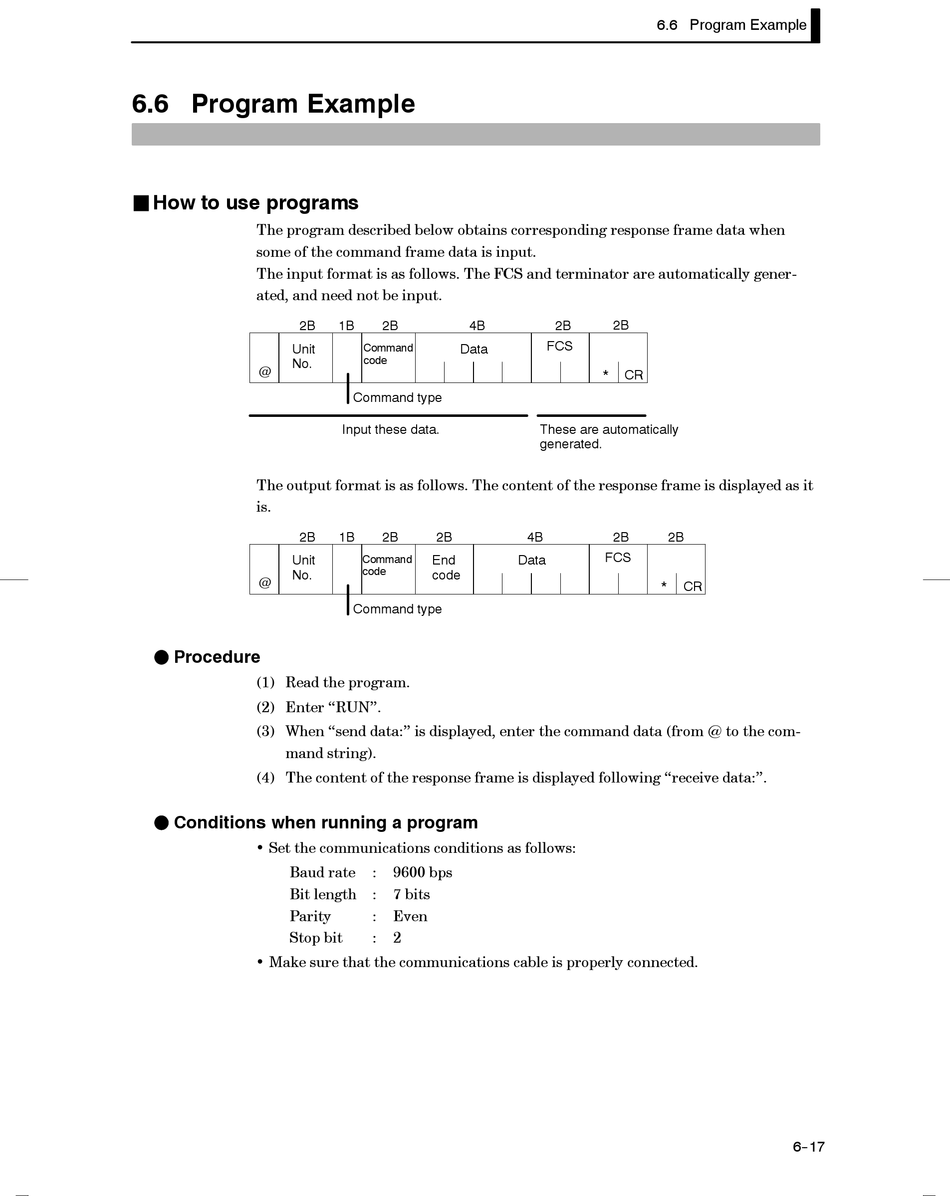

6.6 Program Example

J How to use programs
The program described below obtains corresponding response frame data when
some of the command frame data is input.
The input format is as follows. The FCS and terminator are automatically gener-
ated, and need not be input.
@
The output format is as follows. The content of the response frame is displayed as it
is.
@
F Procedure
(1) Read the program.
(2) Enter "RUN".
(3) When "send data:" is displayed, enter the command data (from @ to the com-
(4) The content of the response frame is displayed following "receive data:".
F Conditions when running a program
• Set the communications conditions as follows:
• Make sure that the communications cable is properly connected.
2B 1B 2B
Unit Command
code
No.
Command type
Input these data.
2B 1B 2B 2B
Unit End
Command
code
No. code
Command type
mand string).
Baud rate : 9600 bps
Bit length : 7 bits
Parity : Even
Stop bit : 2
4B 2B
FCS
Data
*
These are automatically
generated.
4B
FCS
Data

6.6 Program Example

2B
CR
2B 2B
* CR
6--17
