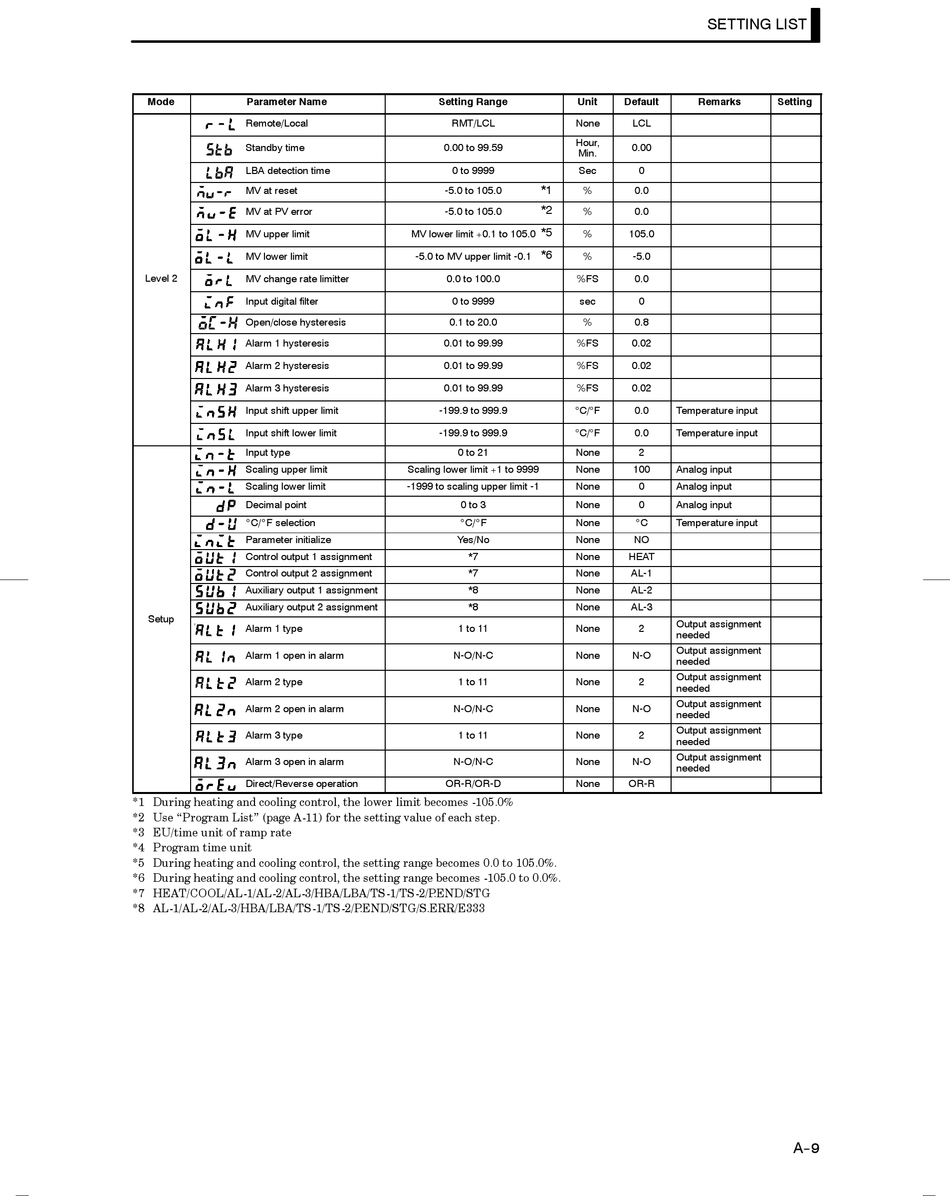

Omron E5EK PROGRAMMABLE TYPE User Manual page 191

Mode Parameter Name
Remote/Local
Standby time
LBA detection time
MV at reset
MV at PV error
MV upper limit
MV lower limit
Level 2
MV change rate limitter
Input digital filter
Open/close hysteresis
Alarm 1 hysteresis
Alarm 2 hysteresis
Alarm 3 hysteresis
Input shift upper limit
Input shift lower limit
Input type
Scaling upper limit
Scaling lower limit
Decimal point
_C/_F selection
Parameter initialize
Control output 1 assignment
Control output 2 assignment
Auxiliary output 1 assignment
Auxiliary output 2 assignment
S t Setup
Alarm 1 type
Alarm 1 open in alarm
Alarm 2 type
Alarm 2 open in alarm
Alarm 3 type
Alarm 3 open in alarm
Direct/Reverse operation
*1 During heating and cooling control, the lower limit becomes -105.0%
*2 Use "Program List" (page A-11) for the setting value of each step.
*3 EU/time unit of ramp rate
*4 Program time unit
*5 During heating and cooling control, the setting range becomes 0.0 to 105.0%.
*6 During heating and cooling control, the setting range becomes -105.0 to 0.0%.
*7 HEAT/COOL/AL-1/AL-2/AL-3/HBA/LBA/TS-1/TS-2/P .END/STG
*8 AL-1/AL-2/AL-3/HBA/LBA/TS-1/TS-2/P .END/STG/S.ERR/E333
Setting Range
RMT/LCL
0.00 to 99.59
0 to 9999
*1
-5.0 to 105.0
*2
-5.0 to 105.0
*5
MV lower limit +0.1 to 105.0
*6
-5.0 to MV upper limit -0.1
0.0 to 100.0
0 to 9999
0.1 to 20.0
0.01 to 99.99
0.01 to 99.99
0.01 to 99.99
-199.9 to 999.9
-199.9 to 999.9
0 to 21
Scaling lower limit +1 to 9999
-1999 to scaling upper limit -1
0 to 3
_C/_F
Yes/No
*7
*7
*8
*8
1 to 11
N-O/N-C
1 to 11
N-O/N-C
1 to 11
N-O/N-C
OR-R/OR-D
SETTING LIST
Unit Default Remarks
None LCL
Hour,
0.00
Min.
Sec 0
% 0.0
% 0.0
% 105.0
% -5.0
%FS 0.0
sec 0
% 0.8
%FS 0.02
%FS 0.02
%FS 0.02
0.0 Temperature input
°C/°F
0.0 Temperature input
°C/°F
None 2
None 100 Analog input
None 0 Analog input
None 0 Analog input
None Temperature input
_C
None NO
None HEAT
None AL-1
None AL-2
None AL-3
Output assignment
None 2
needed
Output assignment
None N-O
needed
Output assignment
None 2
needed
Output assignment
None N-O
needed
Output assignment
None 2
needed
Output assignment
None N-O
needed
None OR-R
Setting
