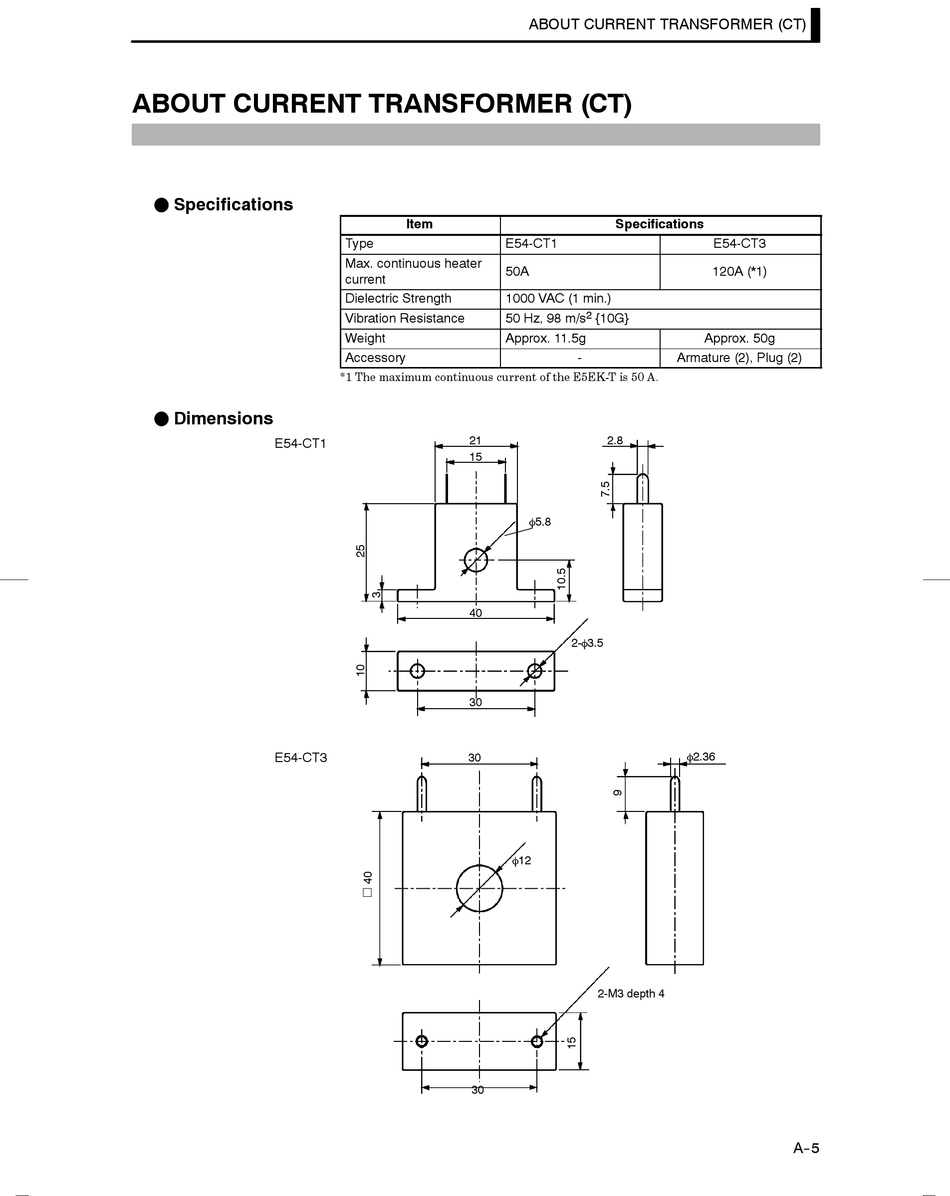

ABOUT CURRENT TRANSFORMER (CT)

F Specifications
F Dimensions
E54-CT1
E54-CT3
Item
Type
Max. continuous heater
current
Dielectric Strength
Vibration Resistance
Weight
Accessory
*1 The maximum continuous current of the E5EK-T is 50 A.
21
15
40
30
30
j
30
ABOUT CURRENT TRANSFORMER (CT)
Specifications
E54-CT1
50A
1000 VAC (1 min.)
2
50 Hz, 98 m/s {10G}
Approx. 11.5g
-
2.8
φ5.8
2-φ3.5
φ12
2-M3 depth 4
E54-CT3
120A (*1)
Approx. 50g
Armature (2), Plug (2)
φ2.36
A--5
