CHAPTER 5 PARAMETERS

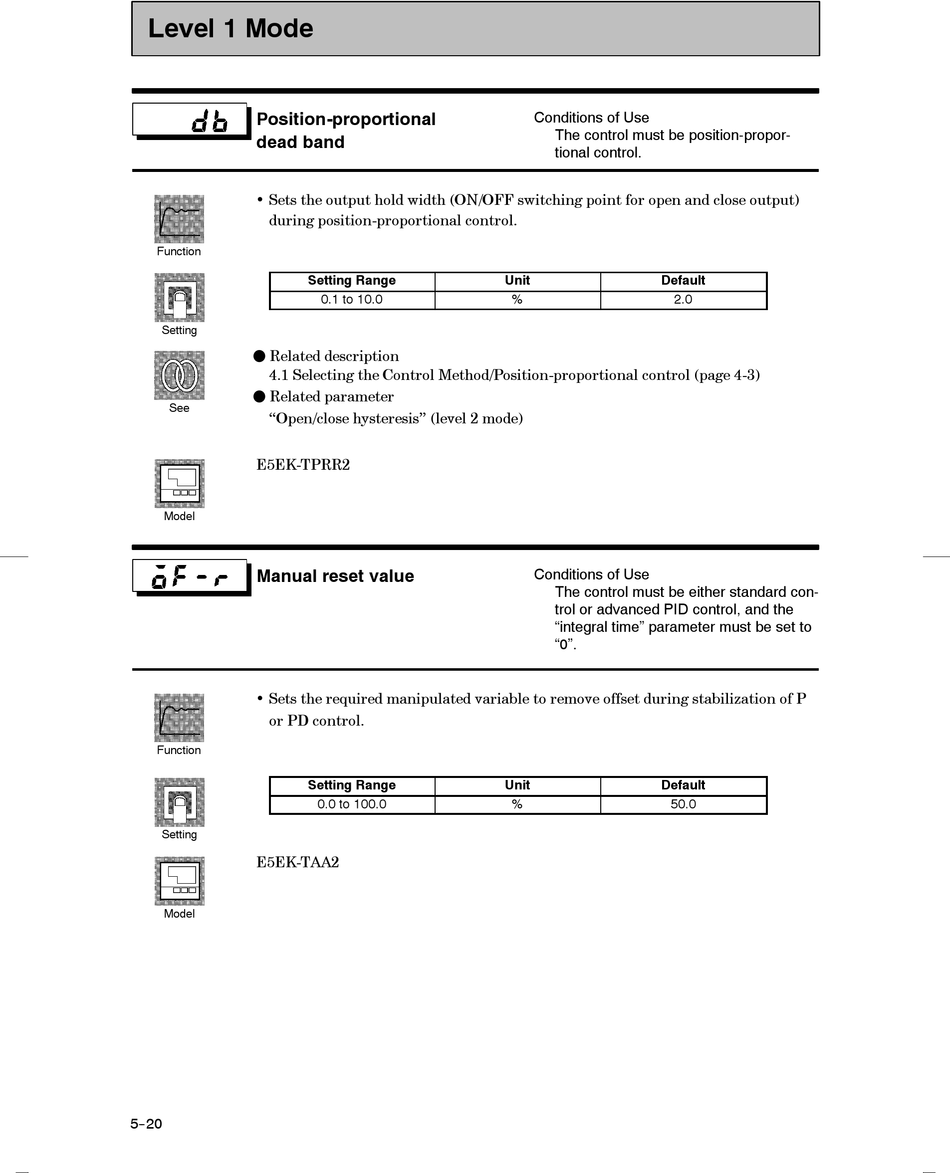

Level 1 Mode
Position-proportional
dead band
• Sets the output hold width (ON/OFF switching point for open and close output)
during position-proportional control.
Function
Setting
F Related description
4.1 Selecting the Control Method/Position-proportional control (page 4-3)
F Related parameter
See
"Open/close hysteresis" (level 2 mode)
E5EK-TPRR2
Model
Manual reset value
• Sets the required manipulated variable to remove offset during stabilization of P
or PD control.
Function
Setting
E5EK-TAA2
Model
5--20
Setting Range
0.1 to 10.0
Setting Range
0.0 to 100.0
Conditions of Use
The control must be position-propor-
tional control.
Unit
%
Conditions of Use
The control must be either standard con-
trol or advanced PID control, and the
"integral time" parameter must be set to
"0".
Unit
%
Default
2.0
Default
50.0
