CHAPTER 5 PARAMETERS

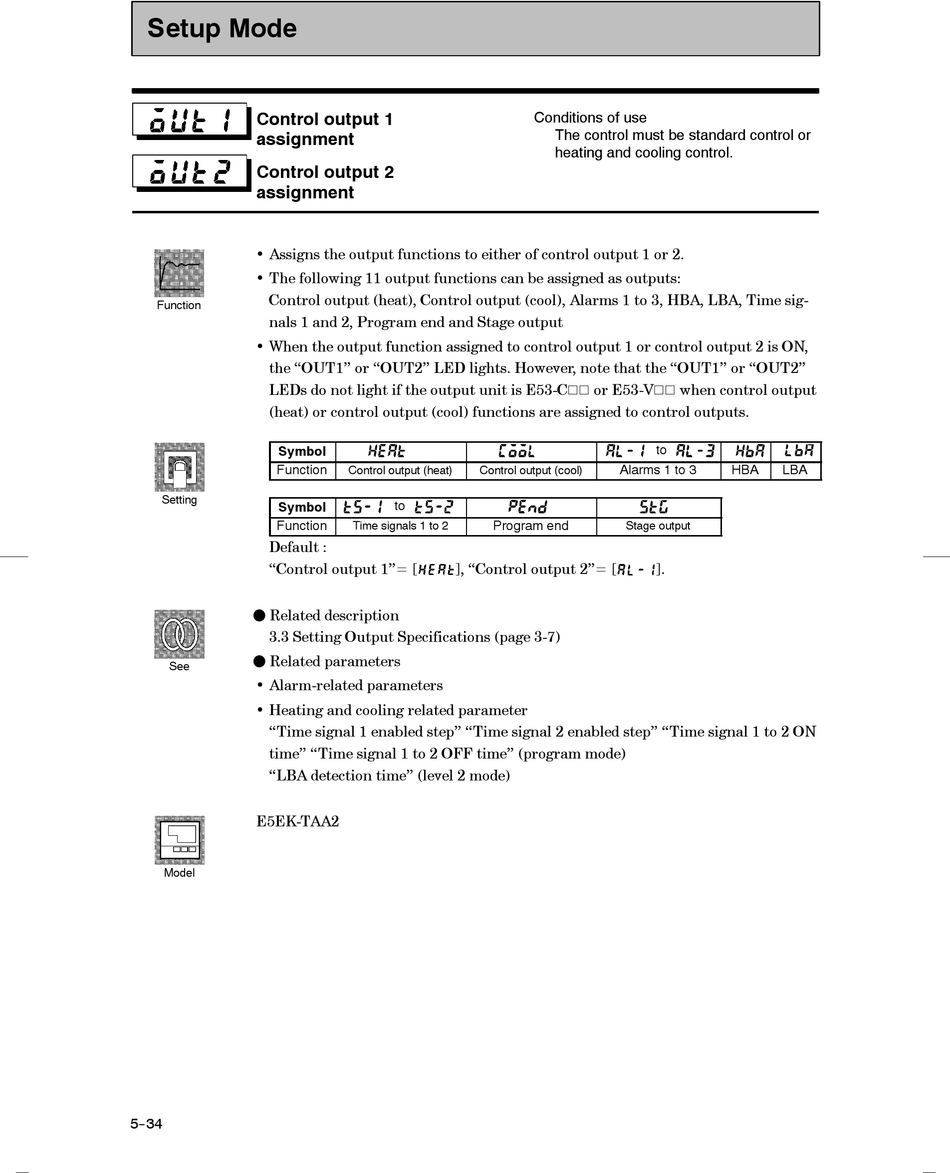

Setup Mode
Control output 1
assignment
Control output 2
assignment
• Assigns the output functions to either of control output 1 or 2.
• The following 11 output functions can be assigned as outputs:
Control output (heat), Control output (cool), Alarms 1 to 3, HBA, LBA, Time sig-
Function
nals 1 and 2, Program end and Stage output
• When the output function assigned to control output 1 or control output 2 is ON,
the "OUT1" or "OUT2" LED lights. However, note that the "OUT1" or "OUT2"
LEDs do not light if the output unit is E53-CVV or E53-VVV when control output
(heat) or control output (cool) functions are assigned to control outputs.
Setting
Default :
"Control output 1"= [
F Related description
3.3 Setting Output Specifications (page 3-7)
F Related parameters
See
• Alarm-related parameters
• Heating and cooling related parameter
"Time signal 1 enabled step" "Time signal 2 enabled step" "Time signal 1 to 2 ON
time" "Time signal 1 to 2 OFF time" (program mode)
"LBA detection time" (level 2 mode)
E5EK-TAA2
Model
5--34
Symbol
Function
Control output (heat)
to
Symbol
Function
Time signals 1 to 2
Conditions of use
The control must be standard control or
heating and cooling control.
Control output (cool)
Program end
], "Control output 2"= [
to
Alarms 1 to 3 HBA
Stage output
].
LBA
