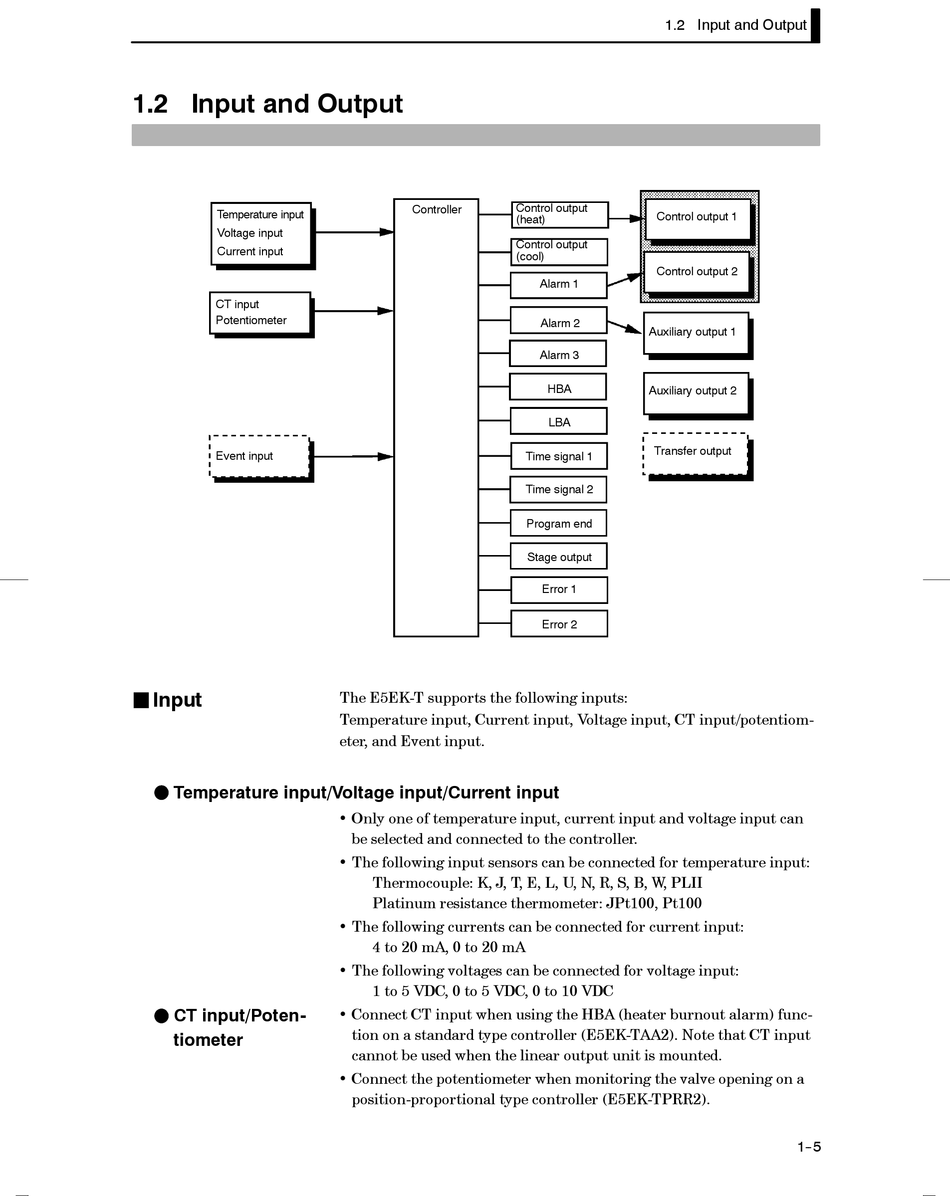

1.2 Input and Output

Temperature input
Voltage input
Current input
CT input
Potentiometer
Event input
J Input
F Temperature input/Voltage input/Current input
F CT input/Poten-
tiometer
Controller
The E5EK-T supports the following inputs:
Temperature input, Current input, Voltage input, CT input/potentiom-
eter, and Event input.
• Only one of temperature input, current input and voltage input can
be selected and connected to the controller.
• The following input sensors can be connected for temperature input:
Thermocouple: K, J, T, E, L, U, N, R, S, B, W, PLII
Platinum resistance thermometer: JPt100, Pt100
• The following currents can be connected for current input:
4 to 20 mA, 0 to 20 mA
• The following voltages can be connected for voltage input:
1 to 5 VDC, 0 to 5 VDC, 0 to 10 VDC
• Connect CT input when using the HBA (heater burnout alarm) func-
tion on a standard type controller (E5EK-TAA2). Note that CT input
cannot be used when the linear output unit is mounted.
• Connect the potentiometer when monitoring the valve opening on a
position-proportional type controller (E5EK-TPRR2).

1.2 Input and Output

Control output
Control output 1
(heat)
Control output
(cool)
Control output 2
Alarm 1
Alarm 2
Auxiliary output 1
Alarm 3
HBA
Auxiliary output 2
LBA
Transfer output
Time signal 1
Time signal 2
Program end
Stage output
Error 1
Error 2
1--5
