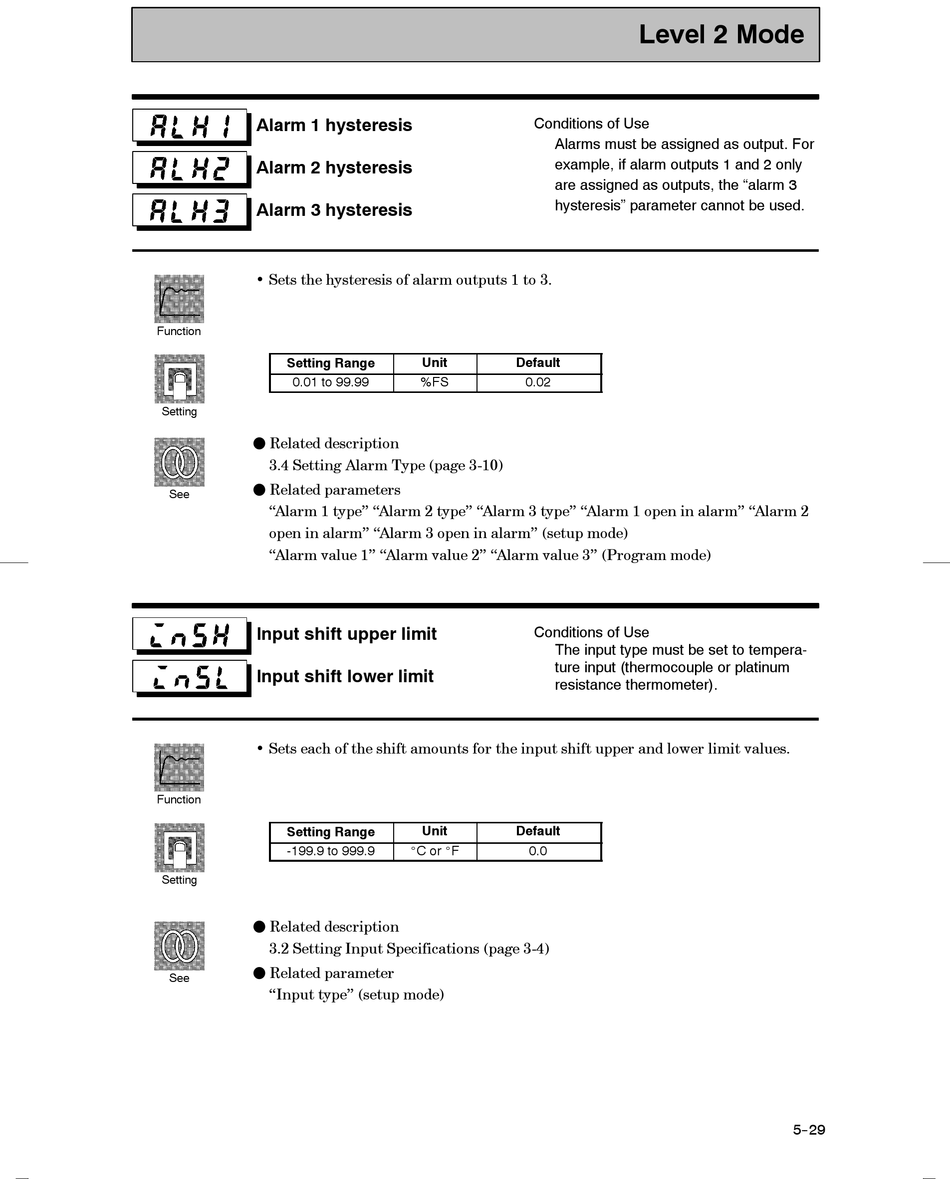

Omron E5EK PROGRAMMABLE TYPE User Manual page 119

Alarm 1 hysteresis
Alarm 2 hysteresis
Alarm 3 hysteresis
• Sets the hysteresis of alarm outputs 1 to 3.
Function
Setting Range
0.01 to 99.99
Setting
F Related description
3.4 Setting Alarm Type (page 3-10)
F Related parameters
See
"Alarm 1 type" "Alarm 2 type" "Alarm 3 type" "Alarm 1 open in alarm" "Alarm 2
open in alarm" "Alarm 3 open in alarm" (setup mode)
"Alarm value 1" "Alarm value 2" "Alarm value 3" (Program mode)
Input shift upper limit
Input shift lower limit
• Sets each of the shift amounts for the input shift upper and lower limit values.
Function
Setting Range
-199.9 to 999.9
Setting
F Related description
3.2 Setting Input Specifications (page 3-4)
F Related parameter
See
"Input type" (setup mode)
Conditions of Use
Alarms must be assigned as output. For
example, if alarm outputs 1 and 2 only
are assigned as outputs, the "alarm 3
hysteresis" parameter cannot be used.
Unit Default
%FS 0.02
Conditions of Use
The input type must be set to tempera-
ture input (thermocouple or platinum
resistance thermometer).
Unit Default
_C or _F 0.0
Level 2 Mode
5--29
