CHAPTER 3 BASIC OPERATION
F Summary of
alarm operations
3--12

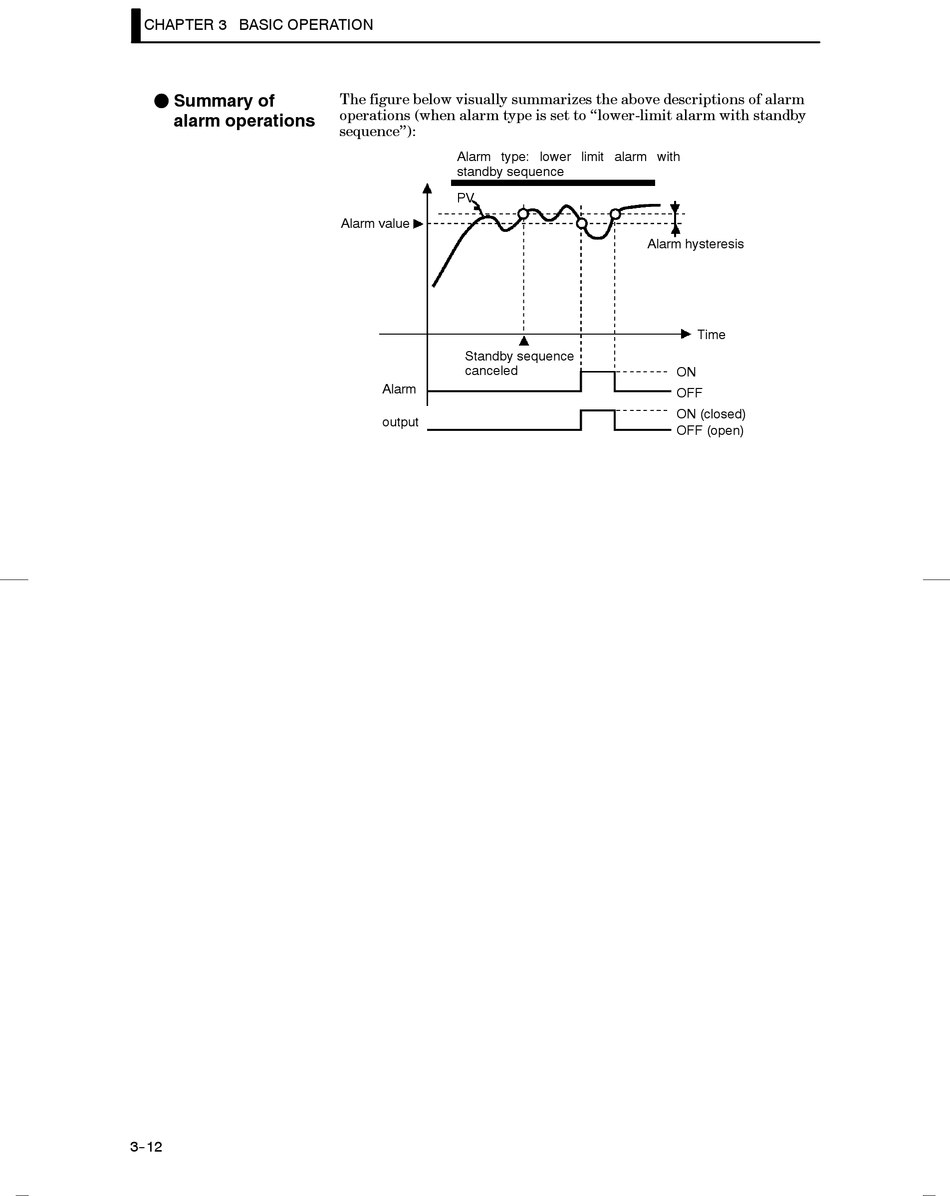

The figure below visually summarizes the above descriptions of alarm
operations (when alarm type is set to "lower-limit alarm with standby
sequence"):
Alarm type: lower limit alarm with
standby sequence
PV
Alarm value
Standby sequence
canceled
Alarm
output
Alarm hysteresis
Time
ON
OFF
ON (closed)
OFF (open)
