CHAPTER 5 PARAMETERS

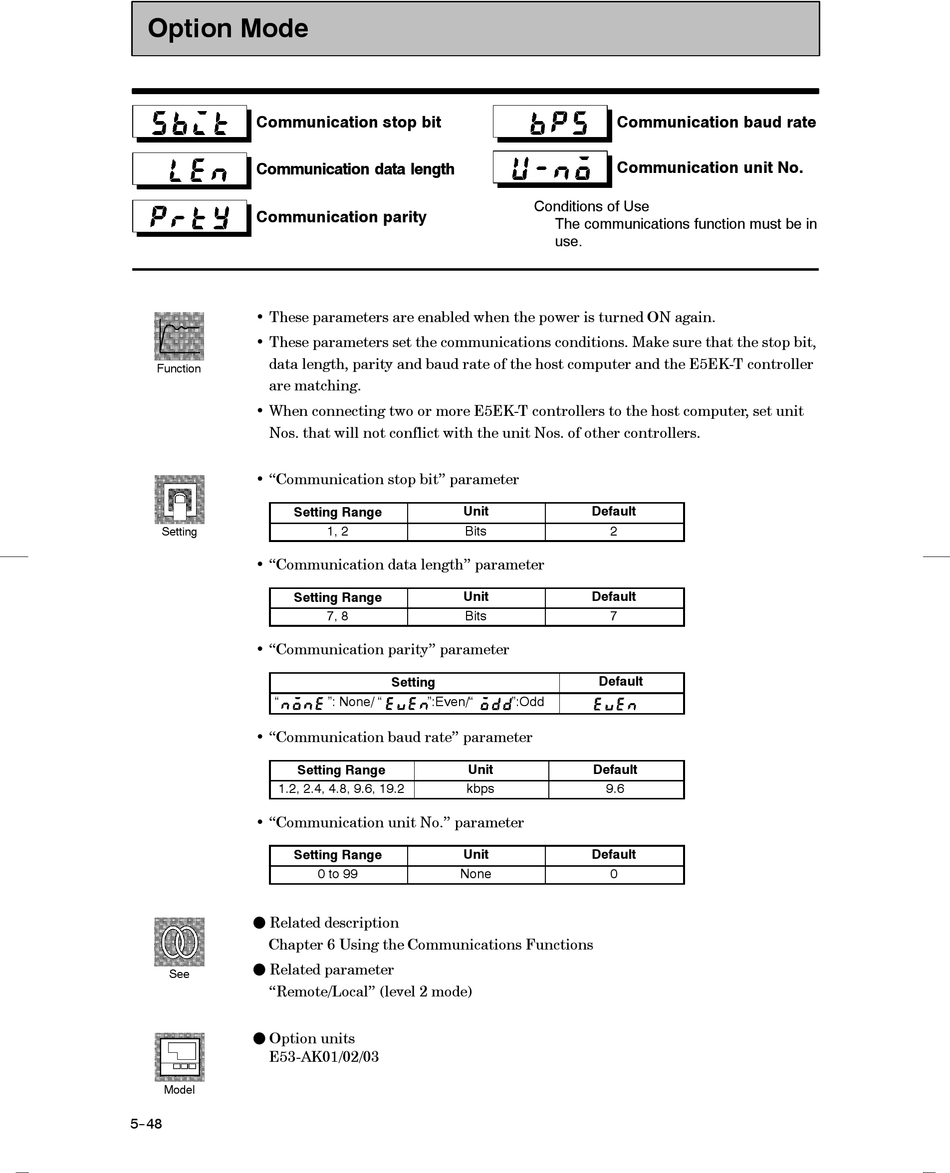

Option Mode
Communication stop bit
Communication data length
Communication parity
• These parameters are enabled when the power is turned ON again.
• These parameters set the communications conditions. Make sure that the stop bit,
data length, parity and baud rate of the host computer and the E5EK-T controller
Function
are matching.
• When connecting two or more E5EK-T controllers to the host computer, set unit
Nos. that will not conflict with the unit Nos. of other controllers.
• "Communication stop bit" parameter
Setting
• "Communication data length" parameter
• "Communication parity" parameter
"
• "Communication baud rate" parameter
• "Communication unit No." parameter
F Related description
Chapter 6 Using the Communications Functions
F Related parameter
See
"Remote/Local" (level 2 mode)
F Option units
E53-AK01/02/03
Model
5--48
Setting Range
1, 2
Setting Range
7, 8
Setting
": None/ "
Setting Range
1.2, 2.4, 4.8, 9.6, 19.2
Setting Range
0 to 99
Conditions of Use
The communications function must be in
use.
Unit
Bits
Unit
Bits
":Even/" ":Odd
Unit
kbps
Unit
None
Communication baud rate
Communication unit No.
Default
2
Default
7
Default
Default
9.6
Default
0
