CHAPTER 5 PARAMETERS

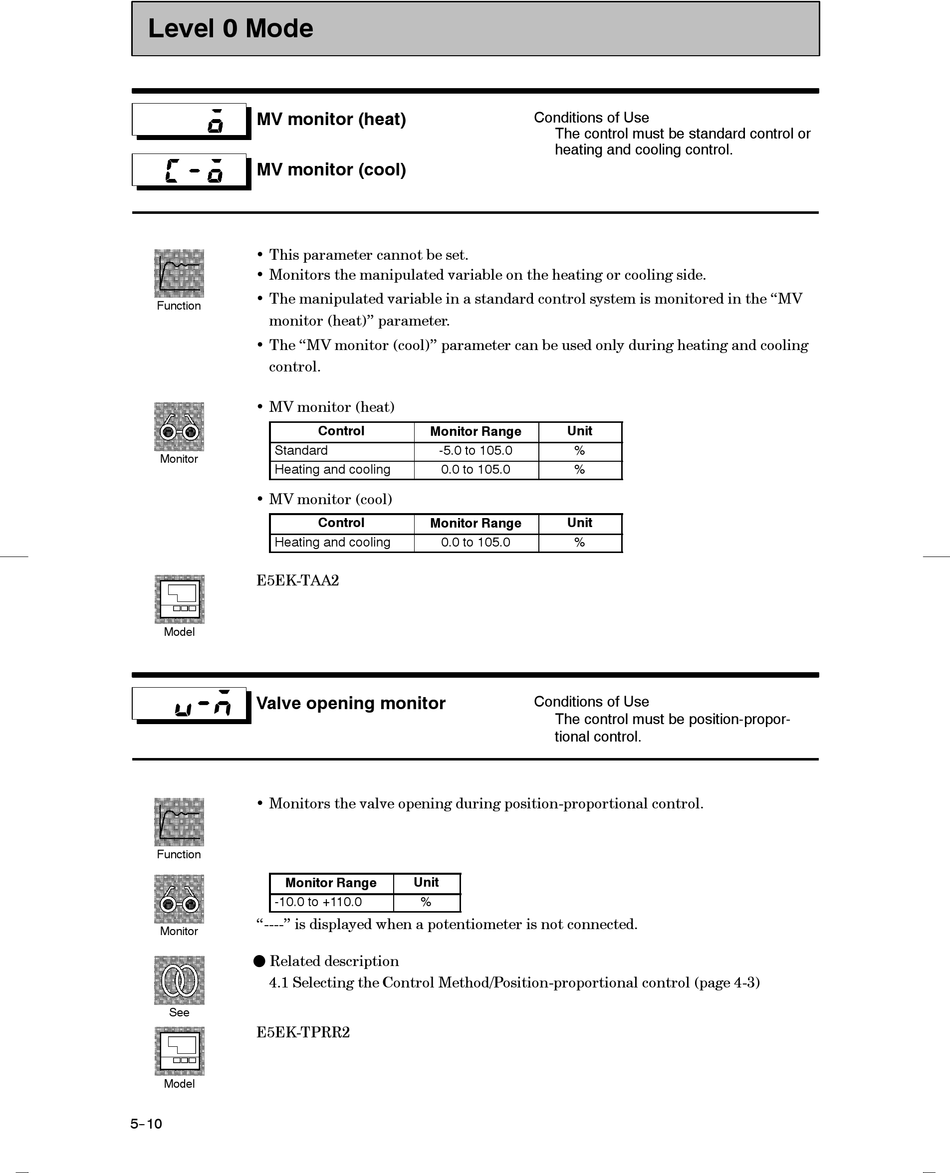

Level 0 Mode
MV monitor (heat)
MV monitor (cool)
• This parameter cannot be set.
• Monitors the manipulated variable on the heating or cooling side.
• The manipulated variable in a standard control system is monitored in the "MV
Function
monitor (heat)" parameter.
• The "MV monitor (cool)" parameter can be used only during heating and cooling
control.
• MV monitor (heat)
Standard
Monitor
Heating and cooling
• MV monitor (cool)
Heating and cooling
E5EK-TAA2
Model
Valve opening monitor
• Monitors the valve opening during position-proportional control.
Function
-10.0 to +110.0
"----" is displayed when a potentiometer is not connected.
Monitor
F Related description
4.1 Selecting the Control Method/Position-proportional control (page 4-3)
See
E5EK-TPRR2
Model
5--10
Control
Control
Unit
Monitor Range
%
Conditions of Use
The control must be standard control or
heating and cooling control.
Unit
Monitor Range
-5.0 to 105.0 %
0.0 to 105.0 %
Unit
Monitor Range
0.0 to 105.0 %
Conditions of Use
The control must be position-propor-
tional control.
