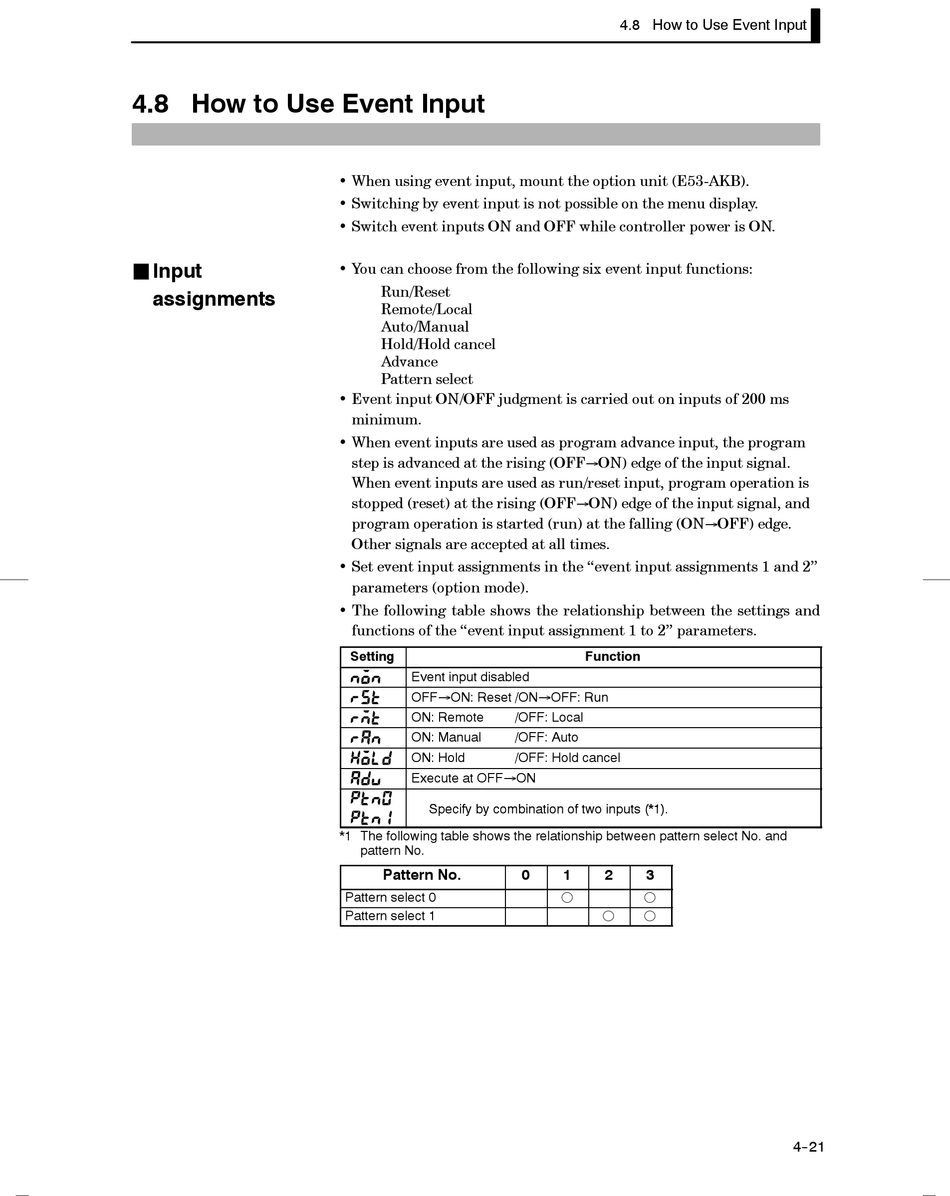

4.8 How to Use Event Input

J Input
assignments
• When using event input, mount the option unit (E53-AKB).
• Switching by event input is not possible on the menu display.
• Switch event inputs ON and OFF while controller power is ON.
• You can choose from the following six event input functions:
Run/Reset
Remote/Local
Auto/Manual
Hold/Hold cancel
Advance
Pattern select
• Event input ON/OFF judgment is carried out on inputs of 200 ms
minimum.
• When event inputs are used as program advance input, the program
step is advanced at the rising (OFF
When event inputs are used as run/reset input, program operation is
stopped (reset) at the rising (OFF
program operation is started (run) at the falling (ON
Other signals are accepted at all times.
• Set event input assignments in the "event input assignments 1 and 2"
parameters (option mode).
• The following table shows the relationship between the settings and
functions of the "event input assignment 1 to 2" parameters.
Setting
Event input disabled
OFF→ON: Reset /ON→OFF: Run
ON: Remote
ON: Manual
ON: Hold
Execute at OFF→ON
Specify by combination of two inputs (*1). Specify by combination of two inputs (*1)
*1 The following table shows the relationship between pattern select No. and
pattern No.
Pattern No.
Pattern select 0
Pattern select 1

4.8 How to Use Event Input

ON) edge of the input signal.
→
ON) edge of the input signal, and
→
Function
/OFF: Local
/OFF: Auto
/OFF: Hold cancel
0 1 2 3
f f
f f
OFF) edge.
→
4--21
