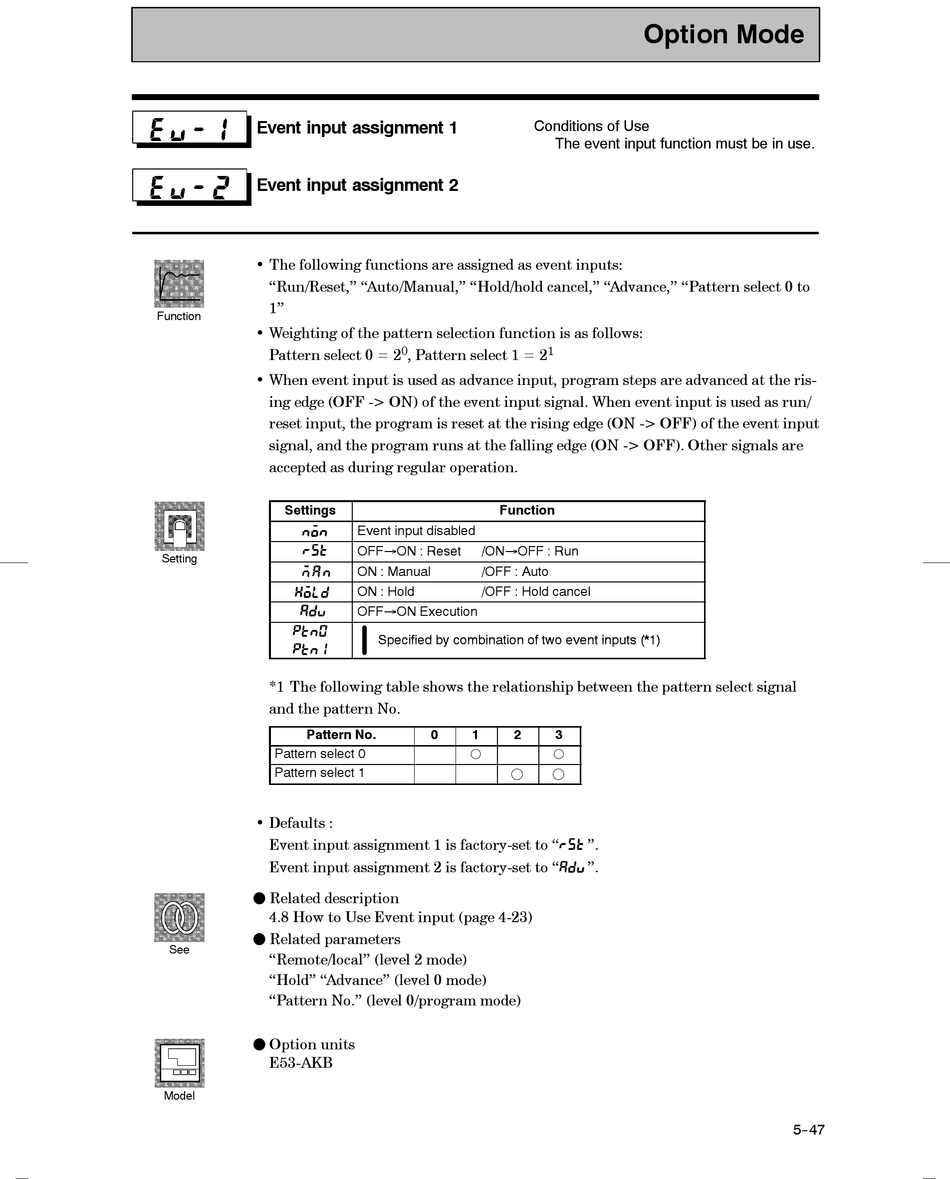

Omron E5EK PROGRAMMABLE TYPE User Manual page 137

Event input assignment 1
Event input assignment 2
• The following functions are assigned as event inputs:
"Run/Reset," "Auto/Manual," "Hold/hold cancel," "Advance," "Pattern select 0 to
1"
Function
• Weighting of the pattern selection function is as follows:
Pattern select 0 = 2
• When event input is used as advance input, program steps are advanced at the ris-
ing edge (OFF -> ON) of the event input signal. When event input is used as run/
reset input, the program is reset at the rising edge (ON -> OFF) of the event input
signal, and the program runs at the falling edge (ON -> OFF). Other signals are
accepted as during regular operation.
Settings
Setting
*1 The following table shows the relationship between the pattern select signal
and the pattern No.
Pattern select 0
Pattern select 1
• Defaults :
Event input assignment 1 is factory-set to "
Event input assignment 2 is factory-set to "
F Related description
4.8 How to Use Event input (page 4-23)
F Related parameters
See
"Remote/local" (level 2 mode)
"Hold" "Advance" (level 0 mode)
"Pattern No." (level 0/program mode)
F Option units
E53-AKB
Model
0
, Pattern select 1 = 2
Event input disabled
OFF→ON : Reset
ON : Manual
ON : Hold
OFF→ON Execution
Specified by combination of two event inputs (*1) Specified by combination of two event inputs (*1)
Pattern No. 0
Conditions of Use
The event input function must be in use.
1
Function
/ON→OFF : Run
/OFF : Auto
/OFF : Hold cancel
1 2 3
○ ○
○ ○
".
".
Option Mode
5--47
