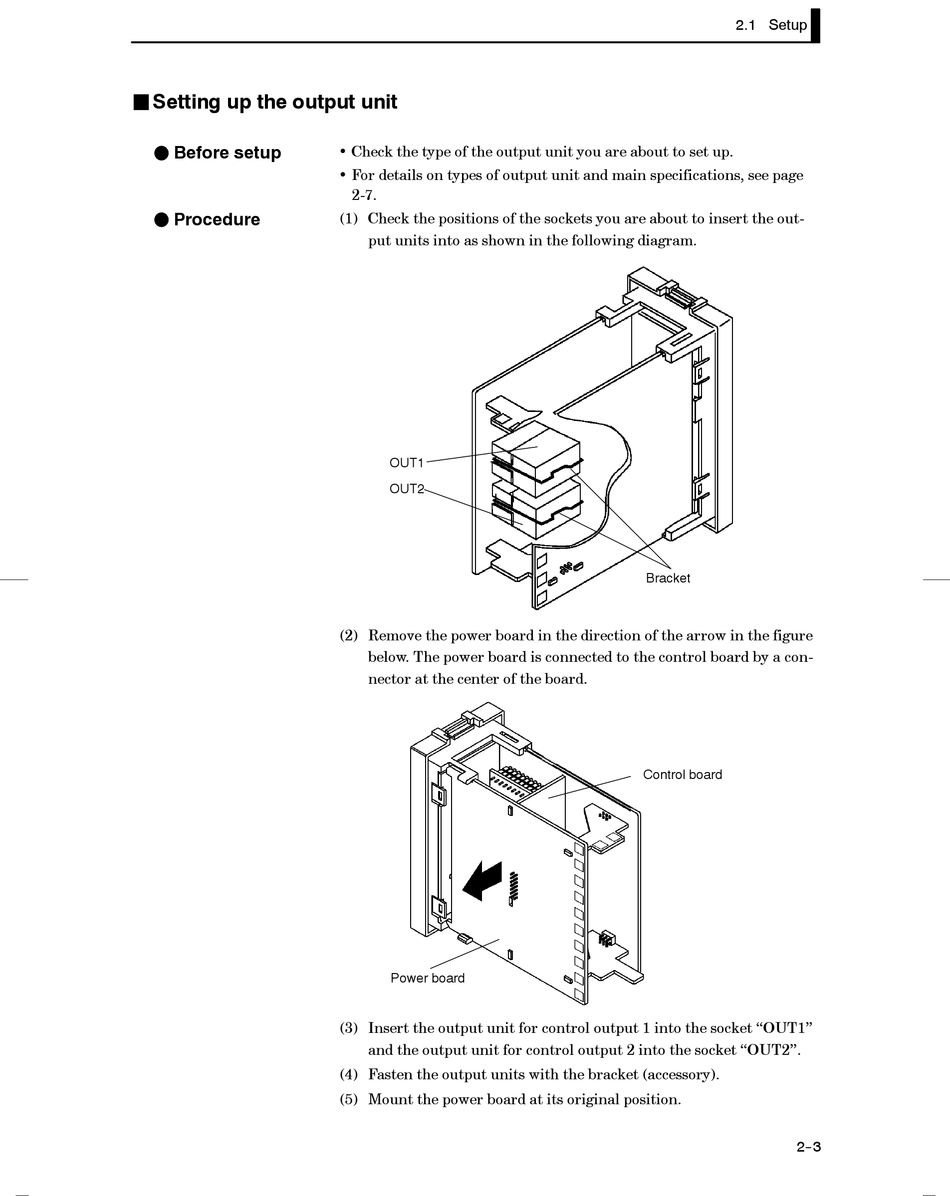

J Setting up the output unit
F Before setup
F Procedure
• Check the type of the output unit you are about to set up.
• For details on types of output unit and main specifications, see page
2-7.
(1) Check the positions of the sockets you are about to insert the out-
put units into as shown in the following diagram.
OUT1
OUT2
(2) Remove the power board in the direction of the arrow in the figure
below. The power board is connected to the control board by a con-
nector at the center of the board.
Power board
(3) Insert the output unit for control output 1 into the socket "OUT1"
and the output unit for control output 2 into the socket "OUT2".
(4) Fasten the output units with the bracket (accessory).
(5) Mount the power board at its original position.
2.1 Setup
Bracket
Control board
2--3
