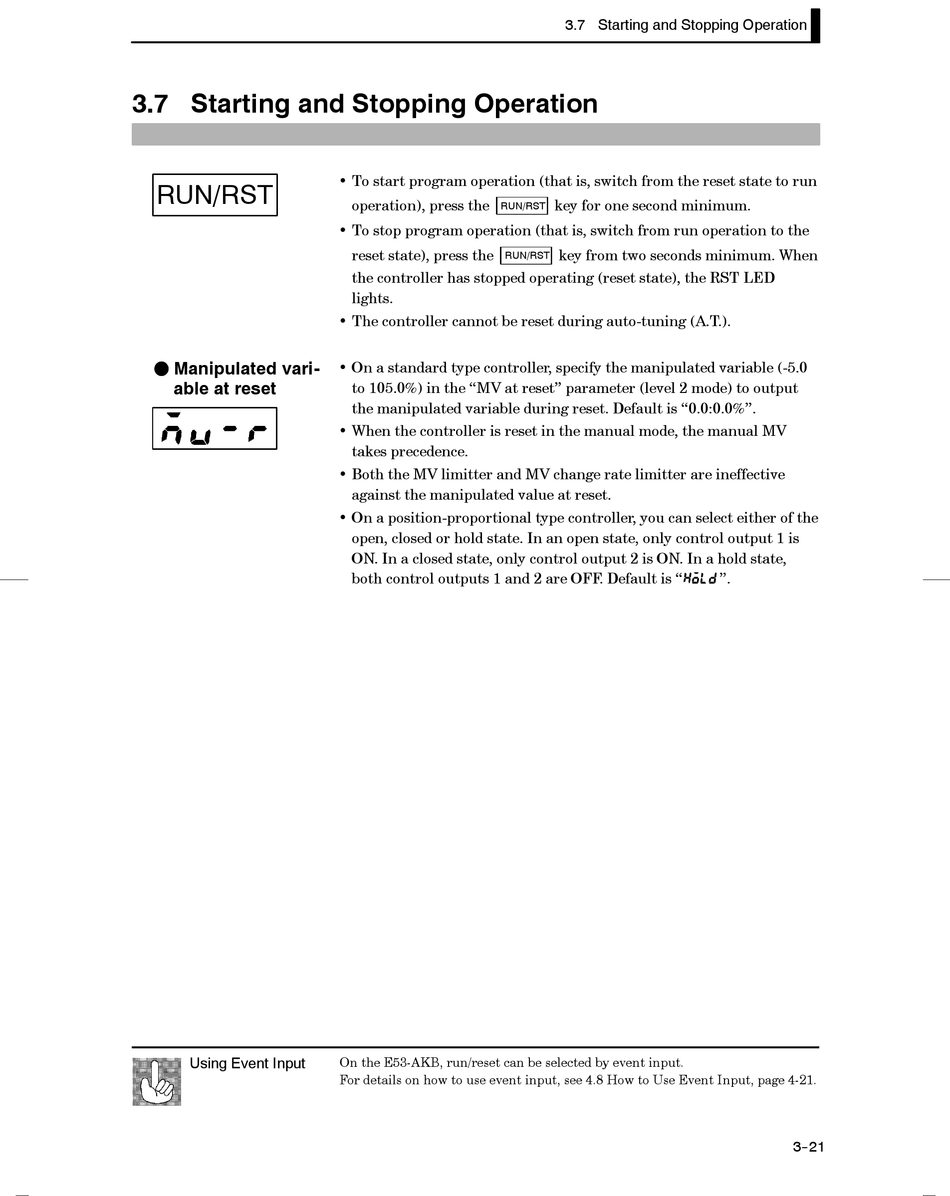

3.7 Starting and Stopping Operation

RUN/RST
F Manipulated vari-
able at reset
Using Event Input
• To start program operation (that is, switch from the reset state to run
operation), press the
• To stop program operation (that is, switch from run operation to the
reset state), press the
the controller has stopped operating (reset state), the RST LED
lights.
• The controller cannot be reset during auto-tuning (A.T.).
• On a standard type controller, specify the manipulated variable (-5.0
to 105.0%) in the "MV at reset" parameter (level 2 mode) to output
the manipulated variable during reset. Default is "0.0:0.0%".
• When the controller is reset in the manual mode, the manual MV
takes precedence.
• Both the MV limitter and MV change rate limitter are ineffective
against the manipulated value at reset.
• On a position-proportional type controller, you can select either of the
open, closed or hold state. In an open state, only control output 1 is
ON. In a closed state, only control output 2 is ON. In a hold state,
both control outputs 1 and 2 are OFF. Default is "
On the E53-AKB, run/reset can be selected by event input.
For details on how to use event input, see 4.8 How to Use Event Input, page 4-21.
