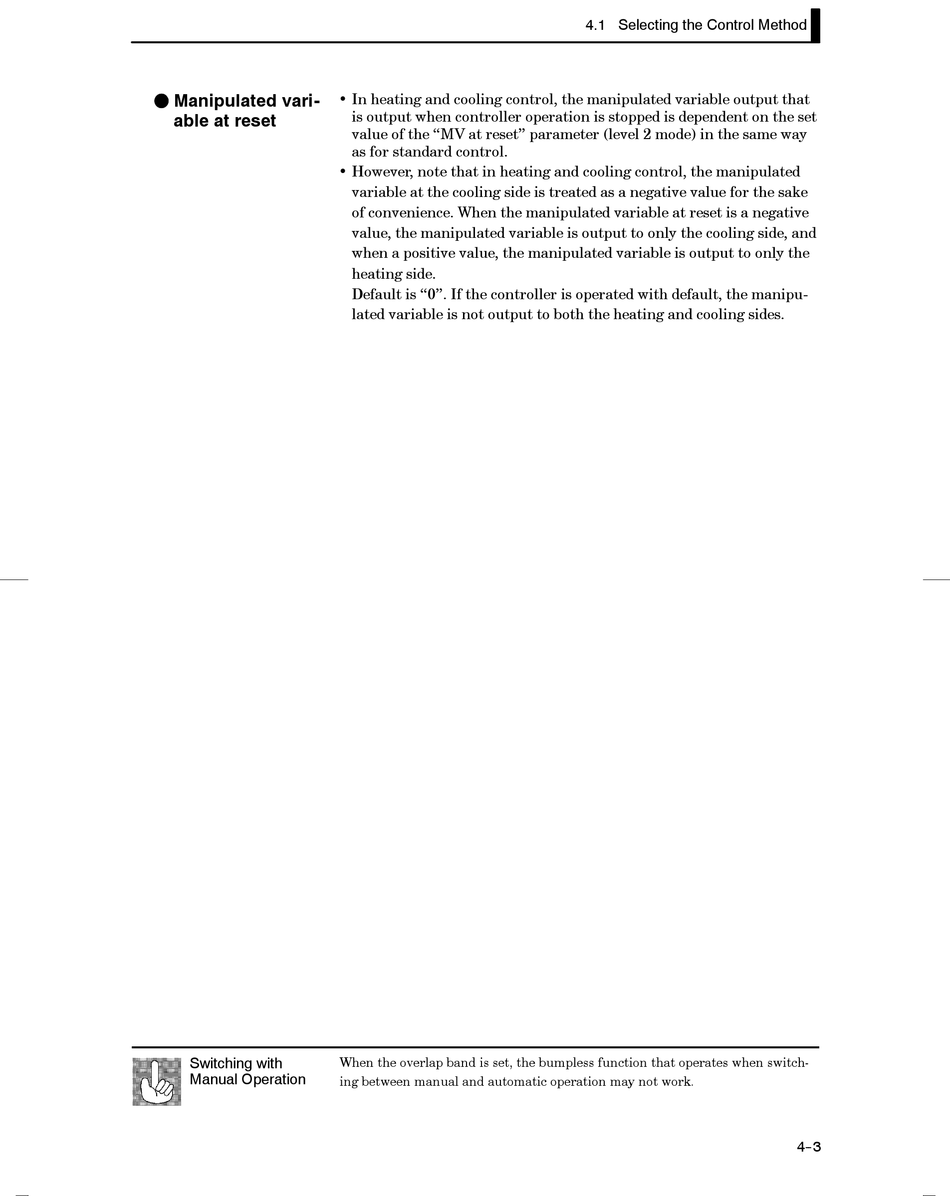

F Manipulated vari-

able at reset

Switching with

Manual Operation

• In heating and cooling control, the manipulated variable output that

is output when controller operation is stopped is dependent on the set

value of the "MV at reset" parameter (level 2 mode) in the same way

as for standard control.

• However, note that in heating and cooling control, the manipulated

variable at the cooling side is treated as a negative value for the sake

of convenience. When the manipulated variable at reset is a negative

value, the manipulated variable is output to only the cooling side, and

when a positive value, the manipulated variable is output to only the

heating side.

Default is "0". If the controller is operated with default, the manipu-

lated variable is not output to both the heating and cooling sides.

When the overlap band is set, the bumpless function that operates when switch-

ing between manual and automatic operation may not work.
