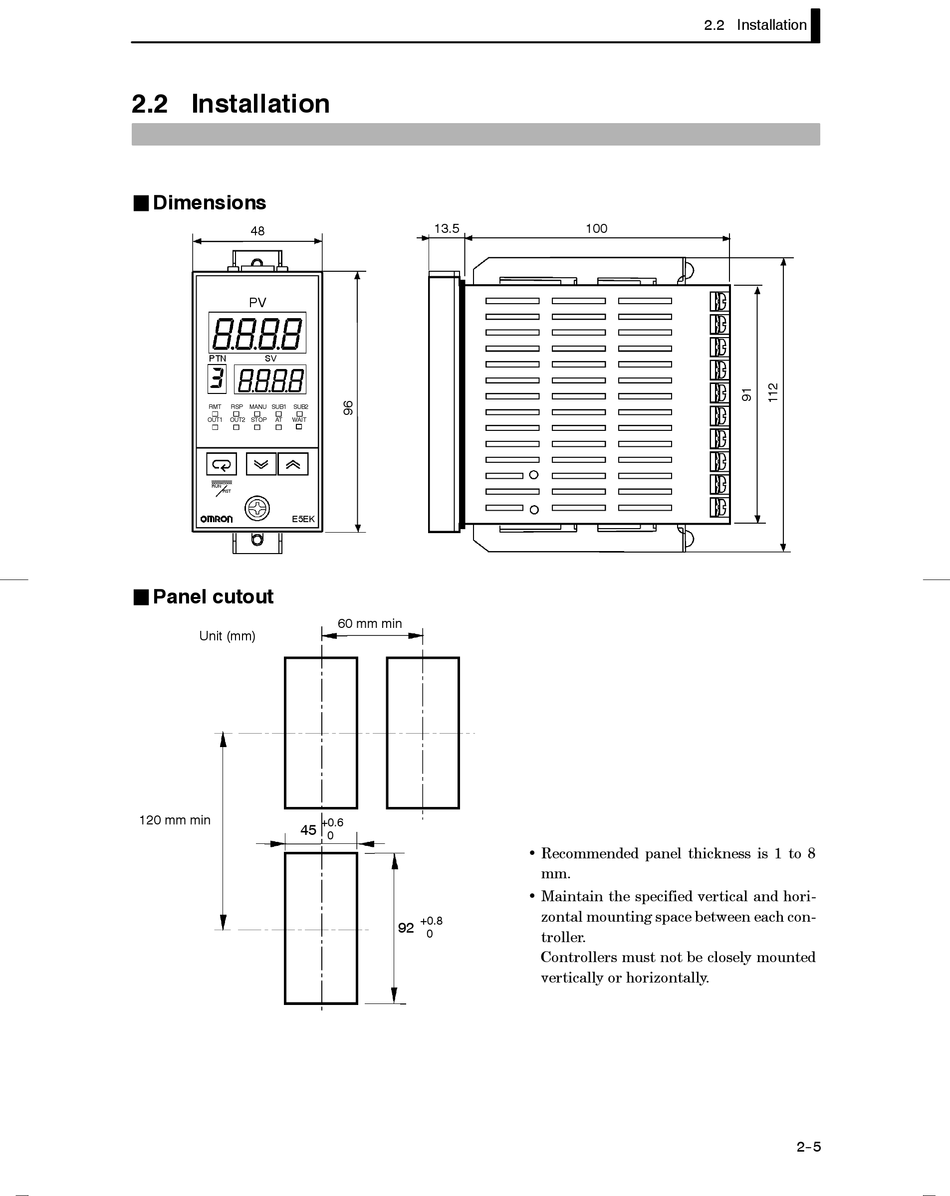

2.2 Installation

J Dimensions
48
PV
PTN SV
RMT RSP MANU SUB1
OUT1 OUT2 STOP AT
RUN
RST
J Panel cutout
Unit (mm)
120 mm min
13.5
SUB2
WAIT
E5EK
60 mm min
+0.6
45
0
+0.8
92
0
100
• Recommended panel thickness is 1 to 8
mm.
• Maintain the specified vertical and hori-
zontal mounting space between each con-
troller.
Controllers must not be closely mounted
vertically or horizontally.
2.2 Installation
2--5
