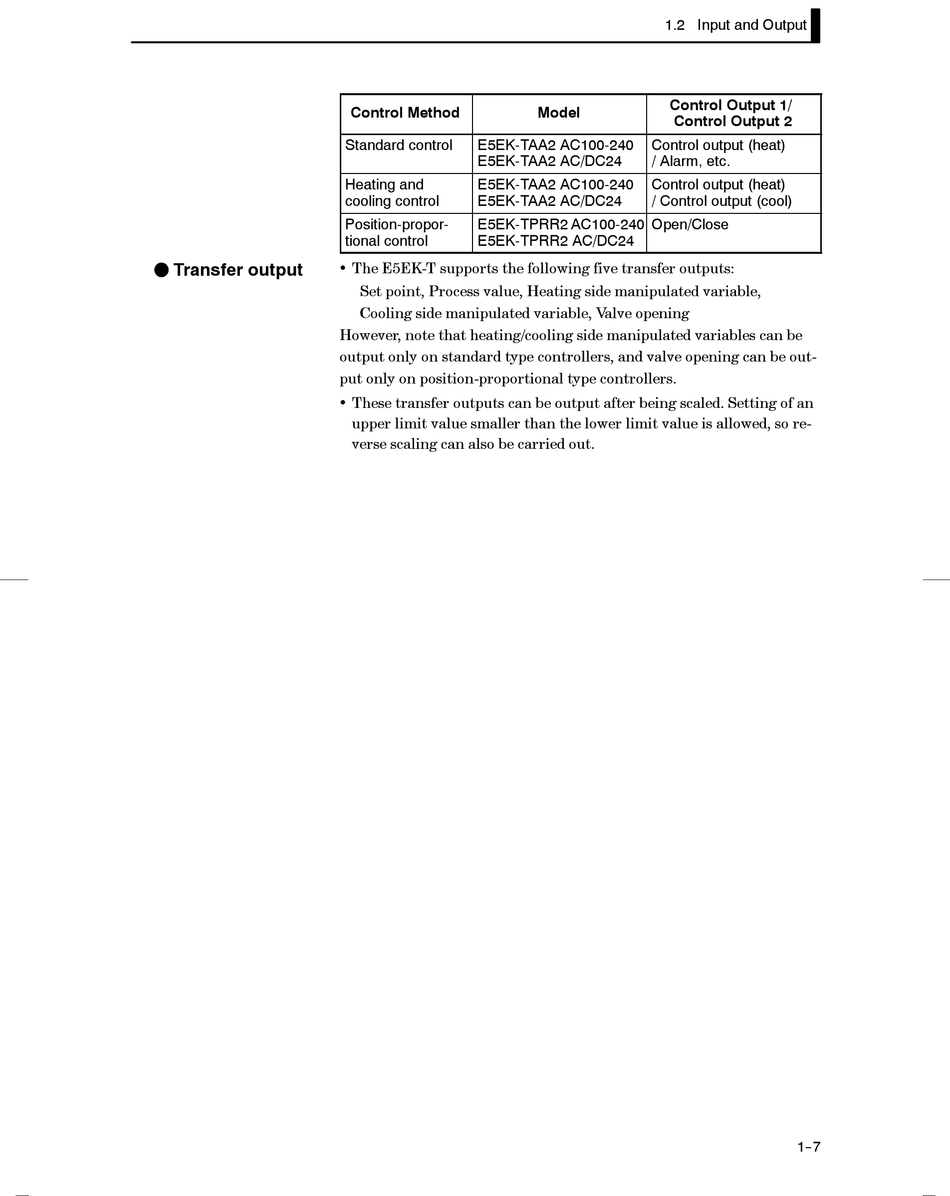

Omron E5EK PROGRAMMABLE TYPE User Manual page 17

F Transfer output
Control Method
Standard control E5EK-TAA2 AC100-240
E5EK-TAA2 AC/DC24
Heating and E5EK-TAA2 AC100-240
cooling control E5EK-TAA2 AC/DC24
Position-propor- E5EK-TPRR2 AC100-240
tional control E5EK-TPRR2 AC/DC24
• The E5EK-T supports the following five transfer outputs:
Set point, Process value, Heating side manipulated variable,
Cooling side manipulated variable, Valve opening
However, note that heating/cooling side manipulated variables can be
output only on standard type controllers, and valve opening can be out-
put only on position-proportional type controllers.
• These transfer outputs can be output after being scaled. Setting of an
upper limit value smaller than the lower limit value is allowed, so re-
verse scaling can also be carried out.
1.2 Input and Output
Control Output 1/
Model
Control Output 2
Control output (heat)
/ Alarm, etc.
Control output (heat)
/ Control output (cool)
Open/Close
