Installing The Control Cables Into The Control Terminals - Danfoss iC7 Series Design Manual

Design Guide | iC7 Series Air-cooled System Modules
1

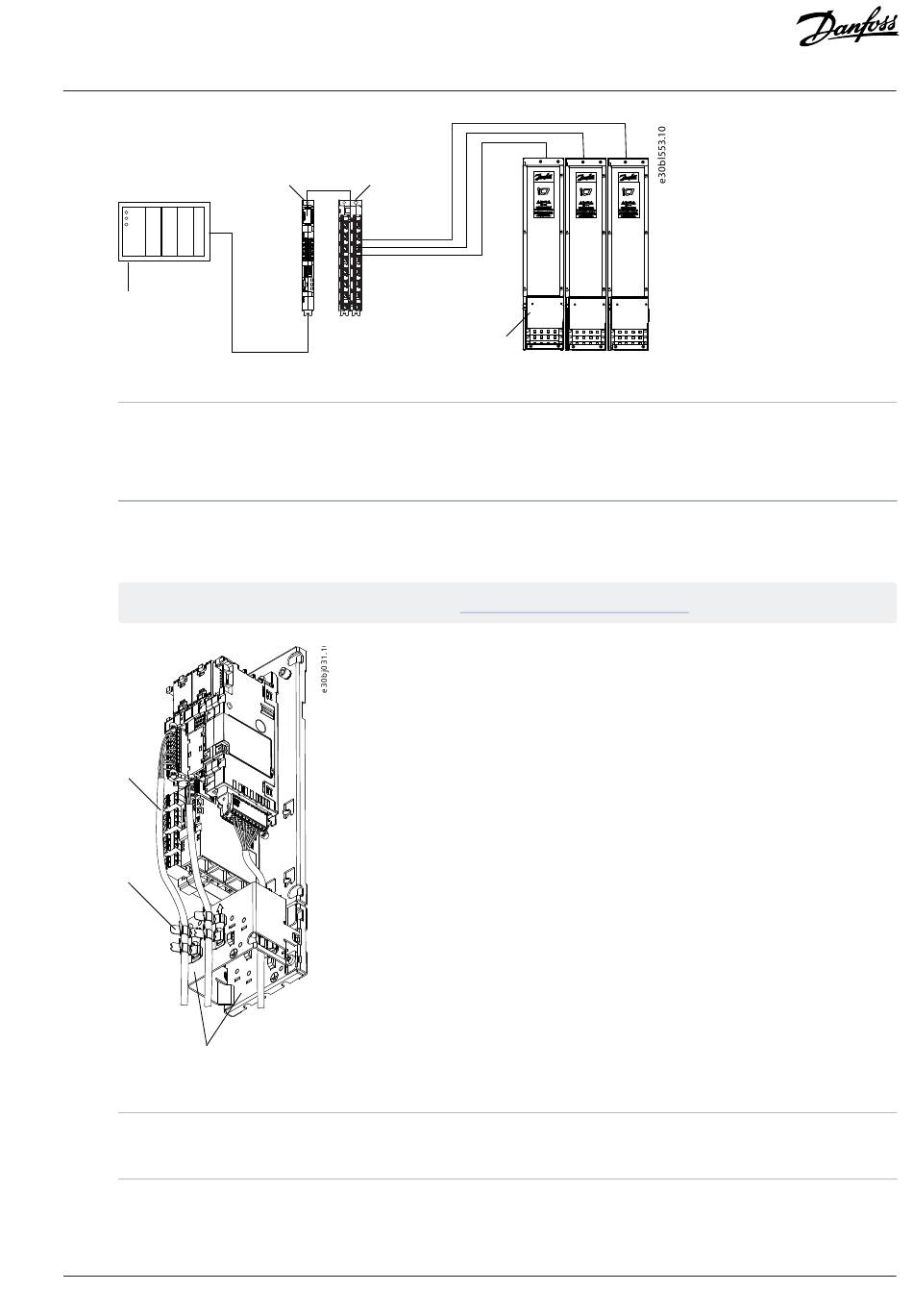

Figure 51: Connecting the Fieldbus Cable and the Fiber Cables
1
PLC (not included in the delivery)
3
Control board
5
Fiber cables

Installing the Control Cables into the Control Terminals

8.15
1.
Install the control cables into the control terminals.
See the pin numbering of the I/O and Relay Option in
1
2
3
Figure 52: Example of Installing the Control Cables
1
Control cable
3
Grounding plates
2.
Strip the control cables. Attach the control cables to the cable clamps on the suitable grounding plate.
Danfoss Drives Oy © 2024.03
4
3
5
2
6
2
Fieldbus cable
4
Star coupler board
6
Power units
8.8 I/O and Relay Option Connections.
2
Cable clamp
