Design Guide | iC7 Series Air-cooled System Modules
B
A
+24V
A
Normal external supply
C
Fuse (Fuse rating depends on the complete daisychained
system configuration. Maximum 10 A.)
E
Power daisy-chaining

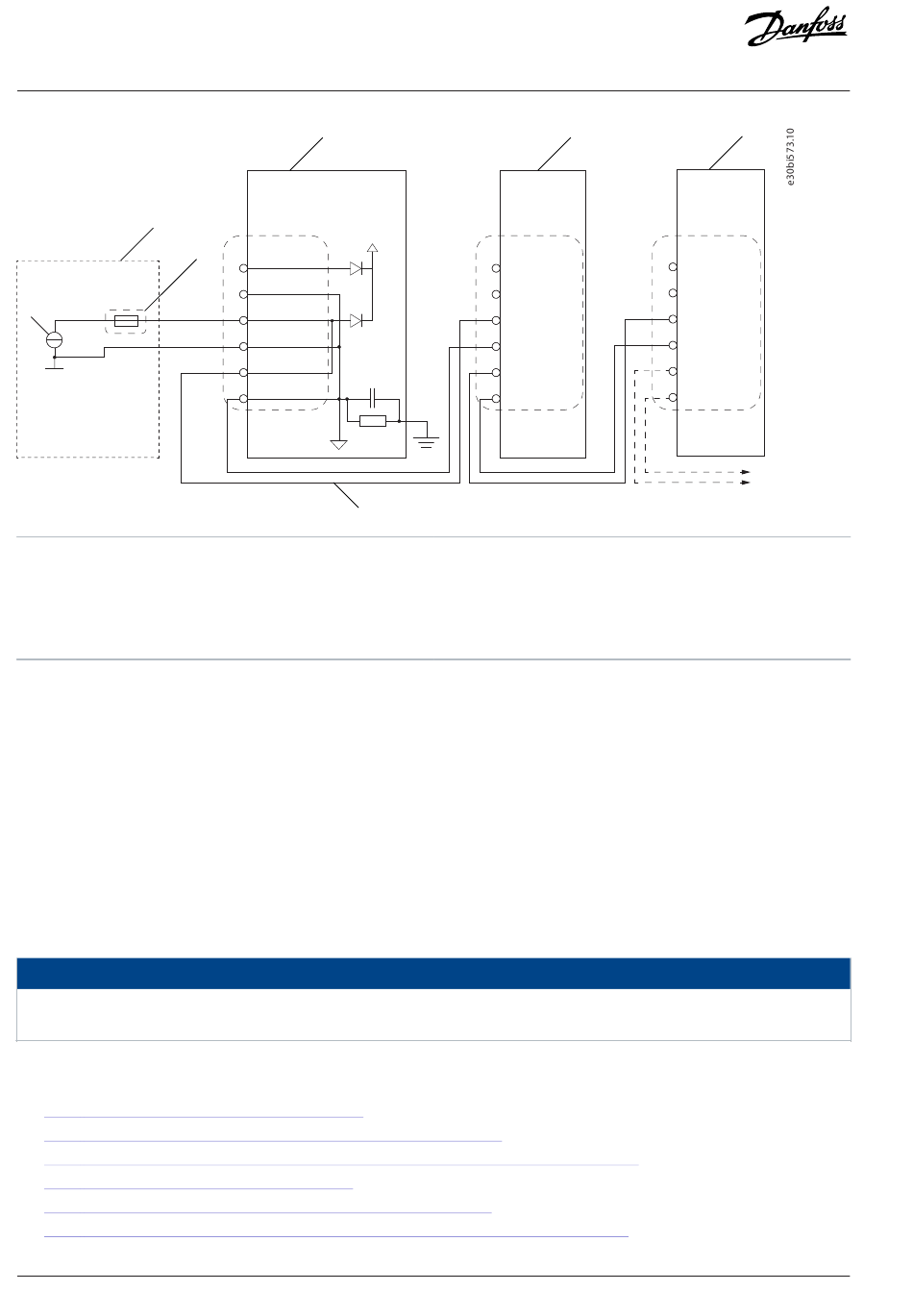

Figure 102: Wiring Diagram of a Daisy-chained +24 V Supply for the Control Units

Cable Sizes

10.4

General Cable Size Information

10.4.1
The IEC cable sizing is based on the ambient temperature of 40 °C (104 °F), cables laid side by side on cable ladders, maximum 9 cables
per ladder, and 3 ladders on top of each other. The cables are XLPE insulated, with a maximum conductor temperature of 90 °C (194 °F).
In other conditions, refer to the local safety regulations, the input voltage, and the load current of the drive.
The UL cable sizing is based on the ambient temperature of 40 °C (104 °F), 75 °C (167 °F) rated copper cables, and multicore cables
installed raceways or not stacked or bundled longer than 600 mm (24 in) without maintaining spacing. In other conditions, refer to the
local safety regulations, the input voltage, and the load current of the drive.
Use symmetrical cabling with system modules connected in parallel. Each module must have the same number of cables with an
equal cross-section.
The cable size tables for the air-cooled system modules can be found with these links.
10.4.2 Mains Cable Sizes for AFE Modules, 380–500 V
l
10.4.3 Motor Cable Sizes Recommendation for Inverter Modules, 380–500 V
l
10.4.4 Motor Cable Size Recommendations for Inverter Modules with Integration Units, 380–500 V
l
10.4.5 Mains Cable Sizes for AFE Modules, UL 480 V
l
10.4.6 Motor Cable Sizes Recommendation for Inverter Modules, UL 480 V
l
10.4.7 Motor Cable Size Recommendations for Inverter Modules with Integration Units, UL 480 V
l
118
| Danfoss Drives Oy © 2024.03
D
+24V
X62
C
101
+24V input
102
GND
61
+24V ext input
62
GND
63
+24V output
64
GND
E
D
X62
101
+24V input
102
GND
61
+24V ext input
62
GND
63
+24V output
64
GND
B
Reference design, daisy-chained +24 V power
D
Control board
  NOTICE
D
X62
101
+24V input
102
GND
61
+24V ext input
62
GND
63
+24V output
64
GND
AJ389643111587en-000101 / 172F6361A
