Design Guide | iC7 Series Air-cooled System Modules
RISK OF FIRE OR EXPLOSION
Do not recharge, disassemble, or dispose of in fire.
l
1.
Locate the RTC battery holder on the control board of the control unit.
2.
Pull from the handle next to the text RTC BAT.

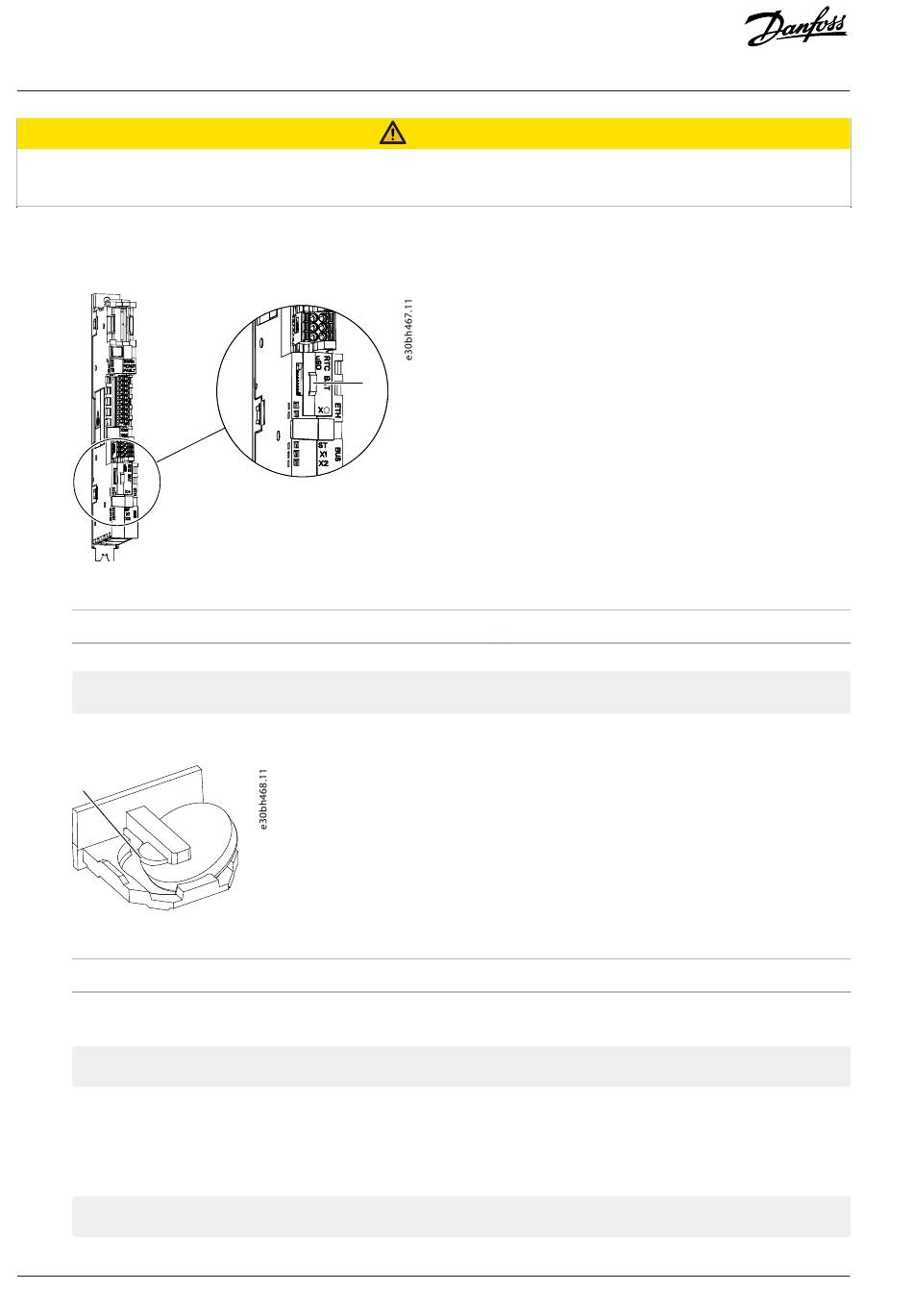

Figure 56: Location of the RTC Battery
1
The handle
Ü
The battery holder slides out.
3.
To remove the battery, push it on the tooth side and slide it out of the plastic holder.
1
Figure 57: Replacing the Battery
1
The tooth
4.
To put a new battery in place, start from the opposite side and slide it into the slot in the holder, the plus side towards the tooth.
The correct battery type is a coin type lithium battery BR1632.
5.
Push the holder back into the control board.

Removing the Fan Assembly

9.4
1.
Remove the 2 M5x10 screws (141L3849) and open the fan cover.
Use a TX25 bit to remove the screws.
76
| Danfoss Drives Oy © 2024.03
CAUTION
1
AJ389643111587en-000101 / 172F6361A
