Design Guide | iC7 Series Air-cooled System Modules

Overview of the iC7 Series Air-cooled System Modules

4

System Modules

4.1
The air-cooled system modules come in 2 main mechanical variants: with or without an integration unit. The system modules are a
size-optimized solution, and the system modules with integration units are intended for easy installation into cabinets, and provide
integrated filters. The system modules with integration units also provide possibility for back-channel cooling.
The protection rating of the power units is IP00, and that is why the drive must be installed in a cabinet or another enclosure after
delivery.
The system modules include:
Regenerative AFE modules
l
Low-harmonic AFE modules
l
Grid Converter (GC) modules
l
Inverter (INU) modules
l
LCL Filters for the AFE modules are available as separate items.

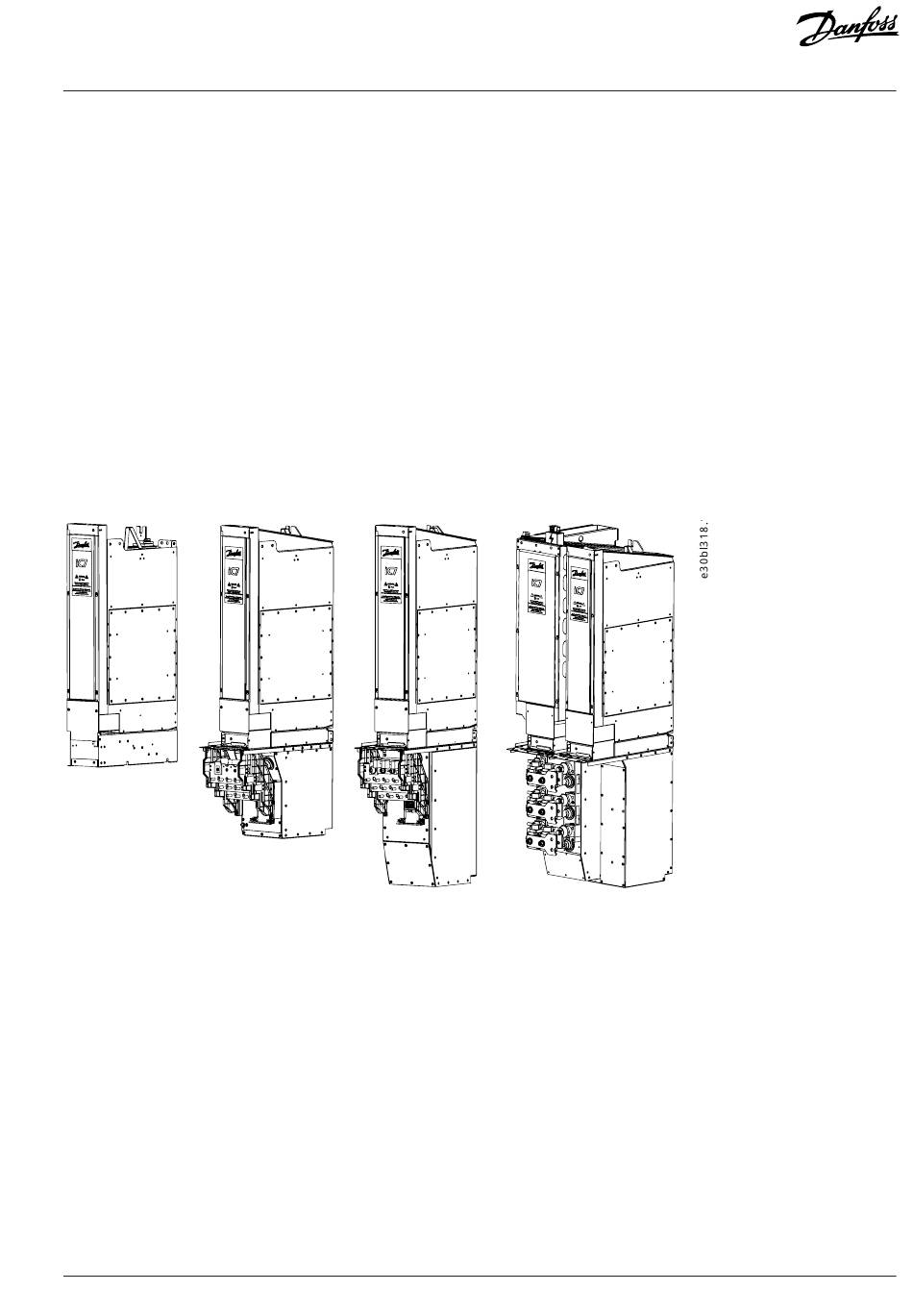

Figure 1: Overview of IM10, and IR10 with a Short and a Standard Integration Unit, and the LCL Filter and the AFE Module

Contents of the Delivery

4.2
The system modules are delivered horizontally on a wooden pallet. The integration unit is delivered in a separate package. Open the
package only when you install the product. It is not recommended to keep power units in storage in the vertical position.
Contents of the Delivery:
The IP00 power units
l
Control unit with ordered options
l
A set of optical fiber cables
l
Control panel with a cable to control unit (option)
l
An accessories bag
l
Product documentation
l
Integration unit (option +AExx)
l
