Design Guide | iC7 Series Air-cooled System Modules
iC7-Automation
1
M/C: IC7-60SA3A05-1630E00F3
+AE10+AJFX+AKFX+BAMT+BDC1+BEXX+BF20+BGK1+BH15+BK03+BL15
+CAX0+DAAU+EGIN+EHEN
2
P/N: 137G1990
S/N: DC1234XX - 1234 - DC
3
POWER: 1130KVA(400VAC)/1214KVA(480VAC
AC: 3X380-500VAC 50/60Hz 1440A(400VAC)/1276A(480VAC)
DC: 465-740VDC 1647A(595VDC)
Air Cooled
4
ENCL: IP00 / OPEN TYPE
5
Tamb: 40°C/104°F
6
Protection class 1
7
SCCR: 100kA
Danfoss Ltd.22 Wycombe End,HP9 1NB, GB

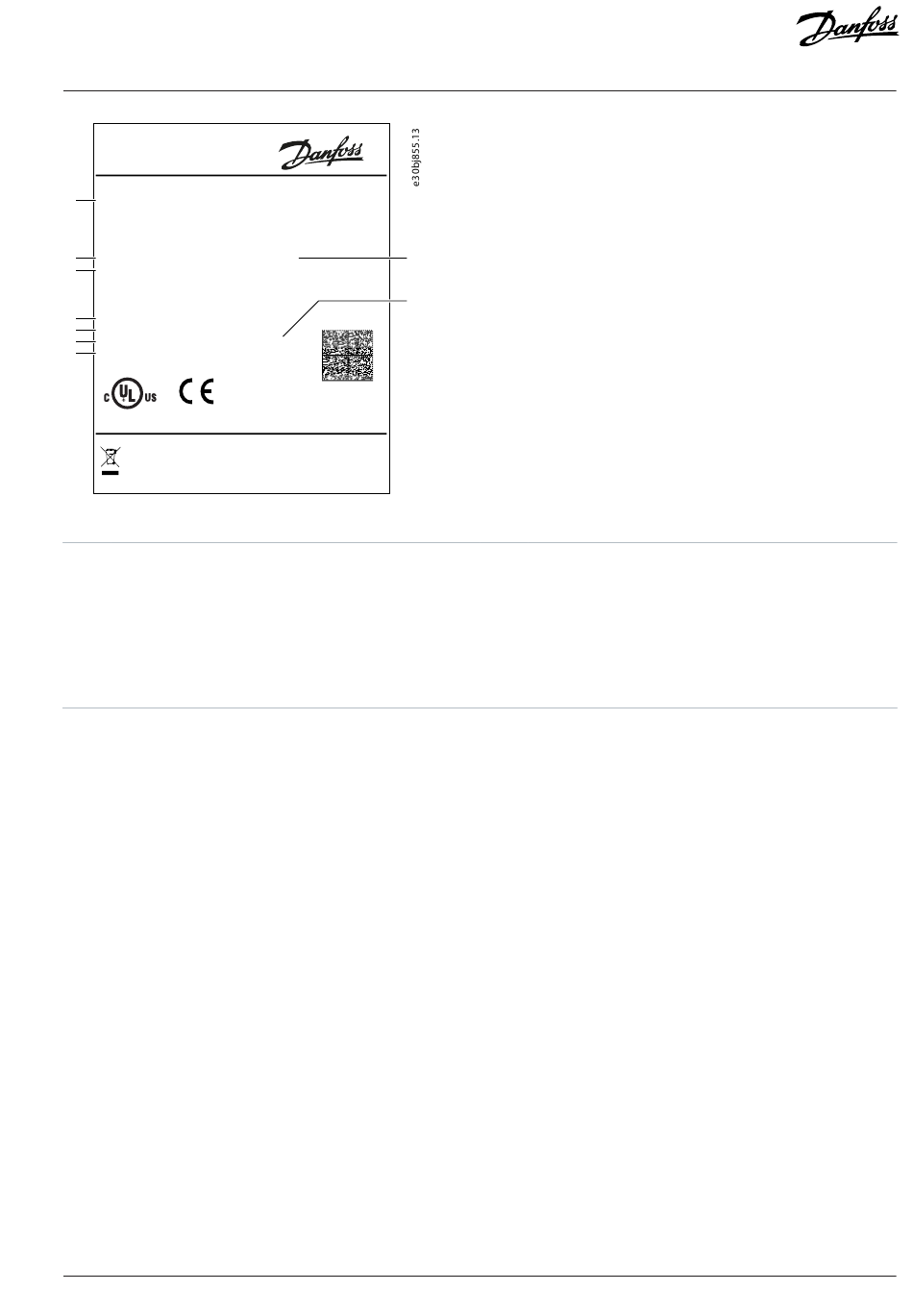

Figure 9: Product Label for iC7 Series Air-cooled System Modules
1
Model code of the product
3
Power, input, and output ratings
5
Temperature rating for ambient air
7
Short-circuit current rating
9
Frame designation
Danfoss Drives Oy © 2024.03
8
9
2XAR11
Danfoss A/S
DK-6430 Nordborg
www.danfoss.com
MADE IN FINLAND
2
Product number
4
Protection rating
6
Protective class
8
Serial number
