Design Guide | iC7 Series Air-cooled System Modules

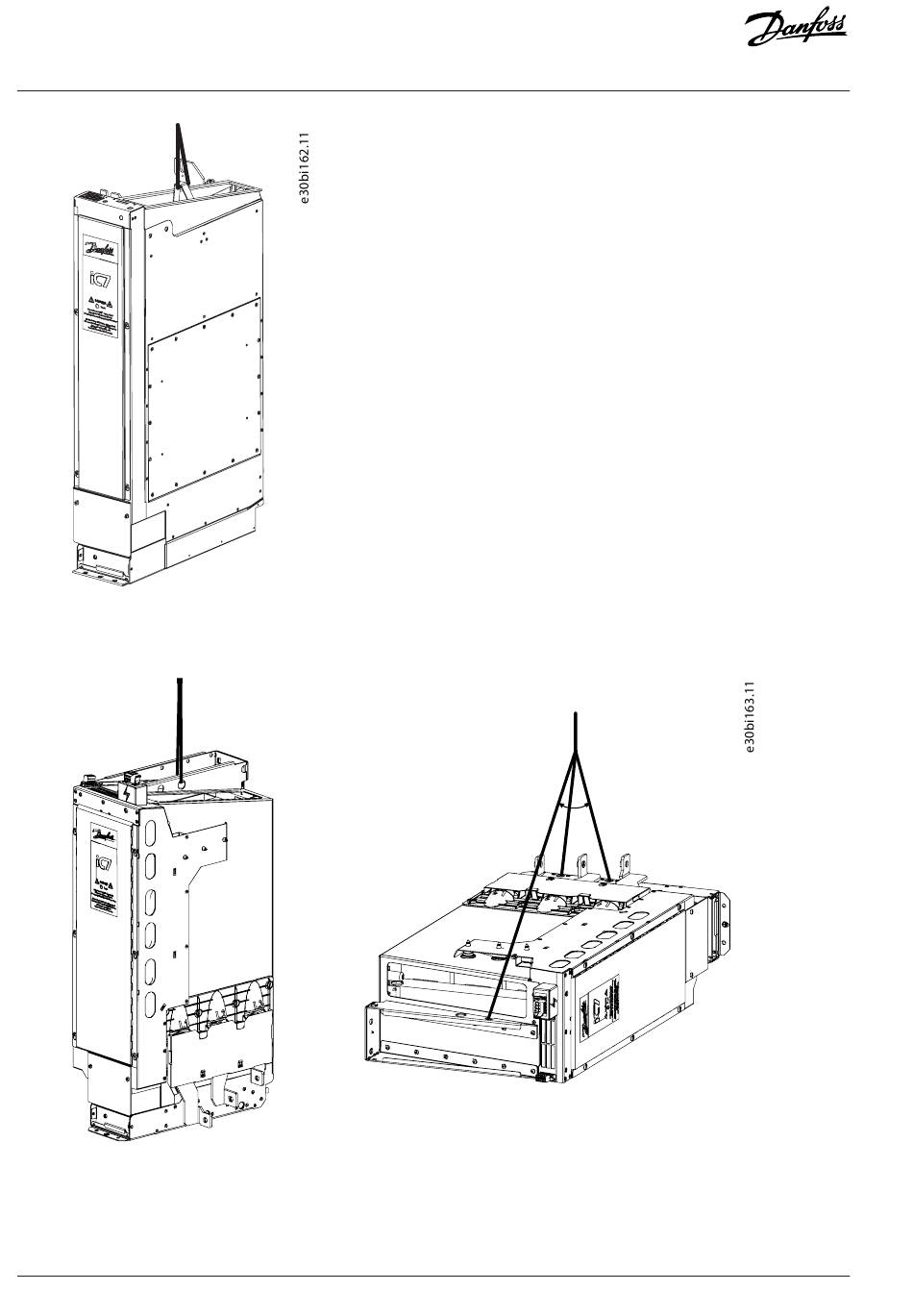

Figure 2: Lifting the Inverter Module, IM/IR10
4.
Lift the upper part of the LCL Filter for the AFE module vertically or horizontally.
Figure 3: Lifting the Upper Part of the LCL Filter, AFE
5.
When lifting the integration unit, make sure that the maximum lifting angle is correct (60° ±15°). Use the 4 lifting holes.
18
| Danfoss Drives Oy © 2024.03
45–75°
AJ389643111587en-000101 / 172F6361A
