Design Guide | iC7 Series Air-cooled System Modules

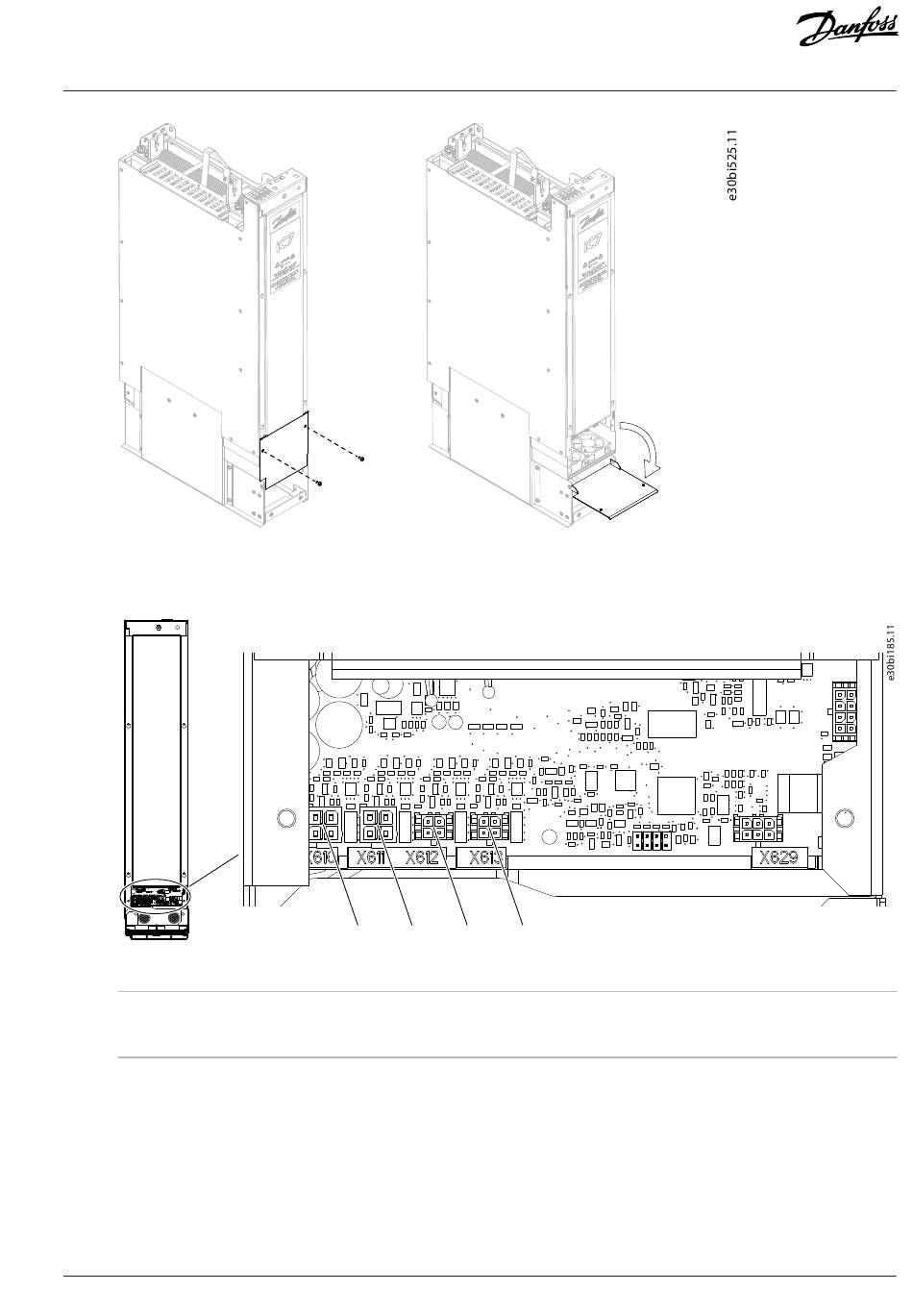

Figure 58: Releasing and Opening the Fan Cover
2.
Disconnect the fan supply cables from the fan power supply.
Figure 59: Fan Supply Terminals
X610 Supply to main cooling fan
X612 Supply to auxiliary compartment cooling fan
3.
Release and pull out the fan assembly.
Danfoss Drives Oy © 2024.03
X610
X611
X612
X613
X611 Supply to main cooling fan
X613 Supply to auxiliary compartment cooling fan
AJ389643111587en-000101 / 172F6361A |
77
