Design Guide | iC7 Series Air-cooled System Modules
Dimensions of an Option Board
10.2.29
150.3
(5.92)

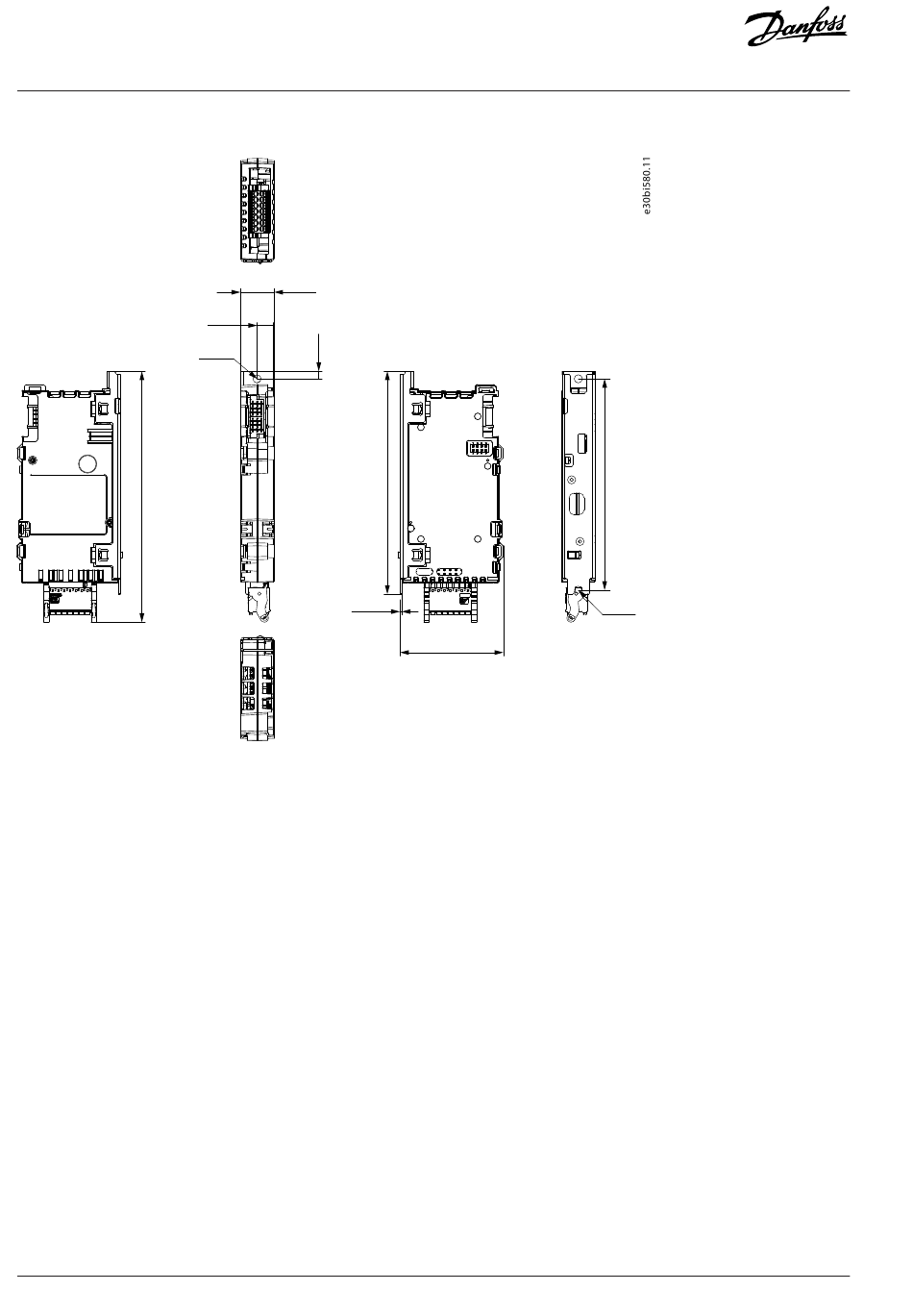

Figure 91: Dimensions of an Option Board in mm (in)
108
| Danfoss Drives Oy © 2024.03
20.15
(0.79)
9.8
(0.38)
Ø4.8
4.5
(0.19)
(0.18)
133.5
(5.25)
1
(0.04)
126.4
(4.98)
(0.16)
61.8
(2.43)
Ø4
AJ389643111587en-000101 / 172F6361A
