Design Guide | iC7 Series Air-cooled System Modules

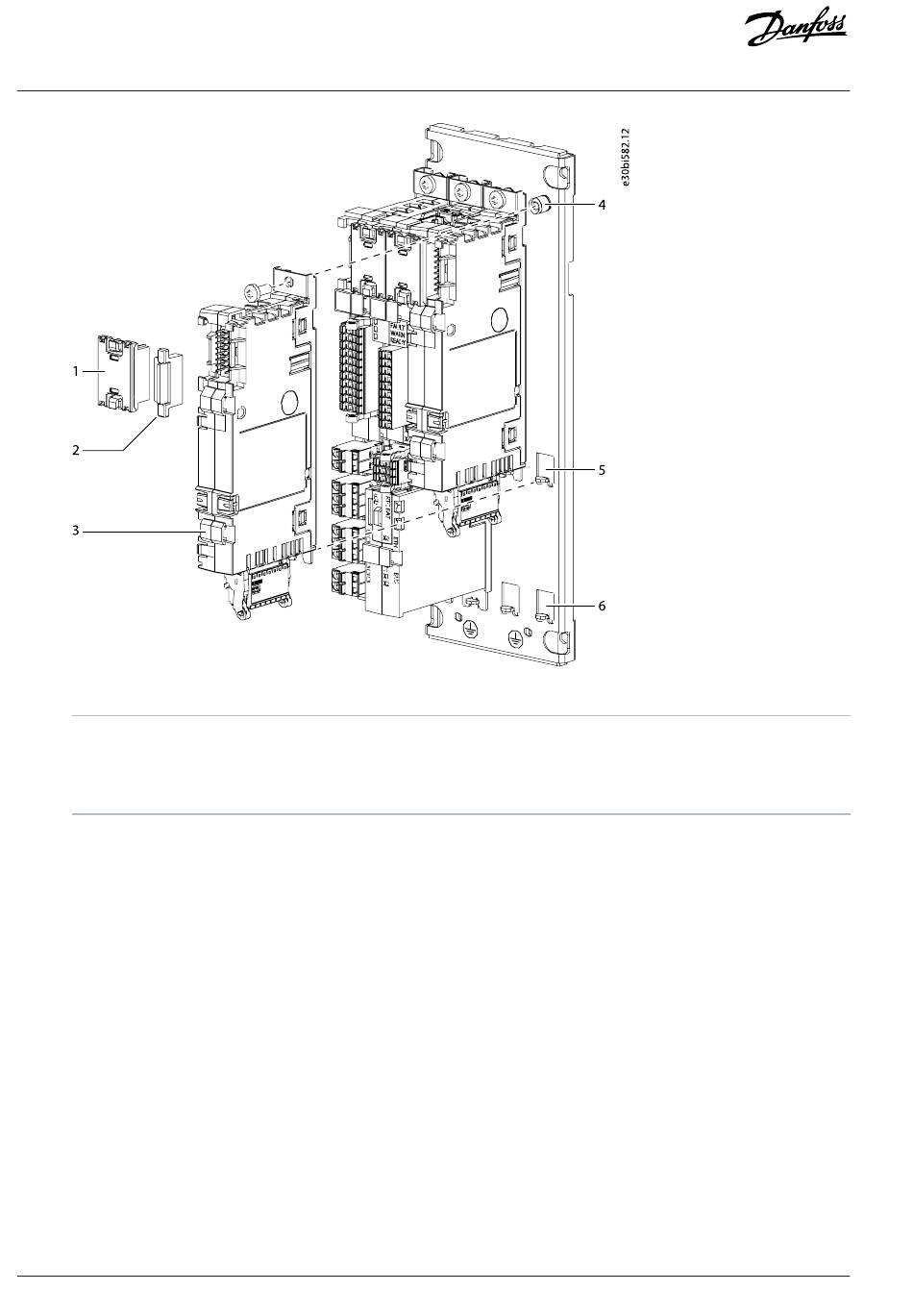

Figure 50: Installing a Board to the Modular Control Unit Mounting Plate
1
Option connector
3
Option board
5
Fixing point at the middle
3.
Use the screw to attach the board to the fixing point at the top.
4.
Attach an option connector to the newly installed board and the board next to it.
5.
Attach option terminal covers to the empty terminals.
Connecting the Fieldbus Cable and the Fiber Cables
8.14
1.
Connect the PLC to the Ethernet port X1 or X2 in the control board with a fieldbus cable.
2.
Connect the terminal X80 in the control board to the terminal X90 in the star coupler board with a fiber cable.
3.
Connect the terminals X301–X316 in the star coupler board to the power units with fiber cables.
70
| Danfoss Drives Oy © 2024.03
2
Option terminal cover
4
Fixing point at the top
6
Fixing point at the bottom
AJ389643111587en-000101 / 172F6361A
