Displaying Loop Controller Memory Maps
Display Items
Checking the Result Window (Overlap)
Code Color
UL Green
HS Blue
HR Pink
FT Orange
OT Dark
green
Displays a list of any CPU Unit I/O memory addresses that are overlapping (in-
cluding overlap in data written to CPU Unit) in the HMI I/F, User Link Table, or
Field Terminals to enable checking for overlapping addresses. This can be done
using either of the following two procedures.
• Searching for Overlapping Addresses One at a Time
Click the Find Overlapping Icon in the Memory Map Display. The first
address being used more than once will be displayed. Each time the icon is
clicked, the next overlapping address will be displayed.
• Searching for All Overlapping Addresses at Once

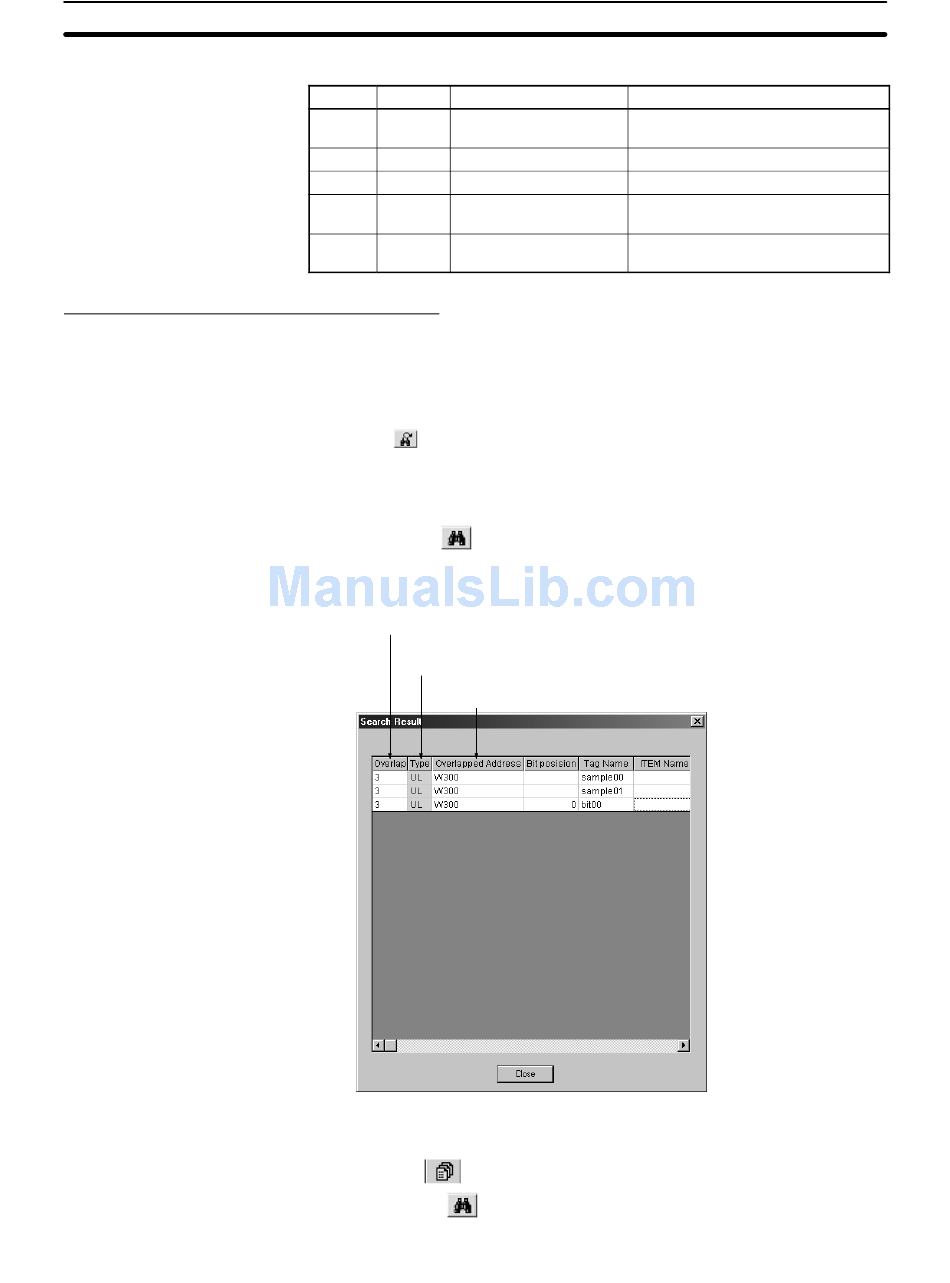

Next, click the
Search Result Window will be displayed showing all of the addresses in I/O
memory being used more than once.
Overlap: Displays the number of times the address has been used.
Type: Displays the type code (UL: User Link Table, HS: HMI Send Area,
HR: HMI Receive Area, FT: Field Terminal)
Note To display the Search Result Window treating Overlap (Recv. Area) (overlap in
data read from CPU Unit) as Overlap (including overlap in data written to CPU
Unit), click the
and then click the
Contents
User Link Table Address, Tag Name, ITEM Name,
(except field terminals) R/W, Link Number
HMI I/F Send Area Address, Tag Name, ITEM Name
HMI I/F Receive Area Address, Tag Name, ITEM Name
Field terminal Address, Tag Name, ITEM Name,
R/W
Other memory links Address, R/W
Find Overlapping (whole area) Icon. The following
Overlapping Address: Displays the address that is
being used more than once by the Loop Controller.
Checking for Overlapping of Reading attribute Icon,
Icon.
